AnyTone Ares User Manual

6
GETTING ACQUAINTED

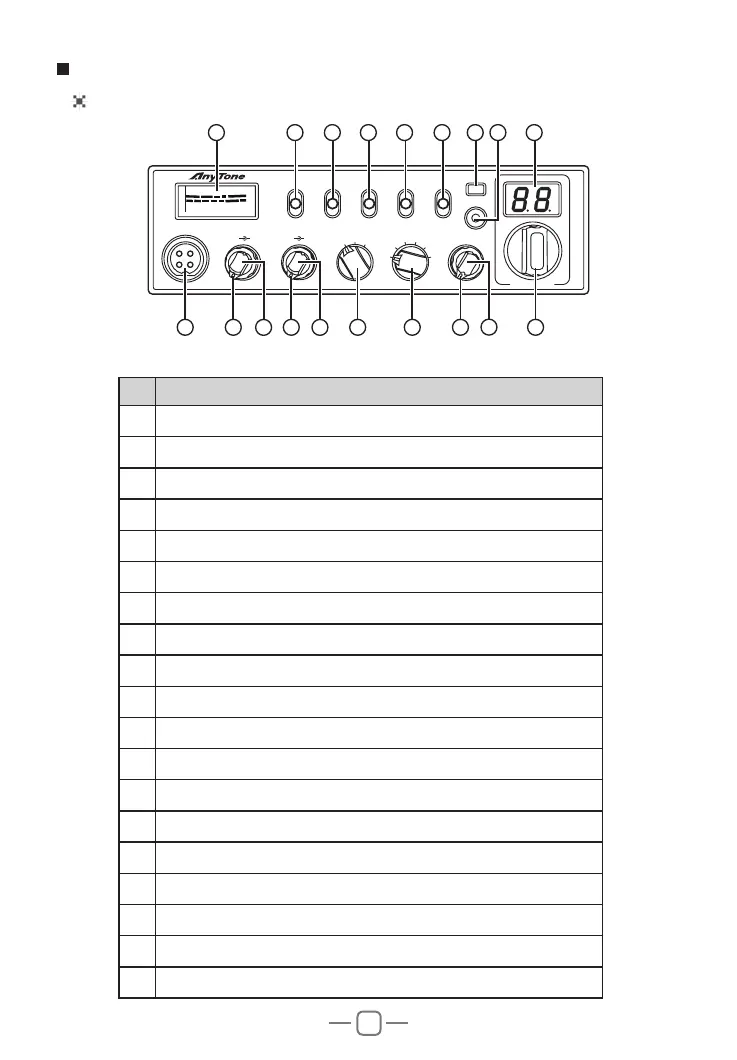

Front Panel
No. Functions
1
S-Meter
2 Control NB/ANL function on/off
3 Control power level
4 Control Monitor/10K on/off
5
Control LED brightness
6 Choose H and L band group
7 TX/RX indicator
8 PC programming port
9 Channnel dispplay
10 Mike connector
11 Power on/off volume level control
12 Squelch level control
13 Control Mike gain level
14 Control RF gain level
15 Choose AM/FM/PA mode
16 Choose working band
17 Control echo rebound times
18 Control echo duration time
19 Channel Switch
MIC
VOL
SQ
MIG
OFF
RFG
PA
FM
AM
B
C
D
E
TONE
ARES
DATA
RX/TX
BAND
HH
DIM
MON
RF PWR
HI
NB/ANL
ANL
OFF
LO
OFF
+1OK
M
LL
OFF
BAND
AF
TX
P
W
R
+30
dB
23
4
9
753
1
S G
1
1
10 15 16 1912 1814
2 3 4 5 6 7 98
11 13
17

AnyTone Ares Specifications

General

Bluetooth	No
GPS	No
Operating Modes	FM
Display	LCD
Waterproof	No
