5
When the ignition key is turned to ACC or ON(Start) position
7.
with the radio turned off, the power switch illuminates. The
illumination will be turned off when the ignition key is turned
to the off position.To turn on the unit, press the power switch
manually while it is illuminated. (While ignition key is at ACC or
ON position)
3
Initial Installation
When the ignition key is turned to ACC or ON position with the
8.
radio's power switch on, the unit turns on automatically and the
power switch will be lit. Turn the ignition key to OFF position or
manually turn the power switch off to shut down the radio.
Using extra cable,power consumption:5MAH.
9.
Without this function,user can turn on/off radio by Power knob.
10.
Ext. Power jack
Cigar-Plug connection
ACC terminal
Do not directly connect the transceiver to an AC outlet.
Use the supplied DC power cable to connect the transceiver
to a regulated power supply.
Do not substitute a cable with smaller gauge wires.

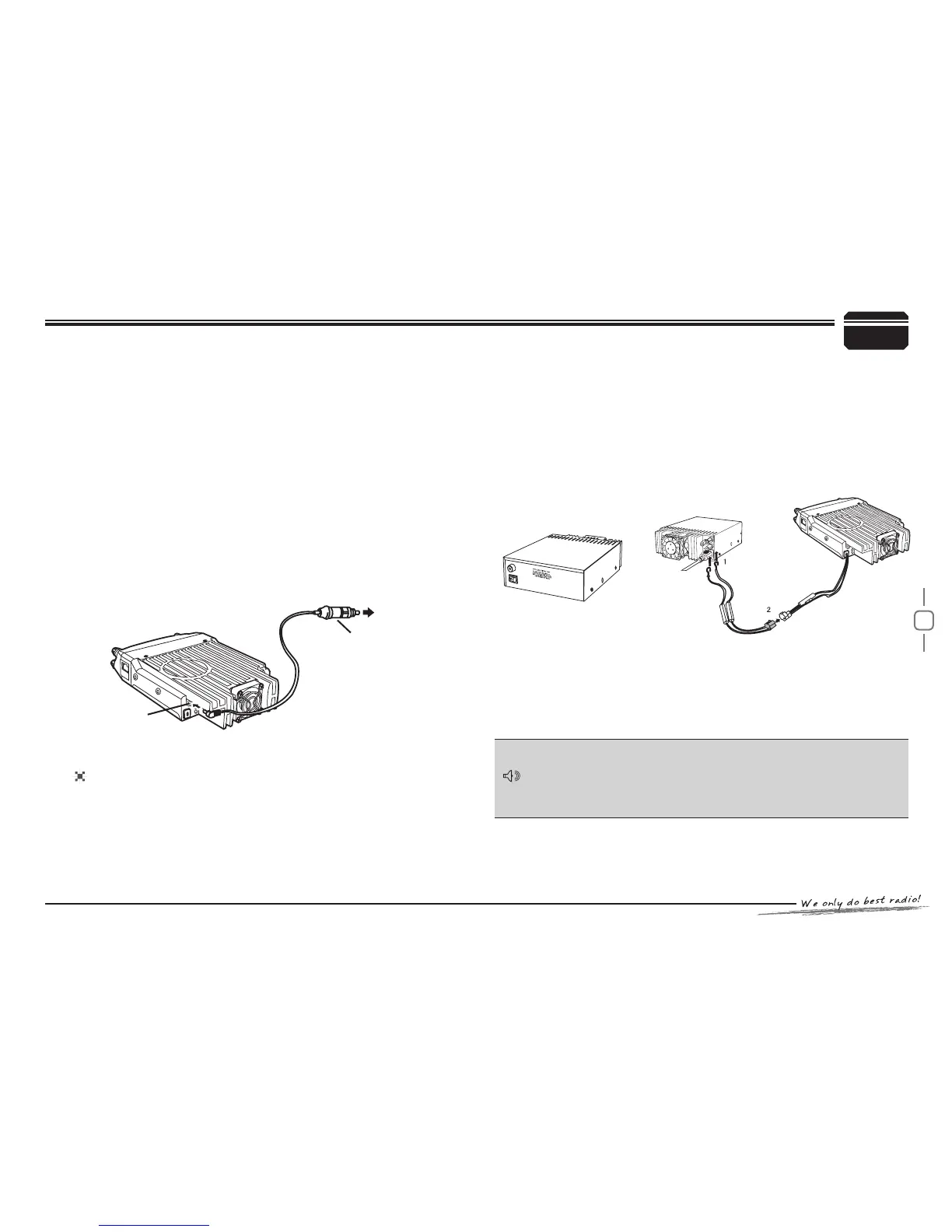

FIXED STATION OPERATION
In order to use this transceiver for fixed station operation, you
will need a separate 13.8V DC power supply (not included) , power
supply( QRP-01) as optional accessories. Please contact local
dealer to require.
The recommended current capacity of your power supply is 12A.
Before connecting the DC power to the transceiver, be sure to
switch the transceiver and the DC power supply OFF.
Do not plug the DC power supply into an AC outlet until you
make all connections.
Regulated power supply (QRP-01)
DC power cable with fuse holder (QPL-01)
Black
Red
Regulated
power supply
(QRP-01)
Connect the DC power cable to the regulated DC power supply
1.
and ensure that the polarities are correct. (Red: positive,
Black:negative).
Connect the transceiver's DC power connector to the
2.
connector on
the DC power cable.
Press the connectors rmly together until the locking tab
clicks.
NOTE
