AnyTone AT-588UV User Manual

17
7

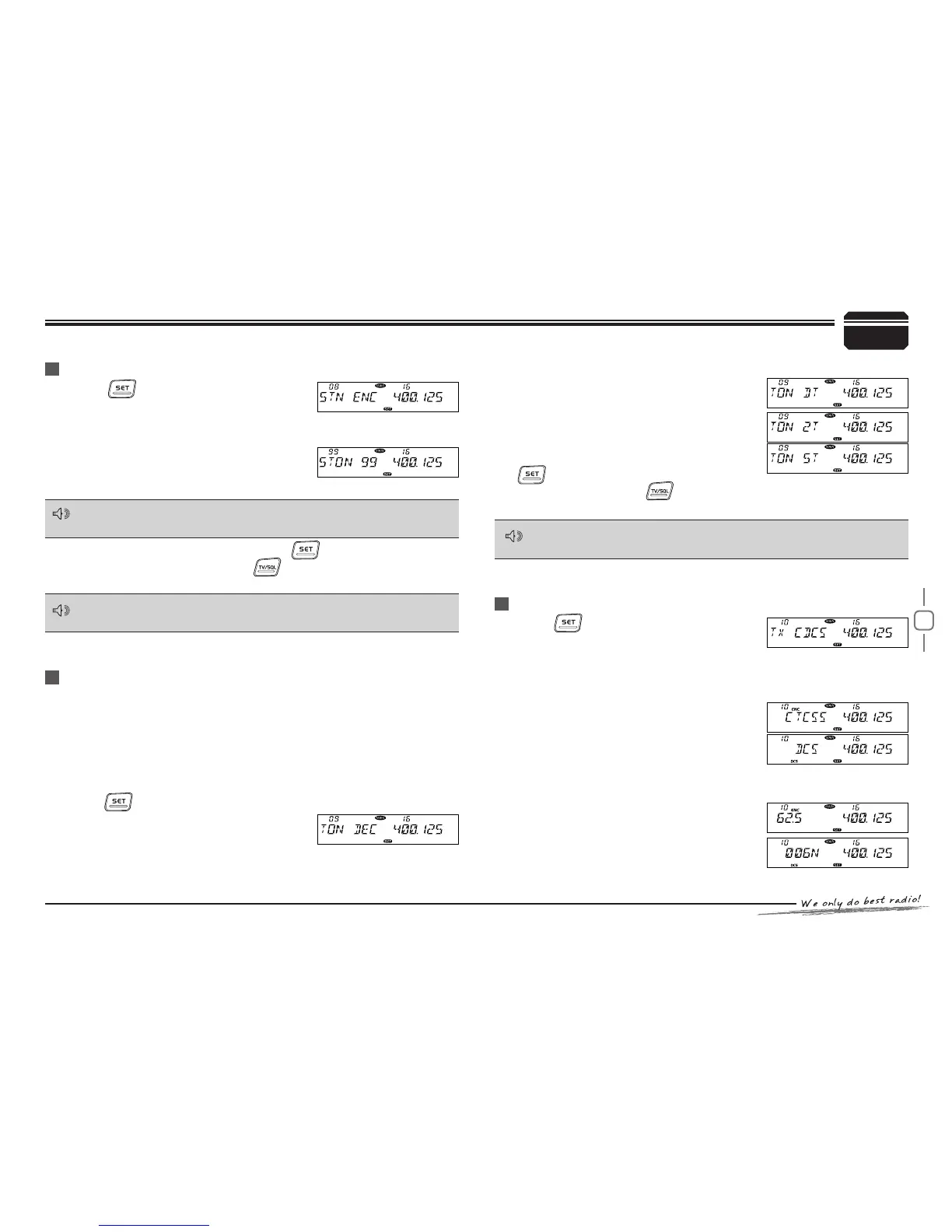

General Setting
Press
1.
key to enter function menu.
Turn the Main band selector knob to
2.
choose No. 08 menu. the LCD displays "5TN ENC"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to
4.
choose wanted value.
Available Values: 0-99, total 100 groups.
This transceiver has 3 optional signaling: DTMF/5Tone/2Tone,those
signaling function similar as CTCSS/DCS signaling. When the receiver
adds an optional signaling, the caller shall transmit matching signaling.
DTMF and 5Tone signaling can be applied for other advanced features
such as ANI, PTT ID, group call, select call, remotely stun, remotely kill
waken…etc
Press
1.
key to enter function menu.
Turn the Main band selector knob to
2.
choose No. 09 menu. the LCD displays
"TON DEC"
Press the Main band selector knob to enter function setup.
3.
Press
1.
key to enter function menu.
Switch the Main band selector knob to
2.
choose No 10 menu, the LCD displays "TX CDCS"
Press the Main band selector knob to enter function setup.
3.
Switch the Main band selector knob to choose wanted value
4.
OFF: Turn off CTCSS/DCS encode.
CTCSS: Choose CTCSS encode.
DCS: Choose DCS encode.
Press the Main band selector knob to enter the menu.
5.
Switch the Main band selector knob to choose wanted CTCSS, DCS
6.
code.
CTCSS: 62-254.1Hz, and one self-dene
group, total 52 groups
DCS: 000N-777I, total 1024 groups
5TONE ENCODE SELECT
ADD OPTIONAL SIGNALING
CTCSS ENCODE SETUP
Press the Main band selector knob or
5.
key to store value and
back to function menu. Press key or hold selector knob for
over 0.5 second to store setup and exit.
if the 5TONE encode are programmed with name, the LCD will display
correspondent name.
After choose the 5TONE encode group. Press PTT will transmit selected
code.
The working of optional signaling shall be work associated with the squelch
mode setup. (Refer to Squelch Mode setup in page 19)
Switch the Main band selector knob to choose wanted value
4.
DTMF: means DTMF signaling is added.
2TONE: means DTMF signaling is added.
5TONE: means DTMF signaling is added.
OFF: Turn off optional signaling
Press the Main band selector knob or
5.
key to store value and back to
function menu.Press key or hold selector knob for over 0.5
second to store setup and exit.
7
NOTE
NOTE
NOTE

AnyTone AT-588UV Specifications

General

Number of Channels	200
Operating Voltage	13.8V DC ±15%
Operating Temperature	-20°C to +60°C
Frequency Stability	±2.5 ppm
Modulation	FM
Weight	1.2 kg
Antenna Impedance	50Ω
Frequency Range	136-174 MHz
Channel Spacing	25 kHz / 12.5 kHz
Modulation Type	F3E
Current Consumption	≤10A
