AODELAN E2 - Remote Flash Synchronization

Remote Flash Synchronization
1. Synchronize and remotely control the
ash lights with built-in AODELAN
radio system.

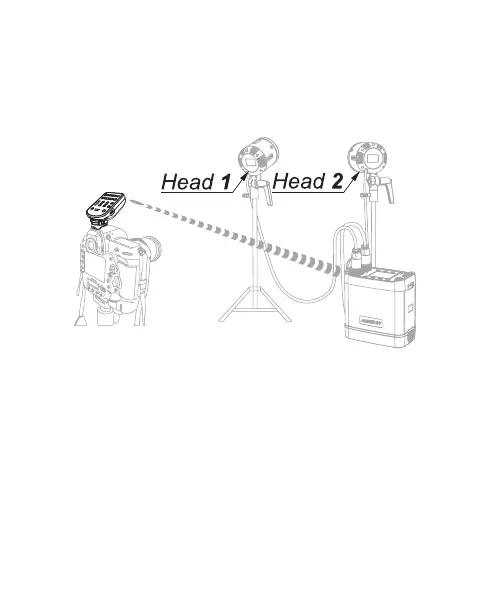

(Figure 5)
(Figure 5)

Connect the E2 to the camera.
(Via hot shoe or ash sync cable.)

Set the ash lights to synchronization
via radio.

Set the E2 to Transmit Mode,
Indicator [7] <TRANSMIT> blinks
green.
• 24 •
-
+
