Apach E Series - Prover Description and Controls; Prover Control Panel

EN
89
Prover
controls
Steam
generator
(optional)
Recirculation
fan
Terminal
board
Water
solenoid and
inlet
Lamp
Water
Heater heating
element
Line switch
Steam
switch
Light swithc

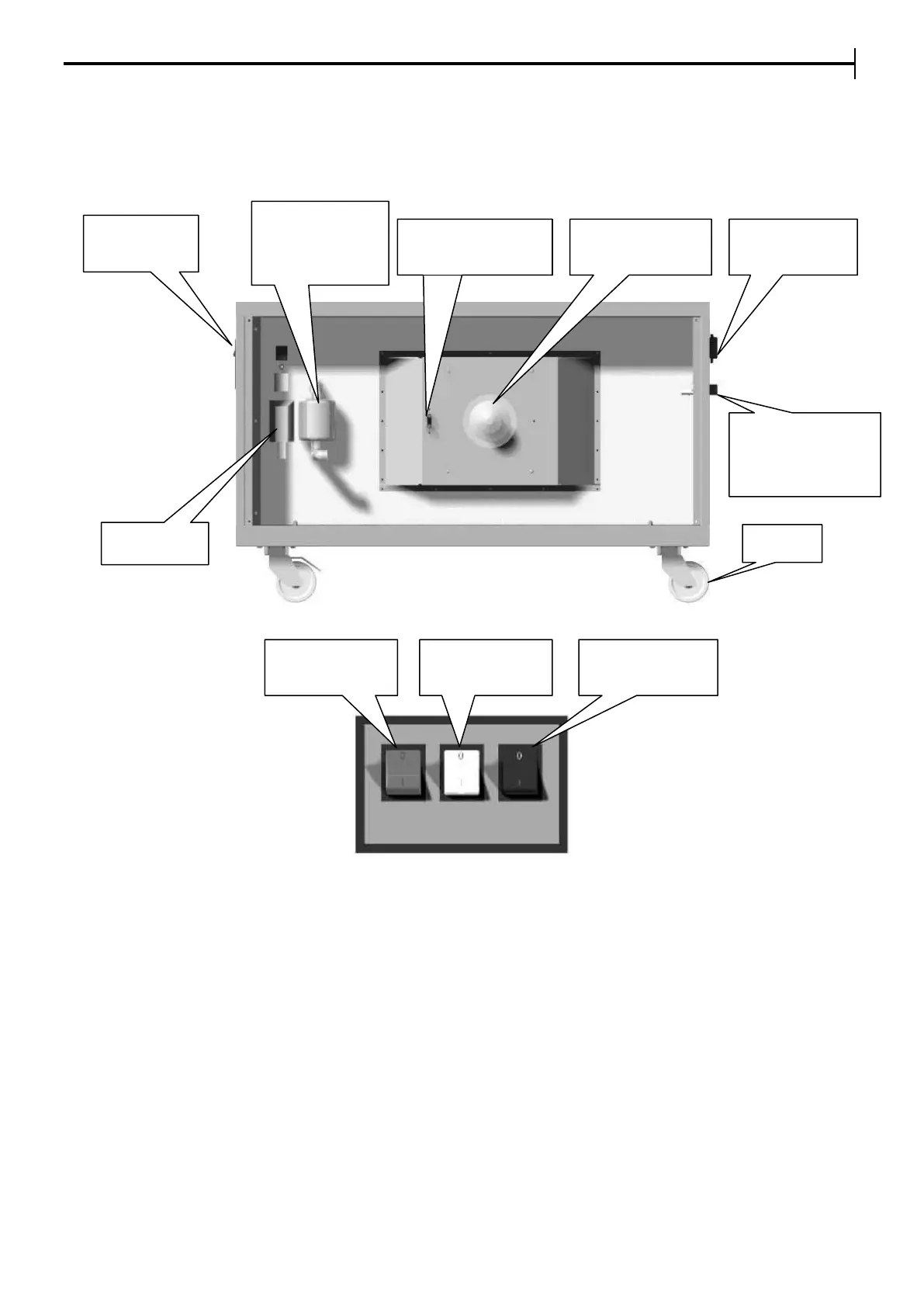

DESCRIPTION OF THE PROVER AND RELATIVE COMMANDS
The control panel is situated on the right-hand front upright of the prover and inside the prover on the left-
hand wall there is a hygro-thermostat to regulate the temperature and the humidity (optional)
Chamber right side – components side
Control panel
