APC SMART-UPS 750 User Manual

2
Product Description
The APC
™
by Schneider Electric Smart-UPS
™
is a high performance uninterruptible power supply
(UPS). The UPS provides protection for electronic equipment from utility power blackouts,
brownouts, sags, and surges, small utility power fluctuations and large disturbances. The UPS also
provides battery backup power for connected equipment until utility power returns to safe levels or
the batteries are fully discharged.
This user manual is available on the APC by Schneider Electric Web site, www.apc.com.
1: INSTALLATION
The User Manual and Safety Guide are accessible on the supplied User Manuals CD and on the
APC by Schneider Electric web site,
www.apc.com
Unpack
.
Attention: Read the safety instruction sheet before installation.
Inspect the UPS upon receipt. Notify the carrier and dealer if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
Check the package contents:
Attention: The UPS comes with battery disconnected.
 UPS
 UPS literature kit containing:
 Product documentation, safety and warranty information
 Smart-UPS

User Manuals CD
 PowerChute
™
CD
 Serial and USB communication cables
 Two jumper cables

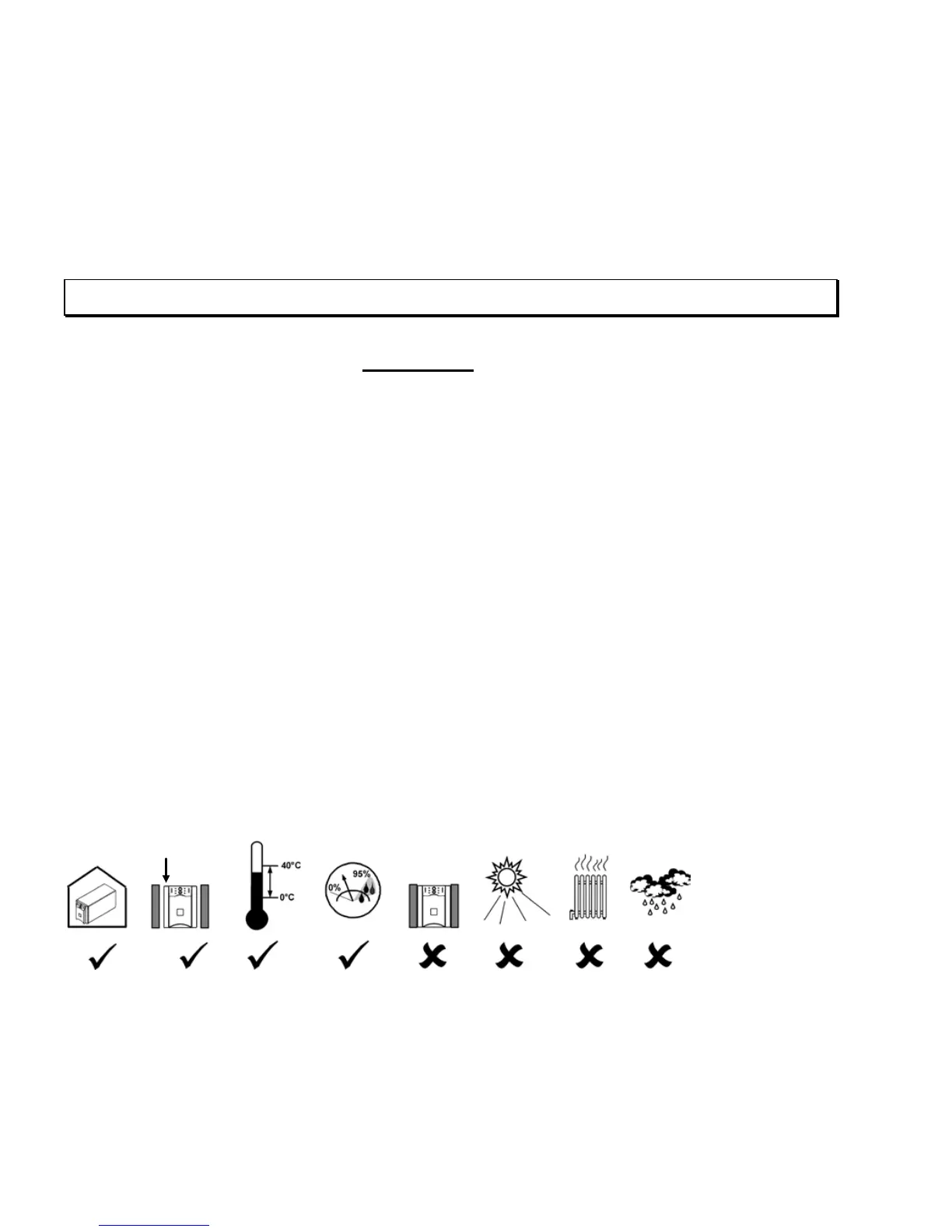

Position the UPS
0-95%
1 in (2.5 cm)
0-40°C

APC SMART-UPS 750 Specifications

General

Output Power Capacity	500 Watts / 750 VA
Nominal Output Voltage	120V
Nominal Input Voltage	120V
Waveform Type	Sine wave
Output Connections	(6) NEMA 5-15R
Control panel	LED status display with On Line: On Battery: Replace Battery and Overload indicators
Form Factor	Tower
Battery Type	Lead-acid battery
Transfer Time	6 ms typical
Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Typical Recharge Time	3 hours
Interface Port(s)	USB
Output Voltage	120V
Communication Ports	USB
