APC SMART-UPS 750 User Manual

Smart-UPS 750-3000 VA 120/208/230 Vac Rack-mount4
Operation
Connect Equipment to the UPS
Note: The UPS will charge to 90% capacity in the first three hours of normal operation. Do
not expect full battery runtime capability during this initial charge period.
1. Connect equipment to the outlets on the rear panel of the UPS. Do not use extension cords; plug
equipment directly into the UPS.
2. Connect the UPS to the building utility power. Connect the UPS to a two-pole, three-wire,
grounded source only.
3. Press the
ON/OFF button on the front panel of the UPS to apply power to the unit and all connected
equipment.
4. To use the UPS as a master on/off switch, turn on all the equipment that is connected to the UPS.
See “UPS Settings” on page 7 for information on how to configure the outlet groups.

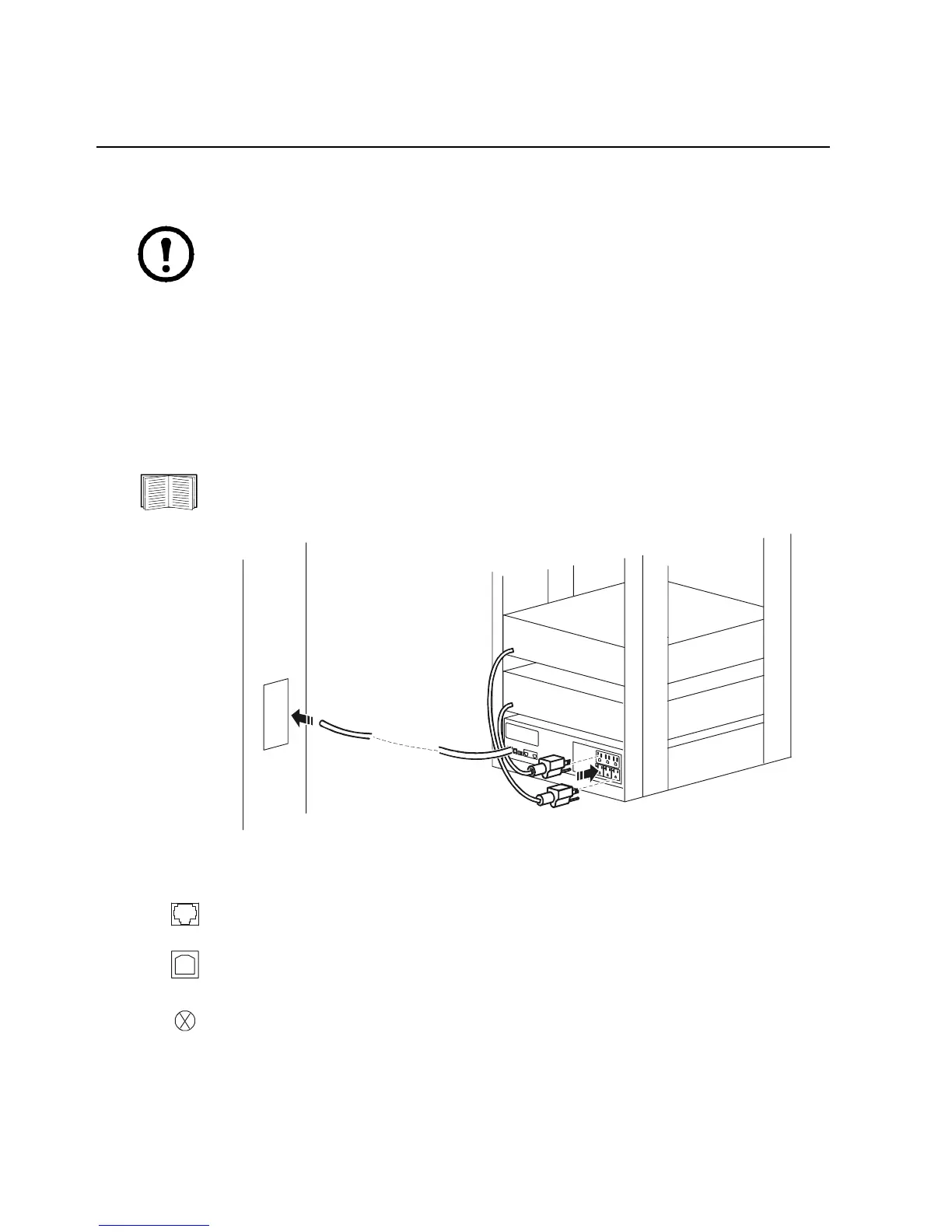

Rear Panel Features
Serial port: Connect to a computer to use power management software.
USB port: Connect to a computer to use power management software.
Ground Screw: Connect the ground leads on transient voltage devices to the
chassis ground screw(s), located on the rear panel of the UPS.
su0628a

APC SMART-UPS 750 Specifications

General

Output Power Capacity	500 Watts / 750 VA
Nominal Output Voltage	120V
Nominal Input Voltage	120V
Waveform Type	Sine wave
Output Connections	(6) NEMA 5-15R
Control panel	LED status display with On Line: On Battery: Replace Battery and Overload indicators
Form Factor	Tower
Battery Type	Lead-acid battery
Transfer Time	6 ms typical
Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Typical Recharge Time	3 hours
Interface Port(s)	USB
Output Voltage	120V
Communication Ports	USB
