5Smart-UPS 750-3000 VA 120/208/230 Vac Rack-mount
Display Interface
Overview
Using the display interface
Use the UP and DOWN buttons to scroll through the main menu options. Press ENTER to view the sub-
menus under each main menu option. Press ESCAPE to exit a sub-menu and return to a main menu.
Standard menus
The Standard menus are the most commonly used menus for the UPS.


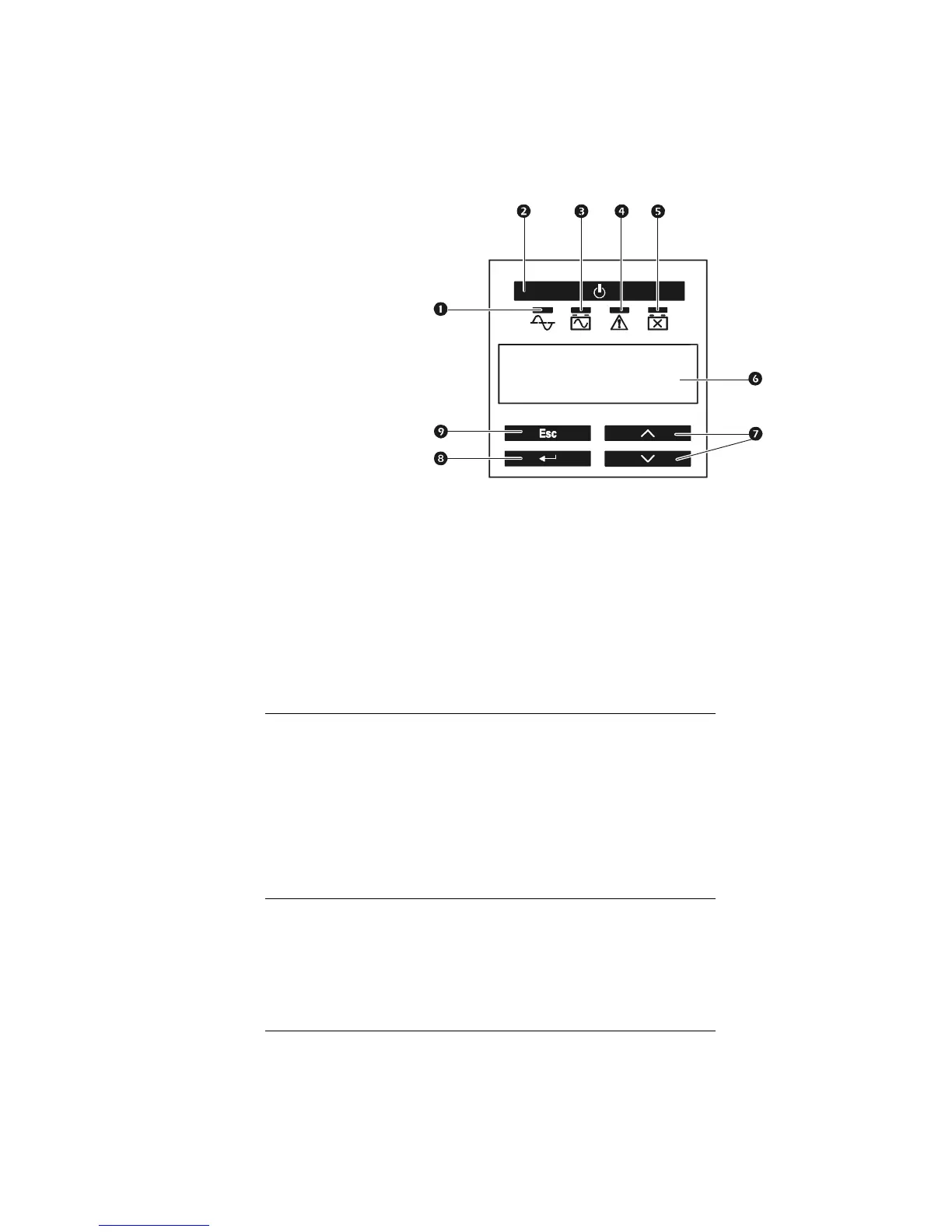

Online indicator

UPS Output On/Off button

On Battery indicator

Fault indicator

Replace Battery indicator

Display screen

UP and DOWN buttons

ENTER button

ESCAPE button
Menu General Functions
Status View basic information about the UPS:
• Operating mode
• Efficiency of the UPS
• Information about the load
• Battery capacity
• Estimated runtime
• Input and output voltage and frequency
• Information about the last transfer to battery power
• Self-test results
• SmartSlot Card information
Configuration Configure the settings for the UPS:
• Language
• Local power quality: Good, Fair, Poor
• Choose Standard or Advanced menus
• UPS Test settings
• Reset to Factory Defaults
• Battery installation date
Test & Diags Use the Test & Diags menu to have the UPS perform a
self-test.
su0343a
A
PC B
y
Schneider
Electric

APC SMART-UPS 750 Specifications

General

Output Power Capacity	500 Watts / 750 VA
Nominal Output Voltage	120V
Nominal Input Voltage	120V
Waveform Type	Sine wave
Output Connections	(6) NEMA 5-15R
Control panel	LED status display with On Line: On Battery: Replace Battery and Overload indicators
Form Factor	Tower
Battery Type	Lead-acid battery
Transfer Time	6 ms typical
Input Frequency	50/60 Hz
Output Frequency	50/60 Hz
Typical Recharge Time	3 hours
Interface Port(s)	USB
Output Voltage	120V
Communication Ports	USB
