APC Smart-UPS RC User Manual

User Manual Smart-UPS RC XLI/XLICH/XLI-CC 1000/2000/3000 VA 220/230/240 Vac Tower/Rack-Mount 4U 6
Installation
Units may vary in appearance from those depicted in this manual.
Always place UPS above XLBPs in rack-mount configuration.
Connect all battery strings. Failure to do so may cause equipment damage.
Refer to Physical Specifications in this manual and the Safety Guide before installing units.
Unit is heavy. Batteries must be removed from unit prior to installation.
su0229asu0272a

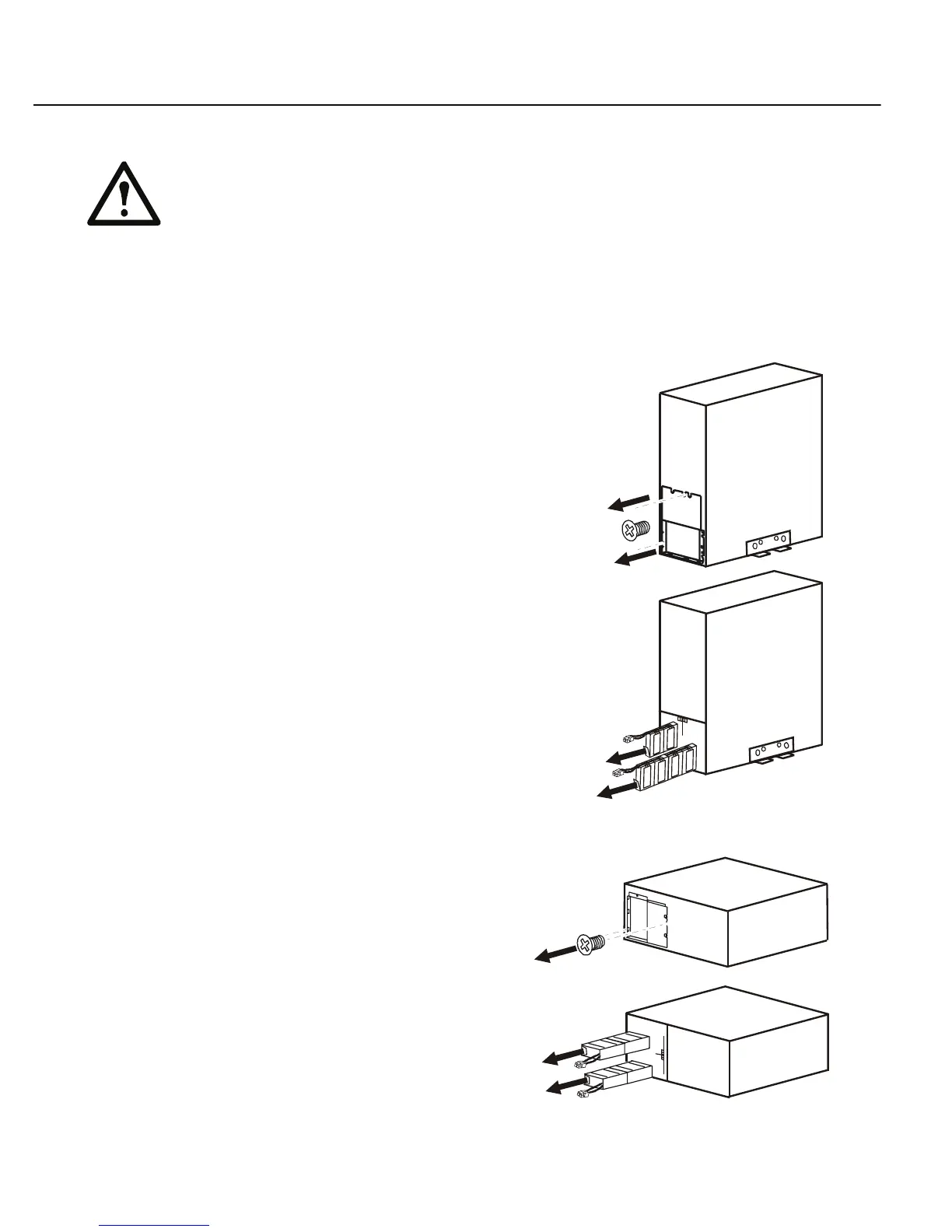

Remove screws securing battery compartment door.
To remove door, slide door up.
su0238a
x2
Remove screws securing battery compartment door.
To remove door from UPS, slide door to the right.

APC Smart-UPS RC Specifications

General

Nominal Output Voltage	230V
Nominal Input Voltage	230V
Typical Recharge Time	3 hours
Interface Port(s)	SmartSlot, USB
Type	Line Interactive
Input Voltage Range	160 - 286V
Output Voltage	230V
Form Factor	Tower
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Output Connections	IEC 320 C13
Frequency	50/60 Hz +/- 3 Hz
Communication Ports	USB
Input Connections	IEC-320 C14
