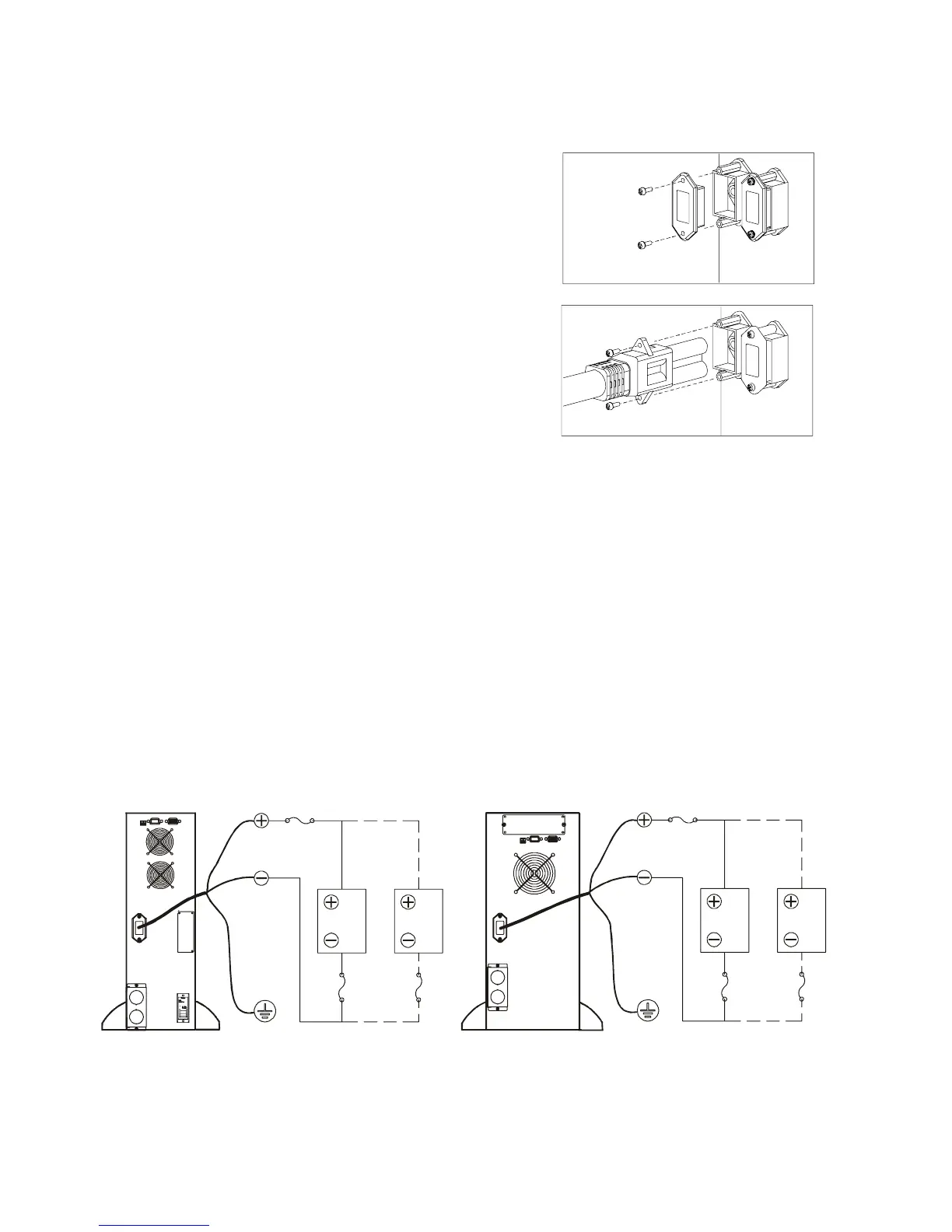

Smart-UPS SRC 5000/6000/8000/10000 VA8
1. Set the circuit breaker switch on the rear panel of
external battery pack to the OFF position.
2. Remove battery connector cover on both the UPS and
the battery pack. Keep the screws.
3. Plug
the XLBP cable into the UPS external battery
pack receptacle.
4. Secure the cable on the UPS and the battery pack
with the screws removed in step 2.
5. Set
the circuit breaker switch on the rear panel of the
battery pack to the ON position.
Third party battery solution: UXI and UXICH models only
Batteries must be Sealed Lead-Acid type.
Use 50 A, 250 VDC fuses with an interrupt rating of > 20,000 A.
If a non-APC battery pack is used, a 192 V battery string should be connected to the UPS with the use of
the enclosed battery cable.
5000/6000 VA: Requires a 192 V battery system when using a third party battery solution.
8000/10000 VA: Requires a 240 V battery system when using a third party battery solution.
Connect ground and battery system
1. Connect the ground wire to each battery enclosure.
2. Connect the positive (red), and negative (black) wires to the positive and negative terminals on
each external battery system. Ensure that the proper polarities are connected.
3. Insert the cable connectors into the battery connector on the back of the UPS.
Oem0070a
oem0072a
240 V 240 V
oem0071a
192 V 192 V
To Next Page
