Smart-UPS SRC 5000/6000/8000/10000 VA6

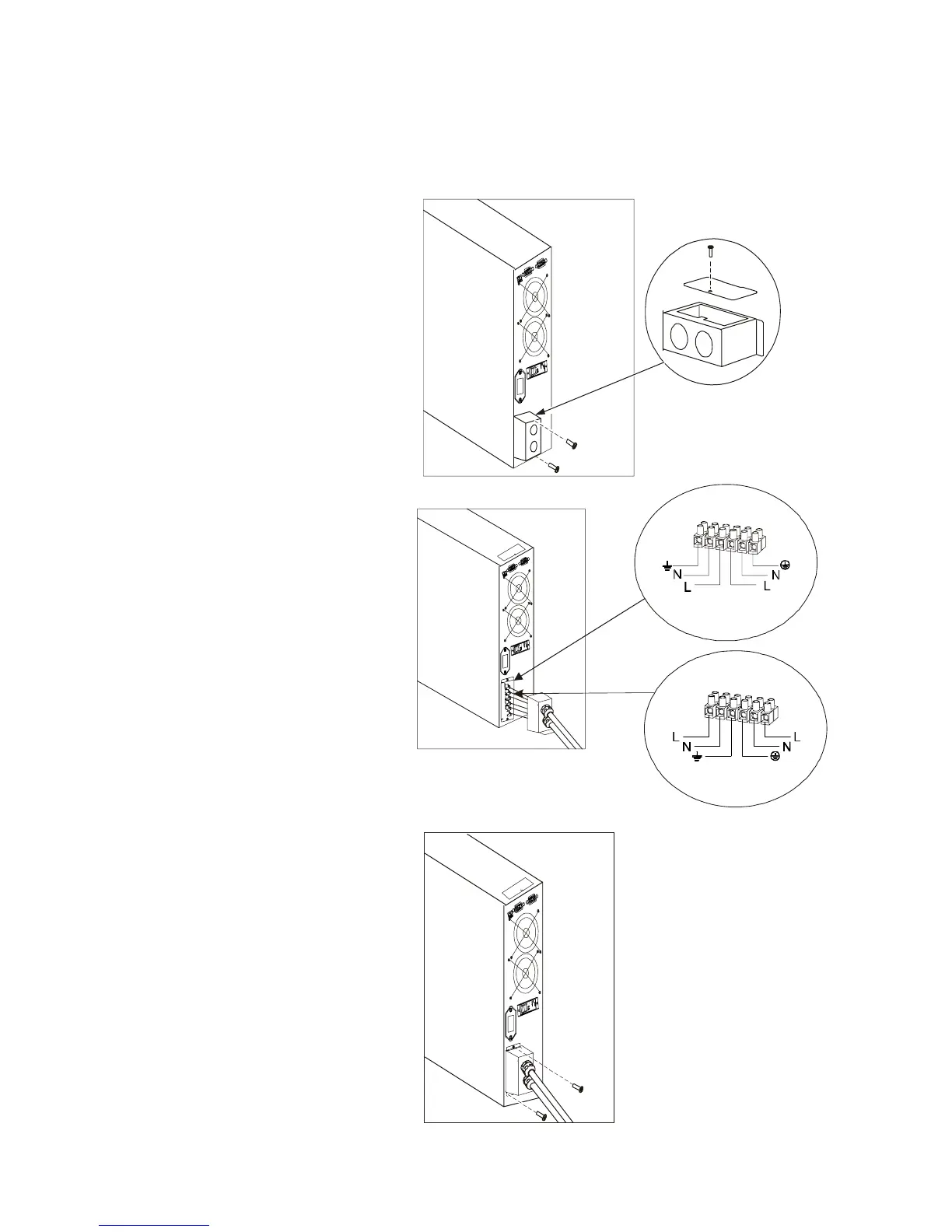

1. Switch the UPS input circuit breaker and the utility circuit breakers OFF.
2. Remove the two screws that secure the input access panel to the UPS.
3. Remove the screw that secures
the small panel located on the
top of the access panel. Remove
the small panel.
4. Remove one
circular knockout panel.
5. Insert the wires through the
access panel to the
terminal block.
6. Connect the terminal block
ground wire first,
(green=ground, brown=hot,
blue=neutral).
7. Secure the small panel from the
top of the access panel with the
use of the screw removed
in step 3.
8. Secure the access panel to the
UPS using the two screws
removed in step 2.
oem0079a
oem0080a
OUTPUT
INPUT
OUTPUT INPUT
8000/10000 VA
5000/6000 VA
oem0081a
To Next Page
