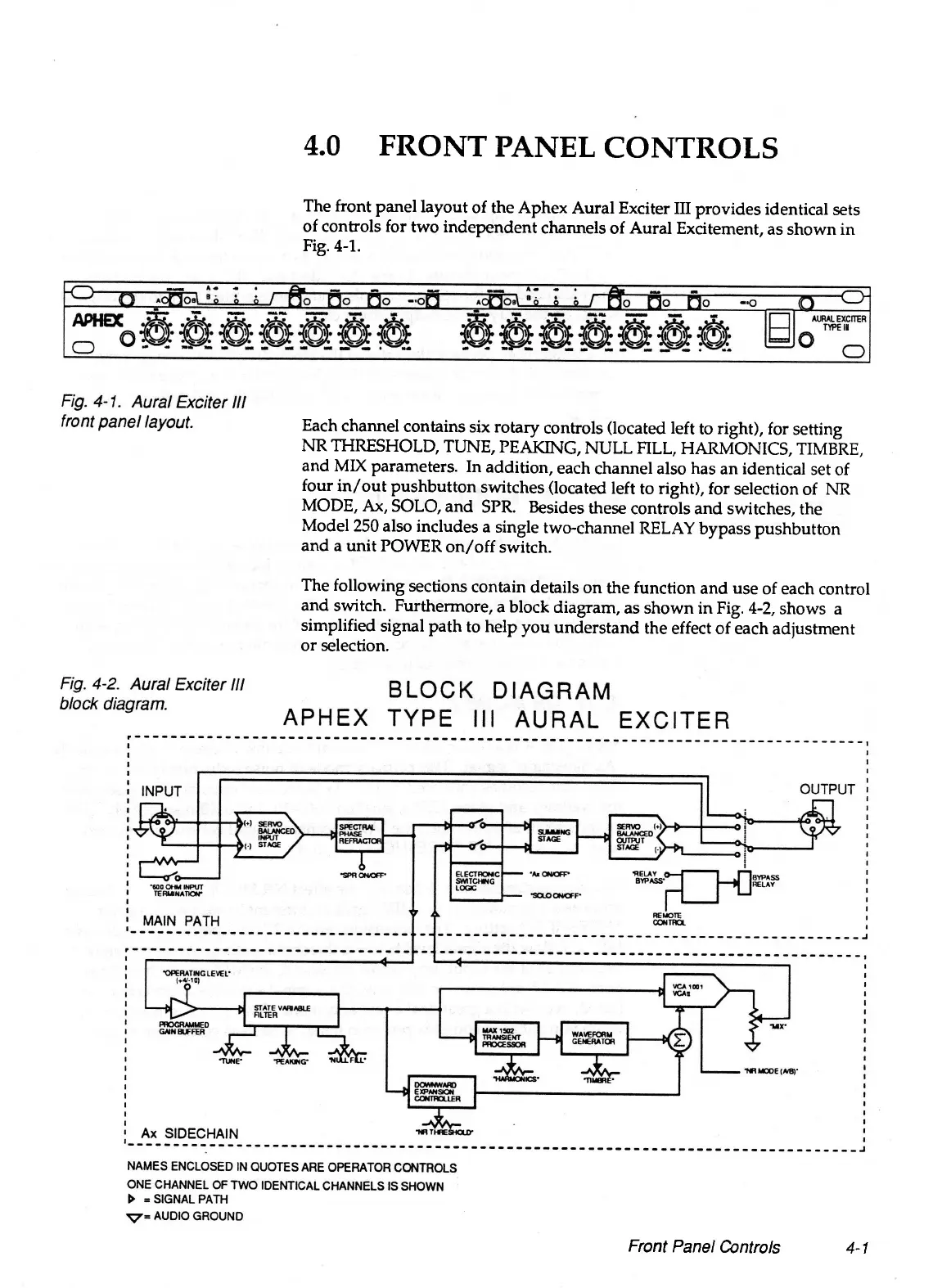

4.0 FRONT PANEL CONTROLS
The front panel layout of the Aphex Aural Exciter III provides identical sets
of controls for two independent channels of Aural Excitement, as shown in
Fig. 4-1.
Front Panel Controls
4-1
Each channel contains six rotary controls (located left to right), for setting
NR THRESHOLD, TUNE, PEAKING, NULL FILL, HARMONICS, TIMBRE,
and MIX parameters. In addition, each channel also has an identical set of
four in/out pushbutton switches (located left to right), for selection of NR
MODE, Ax, SOLO, and SPR. Besides these controls and switches, the
Model 250 also includes a single two-channel RELAY bypass pushbutton
and a unit POWER on/off switch.
The following sections contain details on the function and use of each control
and switch. Furthermore, a block diagram, as shown in Fig. 4-2, shows a
simplified signal path to help you understand the effect of each adjustment
or selection.
