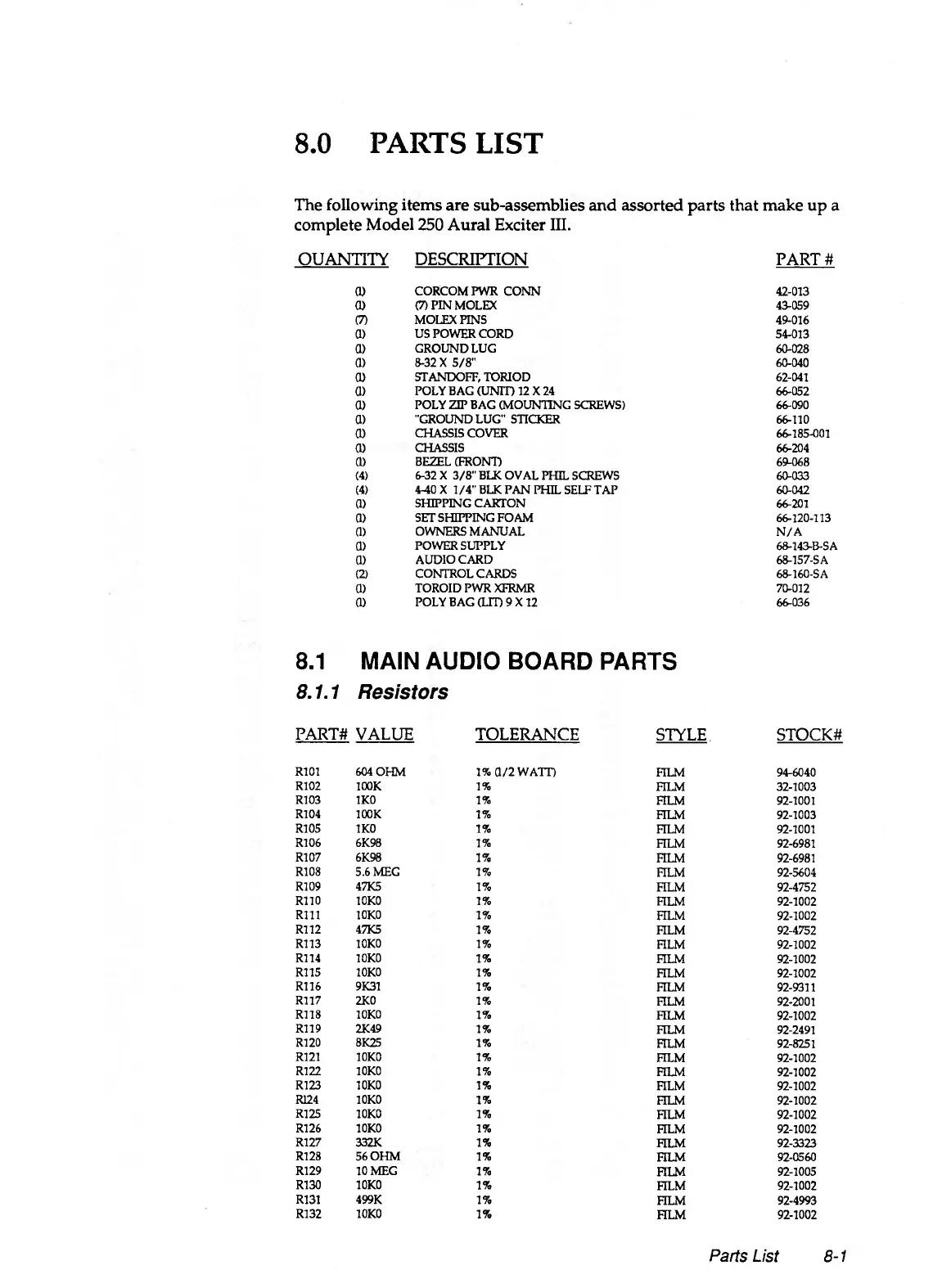

8.0 PARTS LIST
The following items are sub-assemblies and assorted parts that make up a
complete Model 250 Aural Exciter III.
QUANTITY DESCRIPTION PART#
© CORCOMPWR CONN 42-013
(1) (7) PIN MOLEX 43-059
(7) MOLEX PINS 49-016
0) US POWER CORD 54-013
Q) GROUND LUG 60-028
0) 8-32X5/8" 60-040
(1) STANDOFF, TORIOD 62-041
0) POLY BAG (UNIT) 12 X 24 66-052
0) POLY ZIP BAG (MOUNTING SCREWS) 66-090
Q) "GROUND LUG" STICKER 66-110
(1) CHASSIS COVER 66-185-001
© CHASSIS 66-204
© BEZEL (FRONT) 69-068
(4) 6-32 X 3/8" BLK OVAL PHIL SCREWS 60-033
(4) 440 X 1/4" BLK PAN PHIL SELF TAP 60-042
(1) SHIPPING CARTON 66-201
© SET SHIPPING FOAM 66-120-113
0) OWNERS MANUAL N /A
0) POWER SUPPLY 68-143-B-SA
© AUDIO CARD 68-157-SA
(2) CONTROL CARDS 68-160-SA
(1) TOROID PWR XFRMR 70-012
© POLY BAG (LIT) 9 X 12 66-036
8.1 MAIN AUDIO BOARD PARTS
8.1.1 Resistors
PART# VALUE
TOLERANCE
STYLE STOCK#
R101 604 OHM
1% 0 /2 WATT)
FILM 94-6040
R102 100K 1%
FILM 32-1003
R103 1K0
1%
FILM 92-1001
R104 100K
1%
FILM 92-1003
R105 1K0 1%
FILM 92-1001
R106 6K98
1%
FILM 92-6981
R107 6K98 1%
FILM 92-6981
R108 5.6 MEG 1%
FILM 92-5604
R109 47K5
1%
FILM 92-4752
R110
10K0 1%
FILM 92-1002
R ill
10K0
1%
FILM 92-1002
R112 47K5
1%
FILM
92-4752
R113
10K0
1%
FILM 92-1002
R114 10KO
1%
FILM
92-1002
R115
10K0
1%
FILM 92-1002
R116 9K31 1%
FILM 92-9311
R117 2K0
1%
FILM 92-2001
R118
10K0
1%
FILM
92-1002
R119 2K49
1%
FILM 92-2491
R120 8K25
\%
FILM 92-8251
R121 10K0
1 %
FILM 92-1002
R122 10K0
1%
FILM
92-1002
R123 10K0 1%
FILM 92-1002
R124 10K0 1%
FILM
92-1002
R125 10K0 1%
FILM 92-1002
R126 10K0 1 %
FILM 92-1002
R127
332K 1%
FILM
92-3323
R128 56 OHM
1%
FILM
92-0560
R129 10 MEG
1%
FILM
92-1005
R130 10K0
1%
FILM 92-1002
R131 499K 1%
FILM 92-4993
R132
10K0
1%
FILM 92-1002
Parts List 8-1
