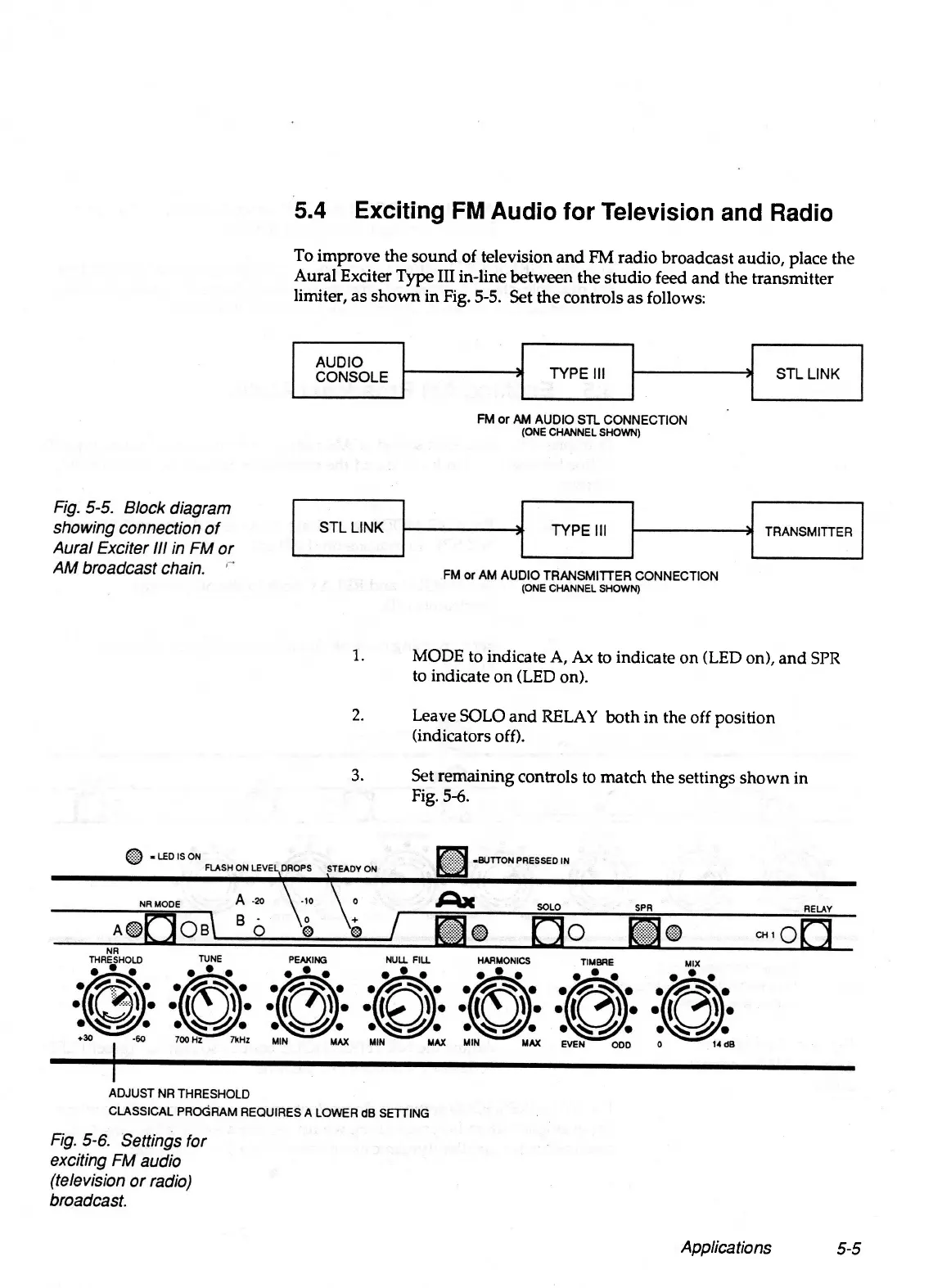

5.4 Exciting FM Audio for Television and Radio
To improve the sound of television and FM radio broadcast audio, place the
Aural Exciter Type III in-line between the studio feed and the transmitter
limiter, as shown in Fig. 5-5. Set the controls as follows:
1. MODE to indicate A, Ax to indicate on (LED on), and SPR
to indicate on (LED on).
2. Leave SOLO and RELAY both in the off position
(indicators off).
3. Set remaining controls to match the settings shown in
Fig. 5-6.
Applications
5-5
