E6 61 DTR.APC.APR.ALW.03(ENG)

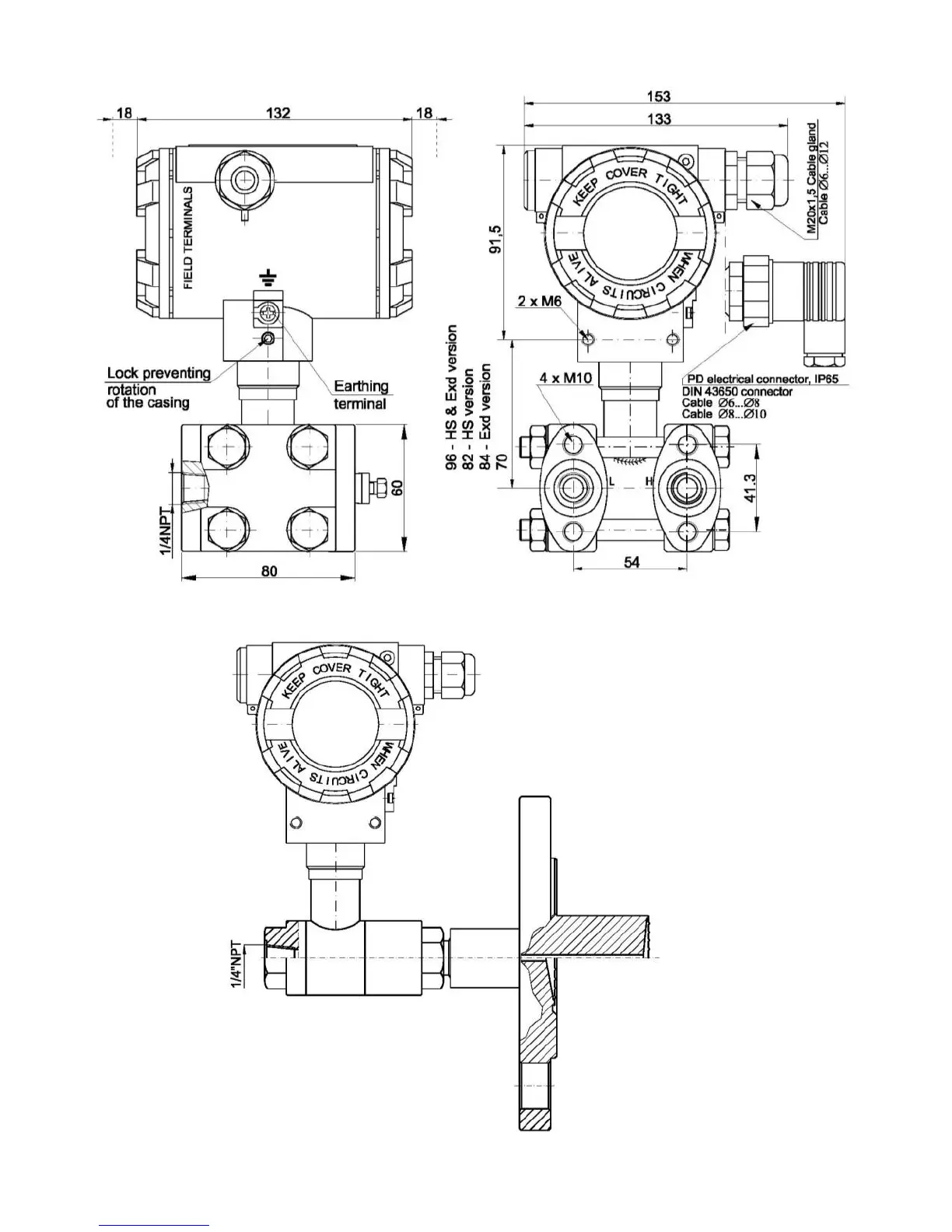

Fig. 10. APR-2000ALW differential pressure transmitter with C type vented covers.
Fig. 11. APR-2000ALW differential pressure transmitter with a single direct diaphragm seal (example).
S-T type
tube flanged
diaphragm seal
S-P type
flush flanged
diaphragm seal
