Aplisens APR-2000ALW - 2 Pipe

E6 63 DTR.APC.APR.ALW.03(ENG)

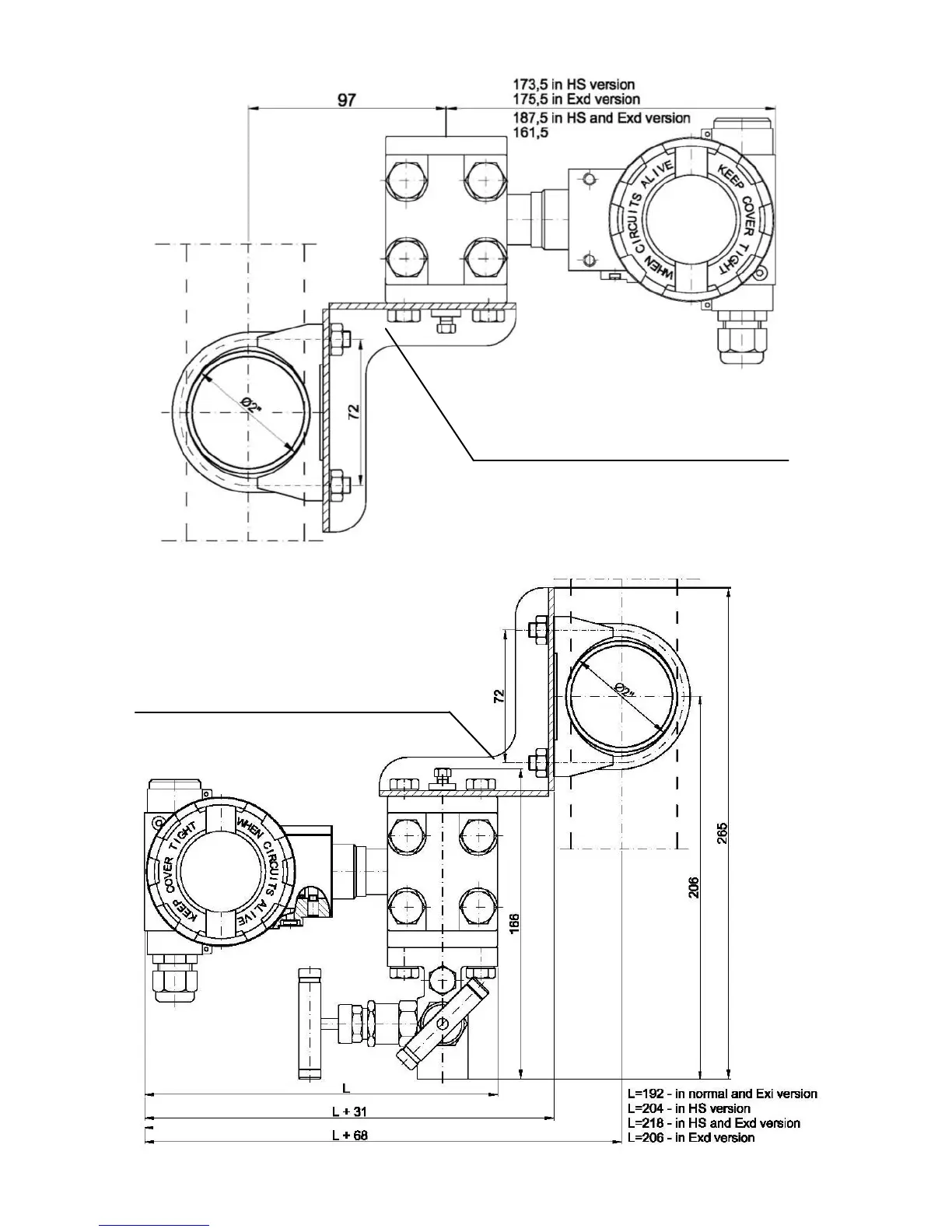

Fig. 13. Example: how to install the APR-2000ALW transmitter on a vertical or horizontal pipe.
Fig. 14. Example: how to install the APR-2000ALW transmitter with a valve manifold to a 2” pipe.
Fastener C2 for fitting differential pressure
transmitters with C-type connection
to a 2” pipe or to a wall.
see catalogue cards „Fitting accessories”
Fastener C2 for fitting differential pressure
transmitters with a valve manifold
to a 2” pipe
see catalogue cards „Fitting accessories”
