E6 23 DTR.APC.APR.ALW.03(ENG)
VI. APPENDIX SIL
Preparation of transmitter for operation in functional safety systems.
This document applies only to APC-2000ALW or APR-2000APR transmitters in N and Ex versions with
hardware version 3.0 and software version >=3.4.
The transmitter should be connected to a computer, operating with Windows XP, 7, 8, 10 OS, to
configure it using HART communication before target installation. Connection method is described in the
user’s manual. Read transmitter settings using pre-installed software Raport 2.0.
Steps for preparation of transmitter for operation in functional safety systems:
1. Checking equipment and software versions:

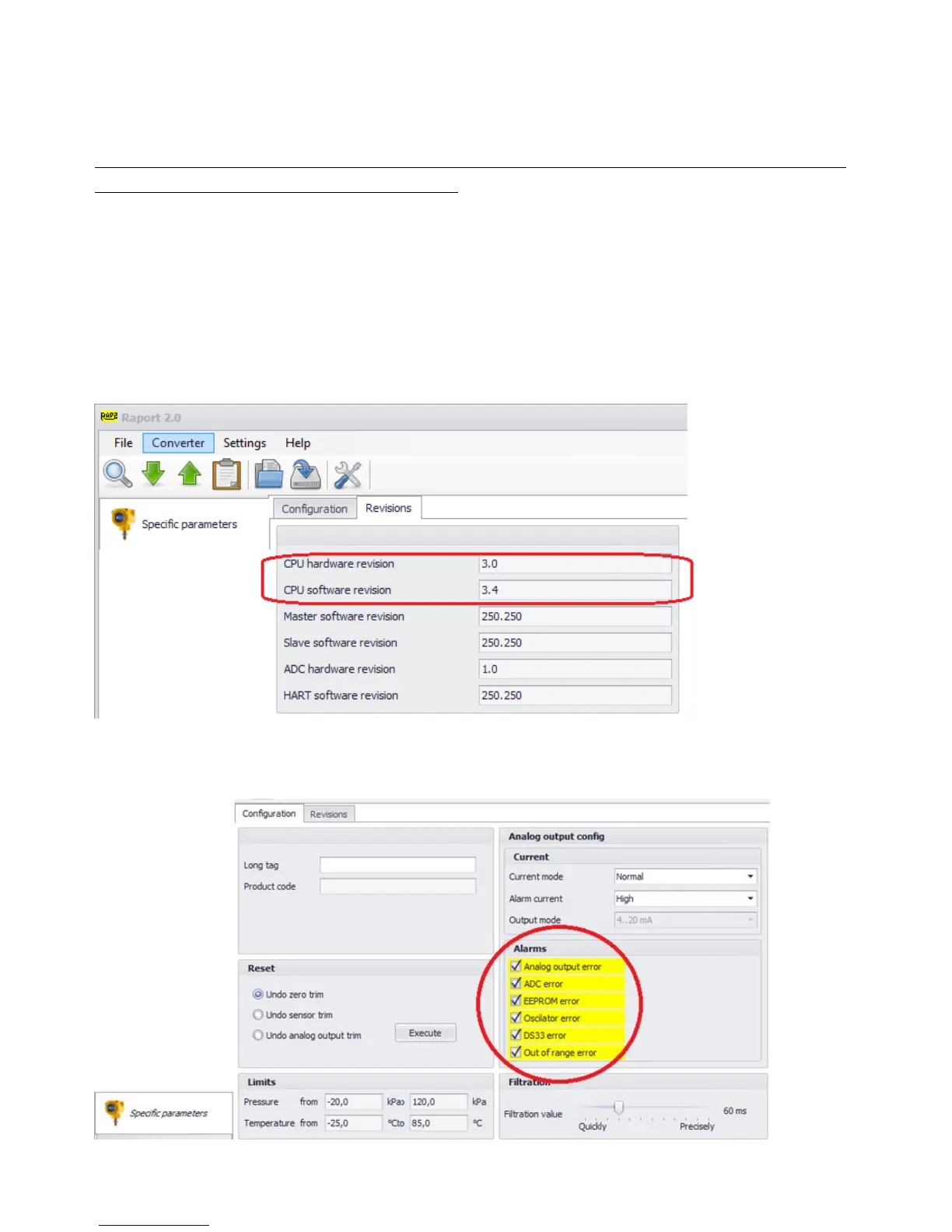

Hardware version is shown in the “CPU hardware revision” tab, while software version is given in the
“CPU software revision” tab after reading the parameters.
2. All alarms in the “Specific parameters” tab should be obligatorily marked as presented on the figure
below.
