Installation

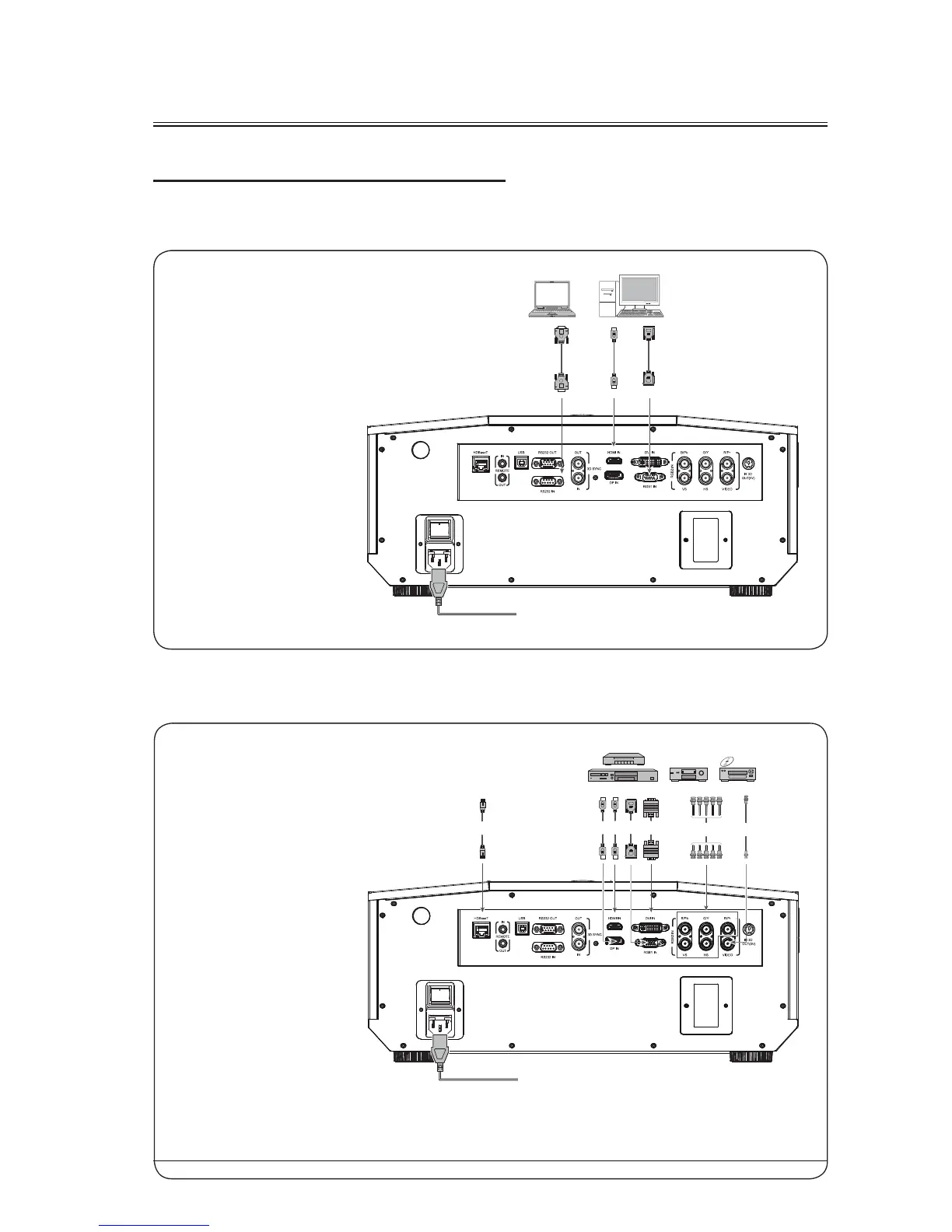

Connecting the Projector
①
Power cable
②
RS232 cable
③
HDMI cable
④
VGA cable
①
② ③ ④
Connecting to the socket
DVD player, set-top box,
and HDTV receiver
①
Power cable
②
HDBaseT cable
③
HDMI cable
④
DP cable
⑤
VGA cable
⑥
DVI cable
⑦
5BNC cable
⑧
Single BNC cable
Connecting to the socket
①

Connect the projector to the PC or laptop computer.

Connecting to the video device
③④
⑤
⑥
⑦
②
⑧
