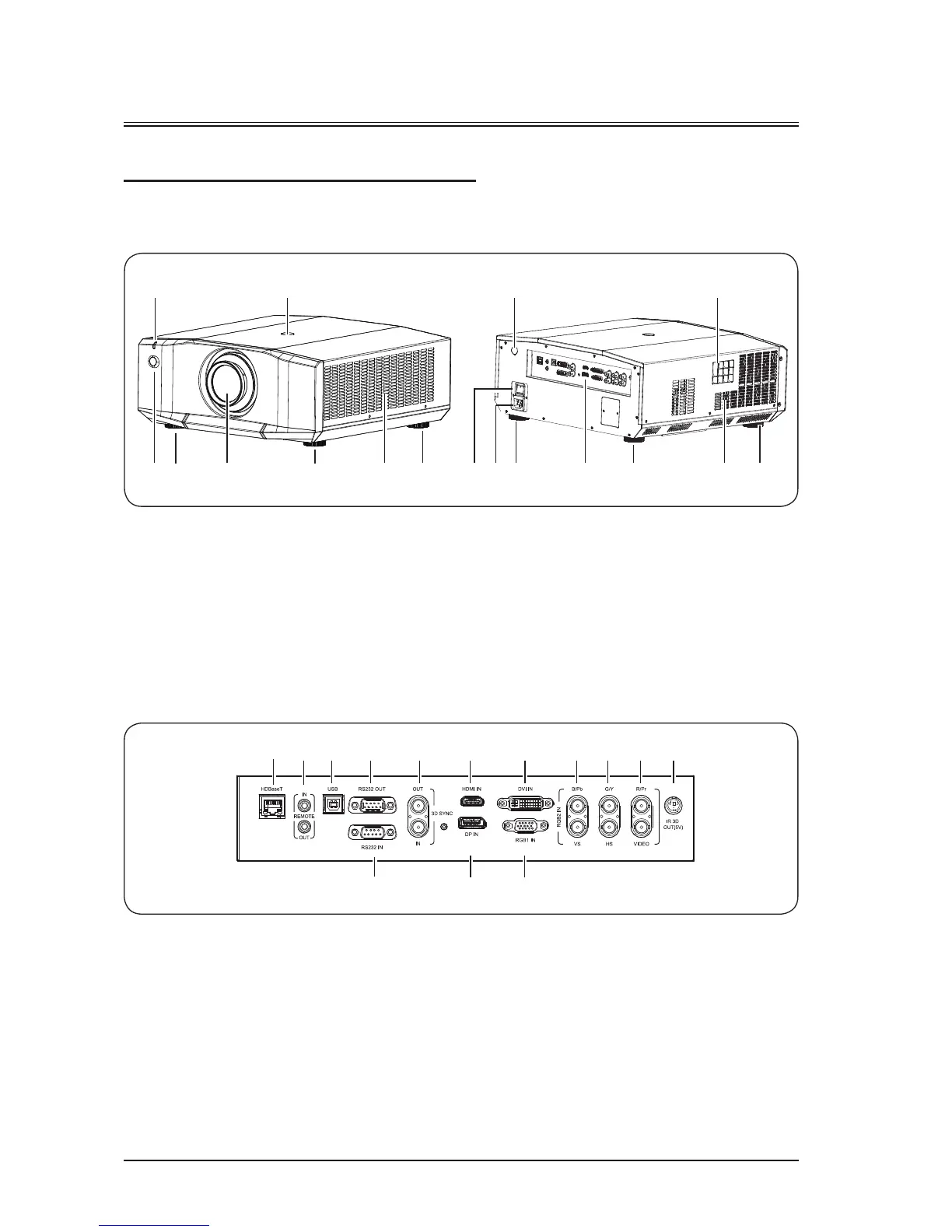

Projector Appearance
Overview

Main unit

I/O panel
① ②
③ ④ ⑤ ⑫⑫⑫ ⑧⑨
⑥ ⑦
⑩ ⑪ ⑫⑫⑫
①
LED state indicator
②
Lens lock
③
Infrared receiver (front)
④
Projection lens
⑤
Air vent (exhausting hot air)
⑥
Infrared receiver (rear)
⑦
Control panel
⑧
Power switch
⑨
Power port
⑩
Input and output panel
⑪
Air vent (air inlet)
⑫
Adjustment feet
① ③② ④ ⑥ ⑦
⑧ ⑩
⑪ ⑫
⑬ ⑭
⑨
⑤
①
HDBaseT port
②
REMOTE IN/OUT port
③
USB port
④
RS232 OUT port
⑤
RS232 IN port
⑥
3D SYNC IN/OUT port
⑦
HDMI IN port
⑧
DP IN port
⑨
DVI IN port
⑩
RGB1 IN port
⑪
B/Pb VS port
⑫
G/Y HS port
⑬
R/Pr VIDEO port
⑭
IR 3D OUT port
