Appotronics AL-FX550 - Ceiling Mount Installation Guide

21
Installation
Ceiling-mounted Installation
Ensure that the screws used secure the mounting bracket meet the following specifications:
Screw type: M6*16

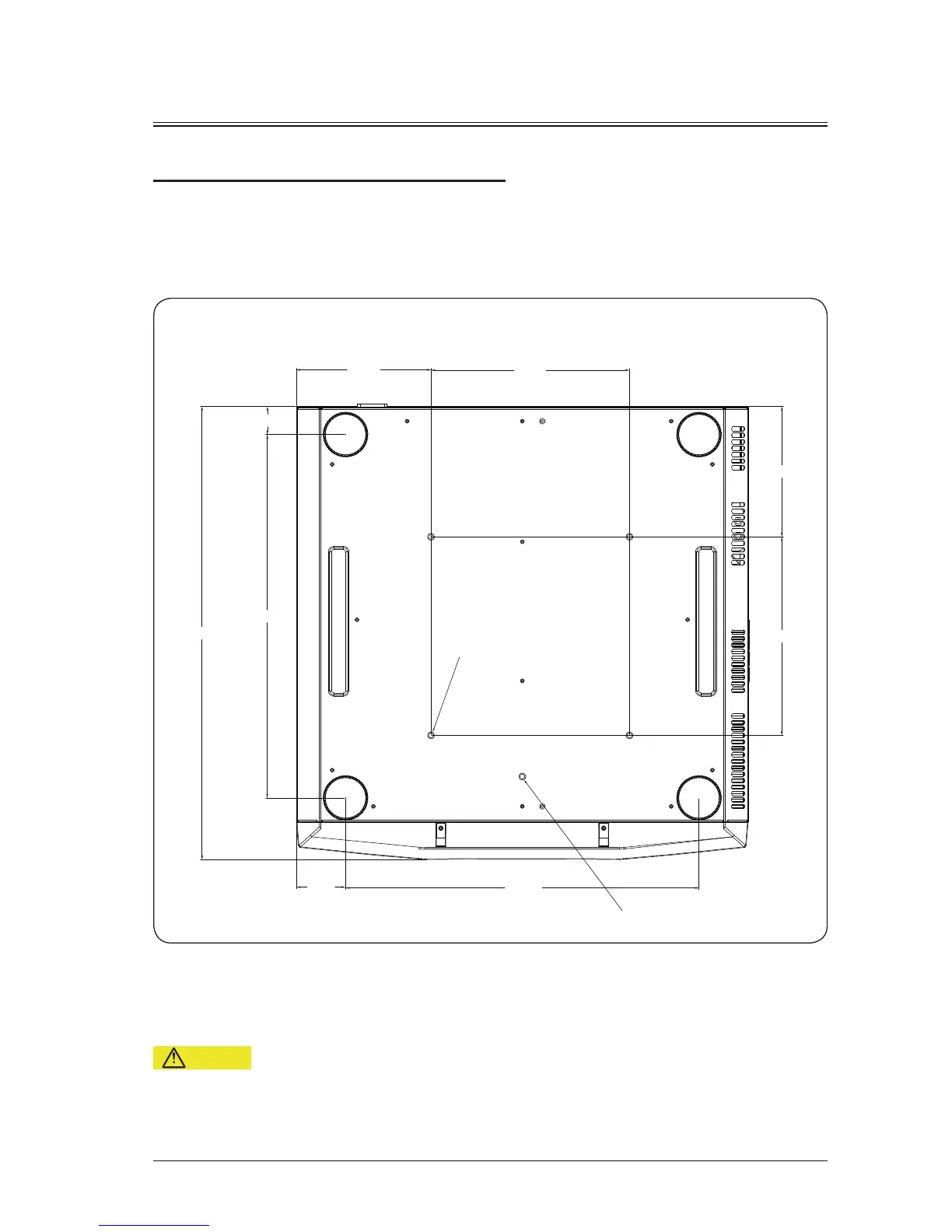

Assembly dimension:
- If the projector is damaged due to improper installation, the warranty becomes invalid.
28,3
135,5
131,3
366,0
49,5
356,0
456,3
200,0
200,0
４－Ｍ６ｘ１６
Unit: mm
Caution
Reserved safety rope nut/Z
