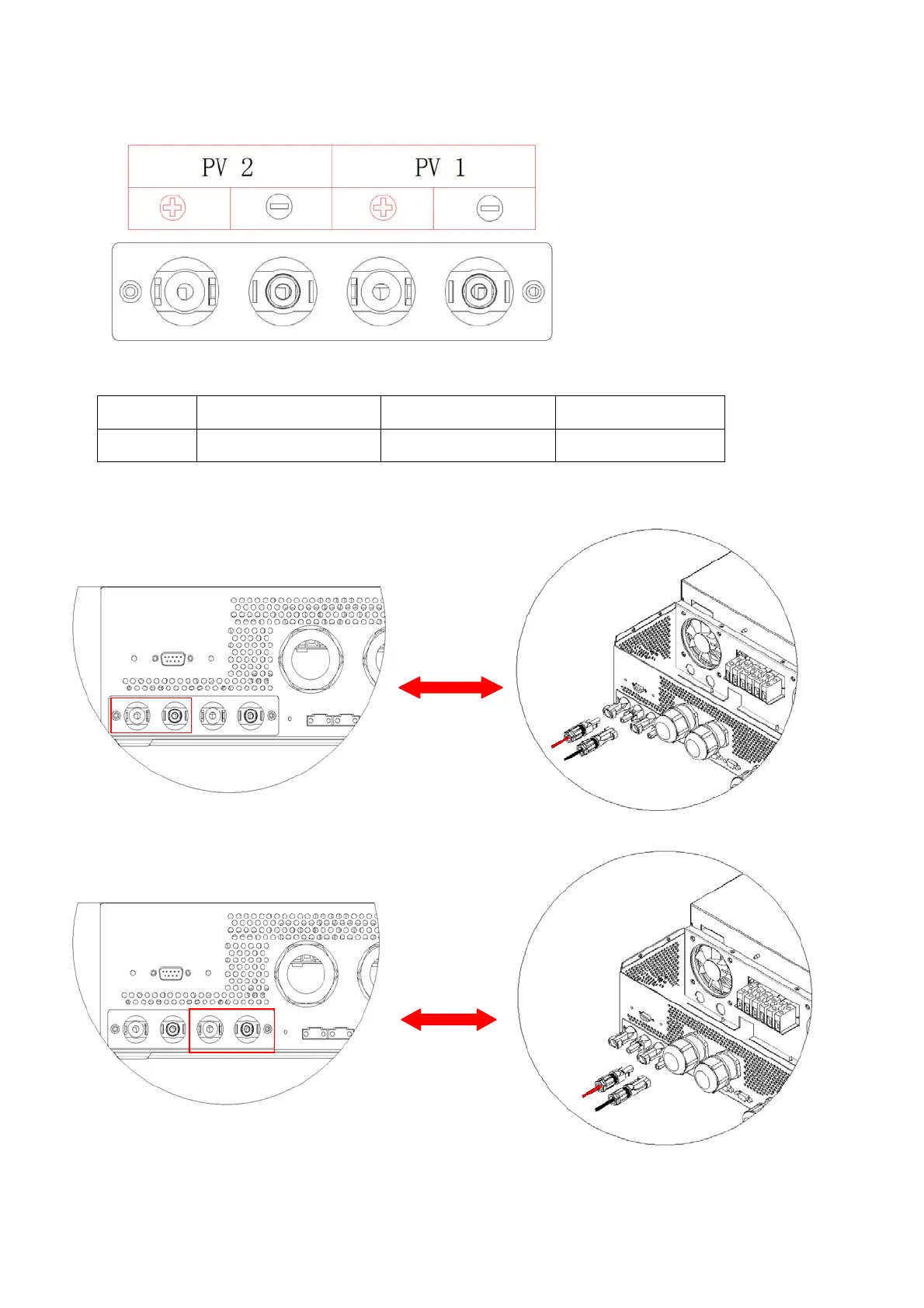

Step 4: Check correct polarity of connection cable from PV modules and PV input connectors. Then, connect
positive pole (+) of connection cable to positive pole (+) of PV input connector. Connect negative pole (-) of
connection cable to negative pole (-) of PV input connector.
WARNING! For safety and efficiency, it's very important to use appropriate cables for PV module connection.
To reduce risk of injury, please use the proper cable size as recommended below.
CAUTION: Never directly touch the terminals of inverter. It might cause lethal electric shock.
PV1 Connection
PV2 Connection
Model
Cable (mm
2
)
AWG
Torque value(max)
8KW 4
12
1.2-1.6 Nm
To Next Page
