APT 8KW - Single-Phase Parallel Wiring

24
6.3 Single-phase Parallel Operation Cable Connection

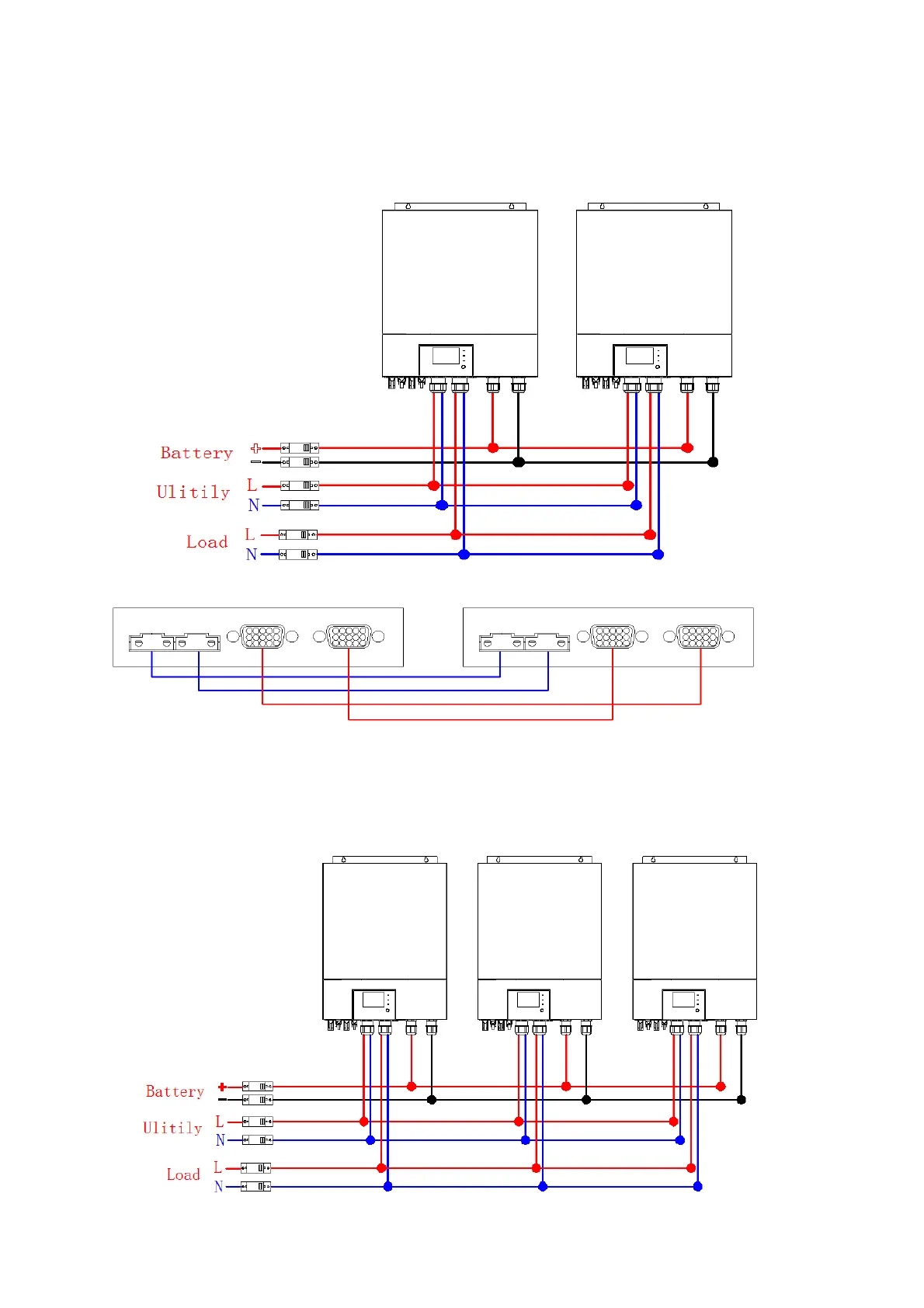

1.Two inverters in parallel：
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
Communication Connection
2.Three inverters in parallel：
Power Connection:
NOTE: The following picture is only a schematic diagram of the equipment .If the actual chassis does not
conform to the schematic due to a structural upgrade, it is subject to prior notice.
