5.3 LCD Display Icons

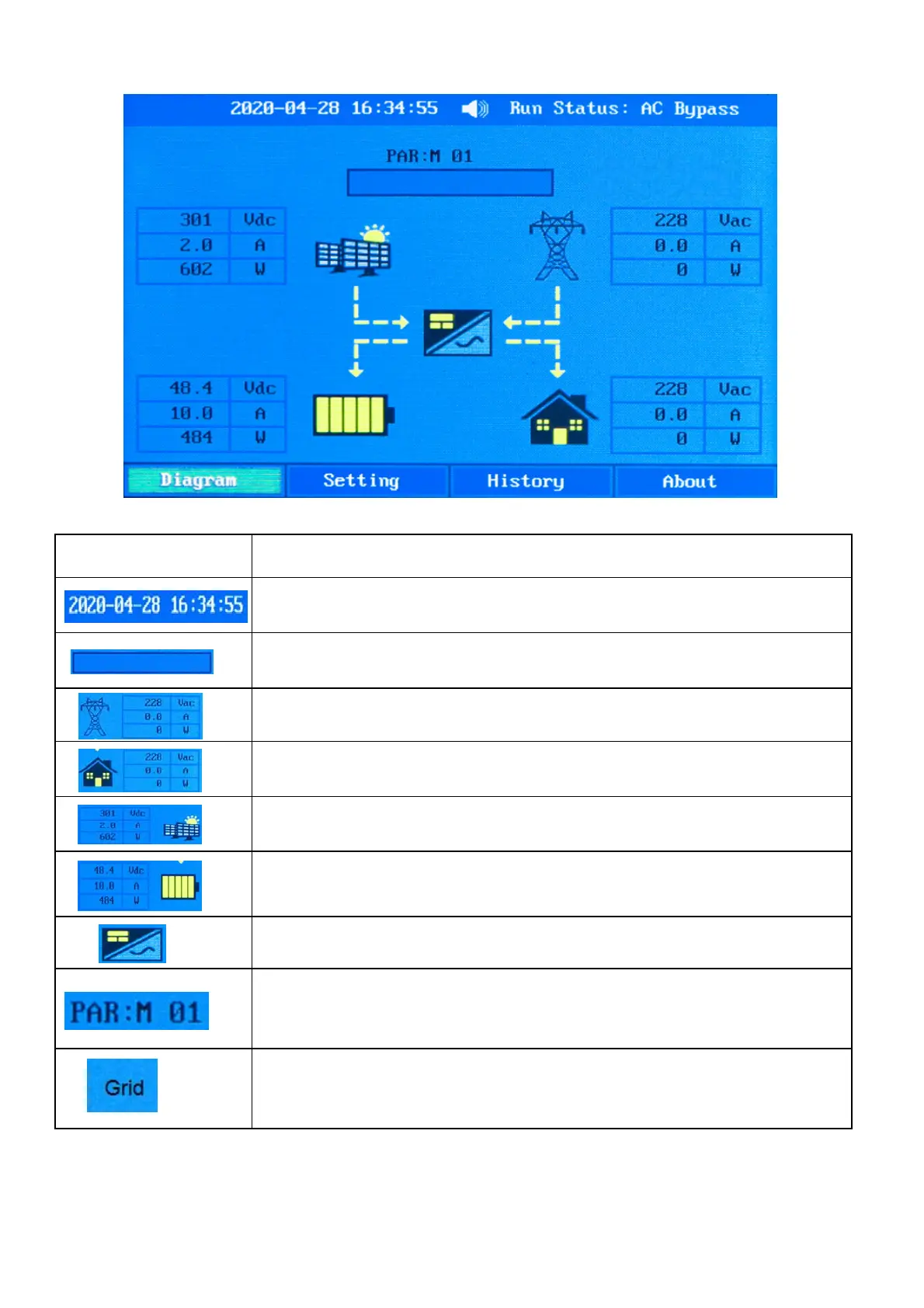

Icon Description
operation time
Operation information include fault and warning code
Input voltage ,current and power information
Output voltage ,current and power information
PV input voltage , PV input current ,PV input power information
NOTE: the information of PV1 and PV2 is automatically switched every 3 seconds
Battery voltage ,current and power information
Indicates the DC/AC inverter circuit is working
Parallel status
Explain: “PAR”:Parallel mode , “M”:Host, “S”:Slave
“01”:Parallel number
Grid mode is enable
PV1/PV2
Grid
