AQ Elteknik D72 User Manual

16 Ultrasound Controller Manual
5. Level Switch Mode
In Level Switch Mode the Level Switch measures a single level from the side of the container. It
measures the presence or no presence of liquid behind the container (or pipe) wall. The Level
Switch senses through the wall AND no hole is needed. Four Level Switches can be connected to
one Ultrasound Controller.
Quick start guide
 Install Level Switches according to instructions in the Level Switch Manual.
 Connect cables, see page 6 or 7 and 16.
 Switch on external power supply. You may have to press POWER to exit standby on D128.
 Read about navigating the menu system, page 8
 Display show: SET sensor MODE. Press MENU button to scroll to Press SELECT for
LevelSwitchmode. Confirm by pressing SELECT button.
 Go to SETTINGS to set parameters, page 18.
 Now calibrate Level Switch 1. Make sure liquid level is below the Level Switch. Select
CALIBRATE with AIR (empty) then select Calibrate AIR Level Switch1 and press SELECT button
one second.
 Make sure liquid level is above the Level Switch. Select CALIBRATE with LIQUID (full) then
select Calibrate LIQUID Level Switch1 and press
SELECT button one second.
 Do the calibration for all connected Level Switches. The
calibration order air/liquid and Level Switch number
can be mixed.
 Go to SHOW DATA to check calibrated values, page13
 Ready.
Connecting the Level Switch
The cable from the Level Switch should
connect directly to the Ultrasound Controller.
(Yellow and green cable are not used.) The
cable screen must always be connected to
Ultrasound Controller (screened cable must
always be used). Any unscreened part of the
cable should be no longer than 30mm. To
minimize the risk of electric interference it is
important that sources of interference like
frequency inverters should use screened
cables between inverter and motor.

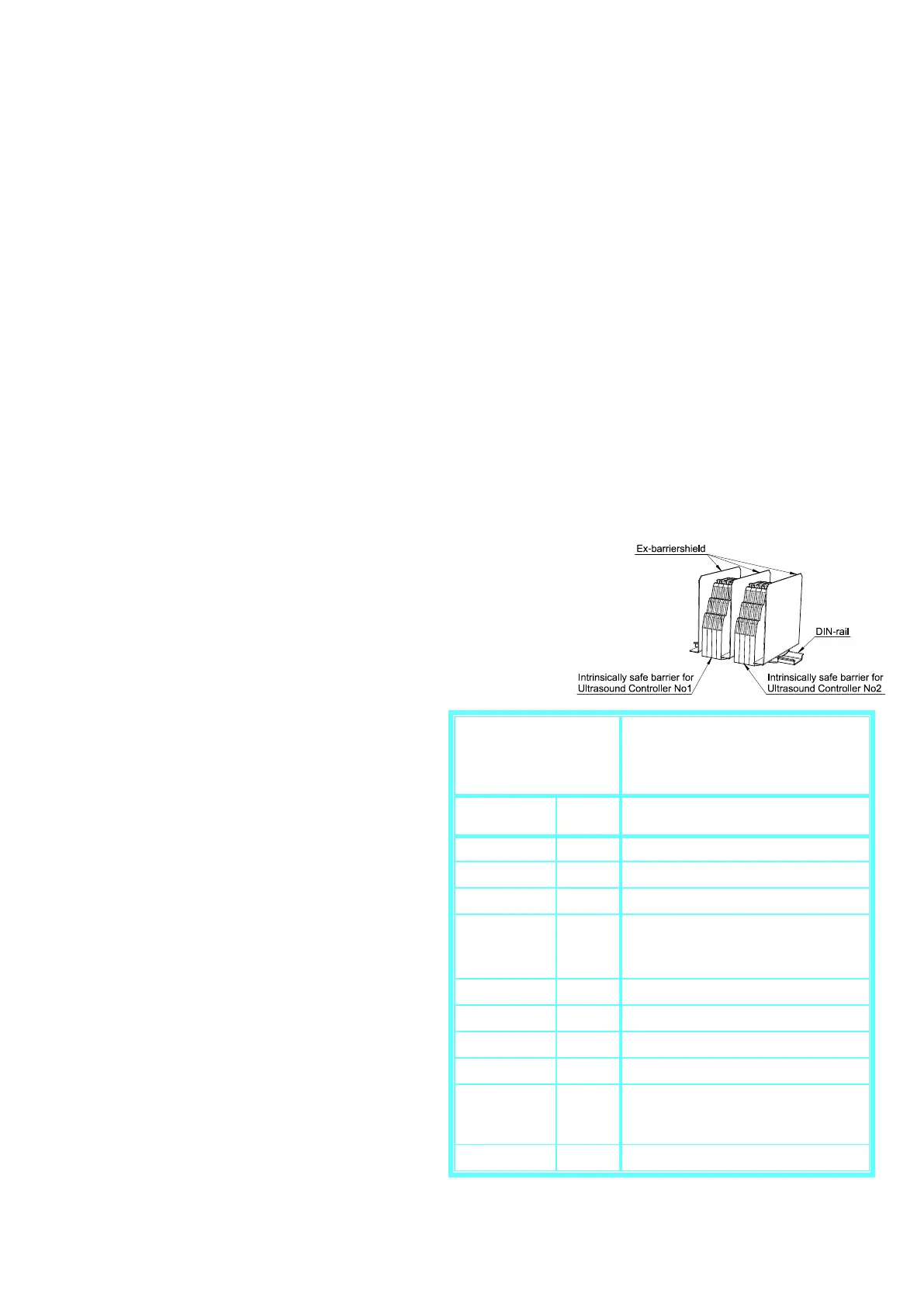

In an ex-installation, shielding aluminum
plates must be placed outside each group of
zener barriers belonging to each Ultrasound
Controller, order number: Ex-barriershield,
see Level Switch Ex manual.
Level Switch Type and Technique
There are two different measuring techniques
Ultrasound
Controller
Terminal
Level Switch Cable
D72 / DP72
D128
8
11
Level Switch 1 Brown
9
12
Level Switch 1 White
10
13
Level Switch 2 Brown
11
14
Level Switch 1 Screen &
Level Switch 2 Screen
12
15
Level Switch 2 White
13
16
Level Switch 3 Brown
14
17
Level Switch 3 White
15
18
Level Switch 4 Brown
16
19
Level Switch 3 Screen &
Level Switch 4 Screen
17
20
Level Switch 4 White
