Dual exposed shower with fixed and adjustable shower heads installation instuctions page 11
User guide – Shower valve

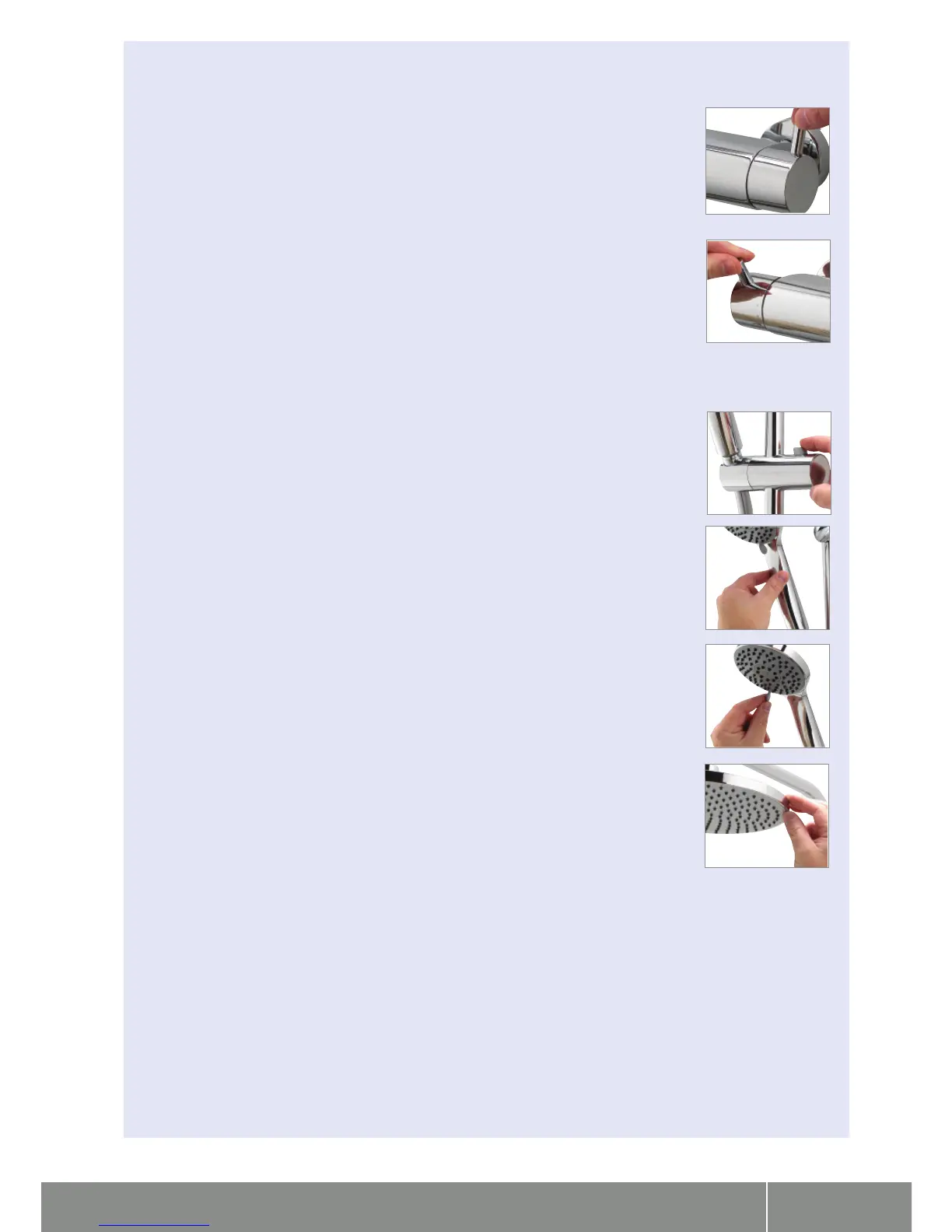

Shower operation
1. The Dual product features temperature control on the right hand side of the valve when viewed from the
front. When the lever is pointing upwards, the valve is in the mid blend position. To change the showering
temperature rotate the control away from the wall to increase the temperature and towards the wall to
decrease the temperature, using the markings as a guide.
THE MID BLEND TEMPERATURE IS DICTATED BY THE TEMPERATURE OF THE INCOMING SUPPLIES.
N.B. Should it be necessary to reset the maximum temperature position, please refer to the commissioning
instructions overleaf. We recommend the MAXIMUM outlet temperature is set to 46
0
C.
2. Turn the valve on by rotating the control knob on the left side of the valve away from the wall to operate the
fixed head or towards the wall to operate the adjustable height head, using the icons as a guide. Turn the
valve off by rotating the control knob to the centre until a stop is reached and the lever is pointing upwards.
User guide – Adjustable shower head
Shower operation
NEVER ATTEMPT TO MAKE ANY ADJUSTMENT TO THE SHOWER HEAD BY PULLING ON THE SHOWER HOSE.
1. To select the preferred height for the shower head, press the handset holder button to enable the slider
to be moved up or down the rail.
2. Angular adjustment is made by carefully but firmly pulling forwards or pushing back the shower head
against the knuckle in the handset holder.
3. To select the desired spray pattern rotate the shower plate clockwise or anti-clockwise.
User guide – Fixed shower head
1. The shower head is mounted on a mulit-directional ball joint to allow angular adjustment in any direction
by carefully moving the head to the desired angle.
Cleaning and maintenance
Your Dual shower system should be cleaned using only a soft cloth and washing up liquid.
! DO NOT USE ABRASIVE CLEANERS.
To reduce the requirement for chemical descaling in hard water areas, the shower heads incorporate rub clean teats. Any scale
build up that may occur in any of the holes can be broken down by gently rubbing the flexible tips of the jets during use.
Should chemical descaling of the head become necessary, remove the shower head and fully immerse in a mild proprietary
descalent.
IT IS IMPERATIVE THAT DESCALING IS CARRIED OUT STRICTLY IN ACCORDANCE WITH THE MANUFACTURERS INSTRUCTIONS.
SUBSTANCES THAT ARE NOT SUITABLE FOR PLASTICS AND ELECTROPLATED SURFACES MUST NOT BE USED.
