Dual exposed shower with fixed and adjustable shower heads installation instuctions page 8

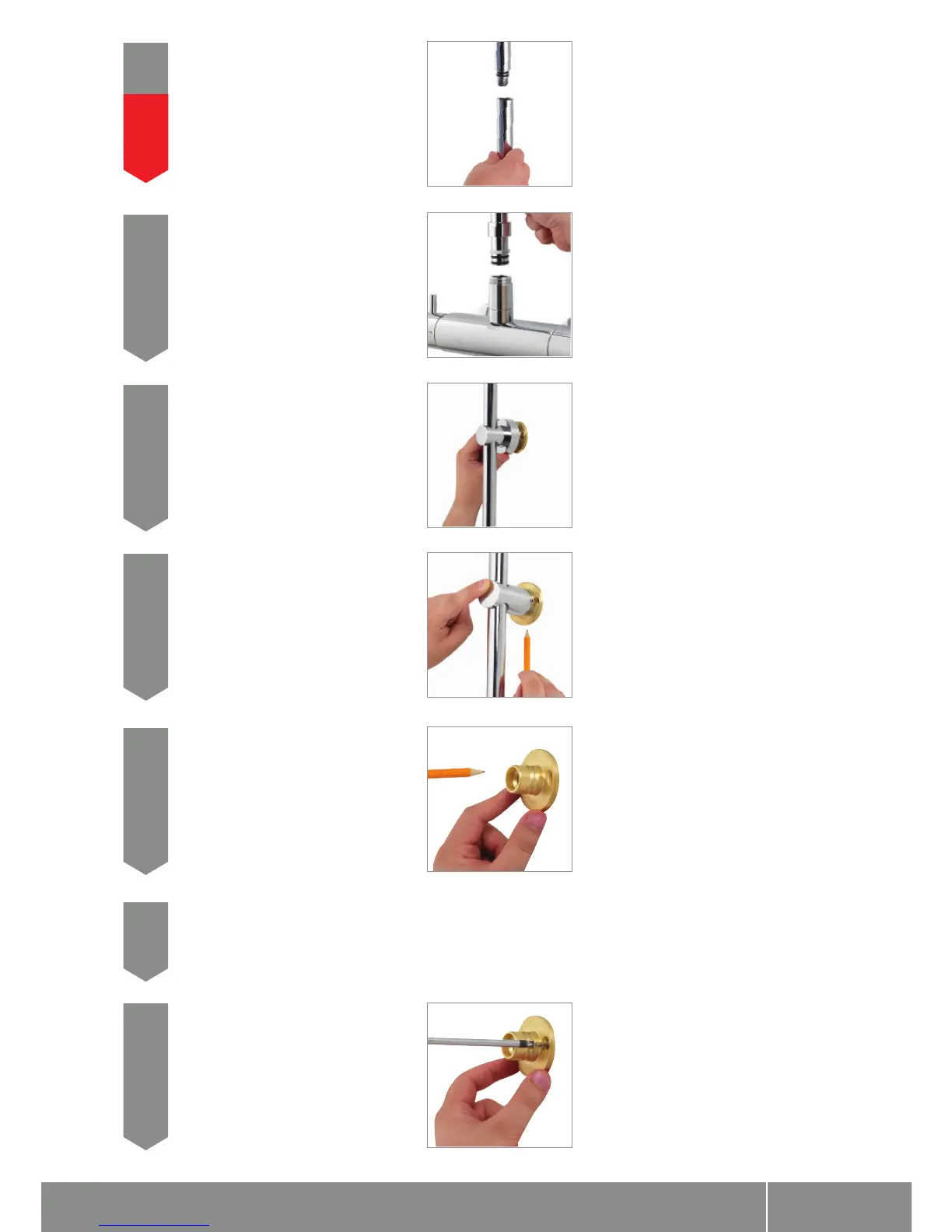

Fit the formed shower arm to the straight
riser tube.
The straight riser tube is a fixed length and
is not suitable to cut down.
3
Ensuring the O’ring and nut is secure on the
riser tube, locate the rail assembly into
position within the valve top outlet and push
fully home.
4
Carefully slide the wall bracket up the riser
tube assembly to conceal the join between
the straight and formed riser tubes
.
5
Ensuring the riser tube assembly has been
correctly positioned and attached to the
mixer valve, mark the position of the fixing
plate. Remove the riser tube assembly from
the valve and remove the bracket assembly
from the riser rail.
6
Remove the fixing plate from the wall
bracket assembly using the hexagonal key
provided.
7
Place the fixing plate into position and mark and prepare the fixing points
using the fixings provided, if suitable.
8
!
Secure the fixing plate to the wall using the
screws provided, if suitable.
9
