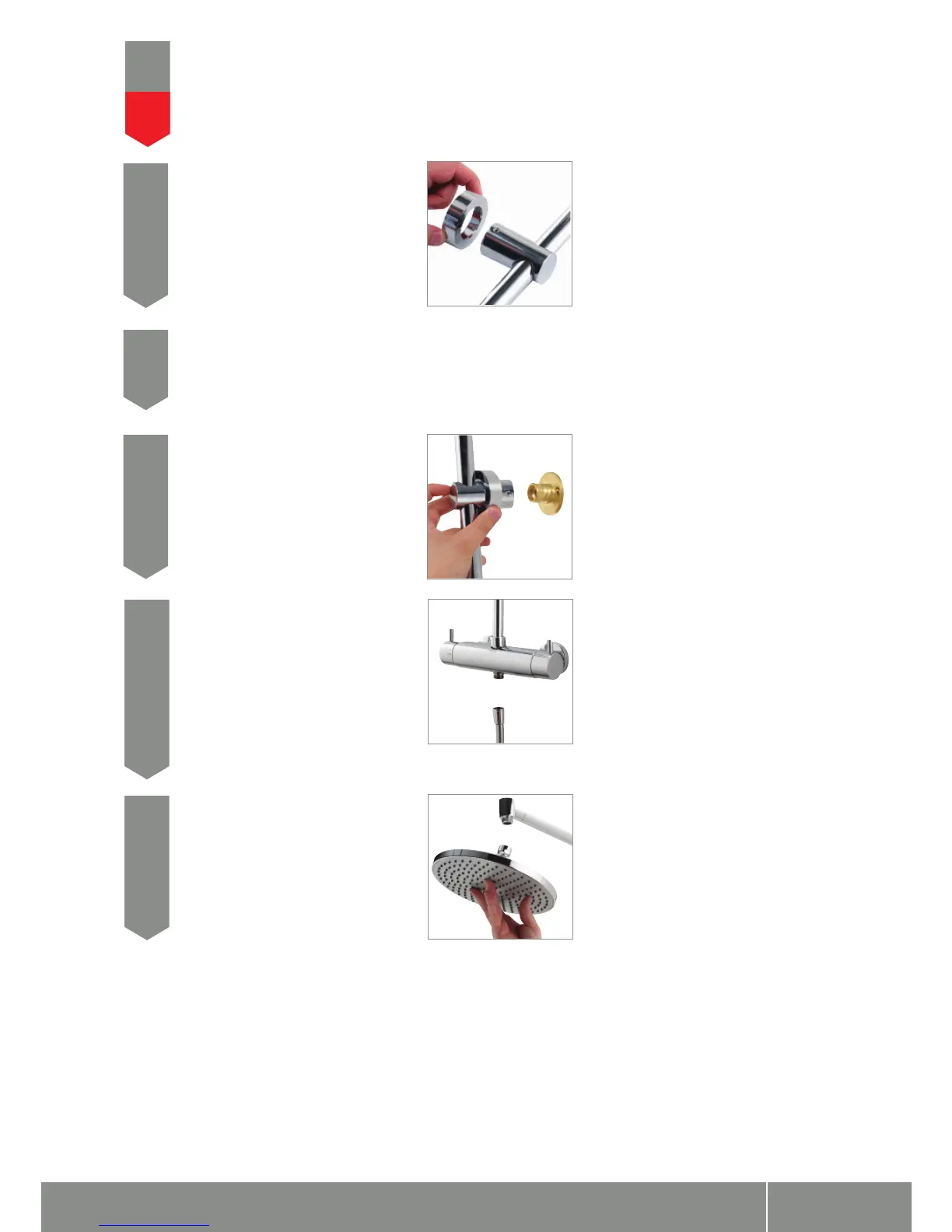

Dual exposed shower with fixed and adjustable shower heads installation instuctions page 9
Carefully slide the coverplate onto the wall
bracket.
11
Re-position the rail assembly into place in the mixer valve outlet and push
fully home. Tighten the fixing nut using a suitable tool, taking care not to
overtighten.
12
Secure the wall bracket to the fixing plate
using the heagonal key provided. Carefully
secure the cover plate flush with the
finished wall surface.
13
Ensuring the hose washer is in place, attach
the hose to the hose outlet, taking care not to
overtighten. Turn the shower on towards the
wall to allow the water to discharge safely to
waste and run the shower for a few seconds to
clear any debris in the outlet assembly.
This process can also be repeated for the fixed
head by adjusting the control knob away from
the wall.
14
Ensuring the flat washer is in place, carefully
screw the shower head to the formed arm
taking care not to damage the plated
surface. Carefully tighten the shower head
with a suitable tool taking care not to
overtighten.
15
Ensuring the wall bracket is in the correct position on the riser rail assembly,
secure the wall bracket to the rail via the grub screw in the rear of the wall
bracket using a suitable hexagonal key.
This will prevent the rail from rotating when fitted to the mixer shower.
