Aqualisa MIDAS 110 - Midas Shower Installation; Fixing Kit and Elbow Preparation; Inlet Pipework Adjustment

13
UK
In addition to the guide below it is essential that the written instructions are read and
understood and that you have all the necessary components before commencing installation.
Failure to install the product in accordance with these instructions may adversely aect the
warranty terms and conditions. Do not undertake any part of this installation unless you are
competent to do so. Prior to starting, ensure that you are familiar with the necessary plumbing
regulations required to install the product correctly and safely.

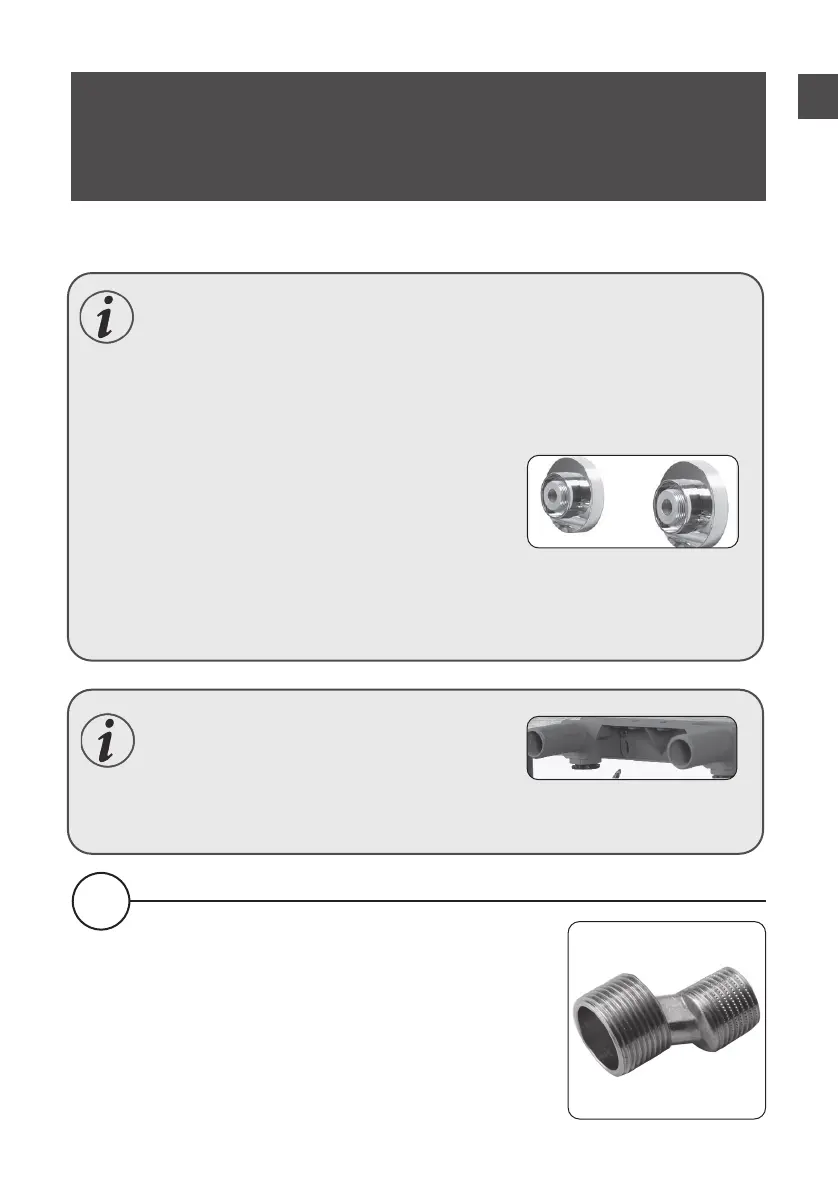

The BAR001FIX bar valve fixing kit provided with Midas
110/220 shower provides a method of surface siting
exposed bar valves onto a finished wall surface, using
15mm concealed pipe work.
If required, fit the bar valve fixing accessory following the relevant installation instructions
provided and proceed to step 6.
The valve and fixing bracket assembly MUST NOT be used as a grab rail support method.
INSTALLATION INSTRUCTIONS
Bar valve fixing accessories are available separately.
The MD300EFB is a first fix fixing bracket. If using the
MD300EFB bracket, ensure sucient threads are left
from the finished wall surface, after the cover plates have been fitted, to ensure adequate
purchase for the valve. Please refer to page 14 for recommended thread depths information.
MIDAS
SHOWER
Eccentric elbows are provided to allow for inlet pipework
adjustment between 130mm – 170mm centres. Construct
suitable connections terminating in ½” BSP female fittings.
All eccentric elbows provided convert from ¾” to ½”.
1
