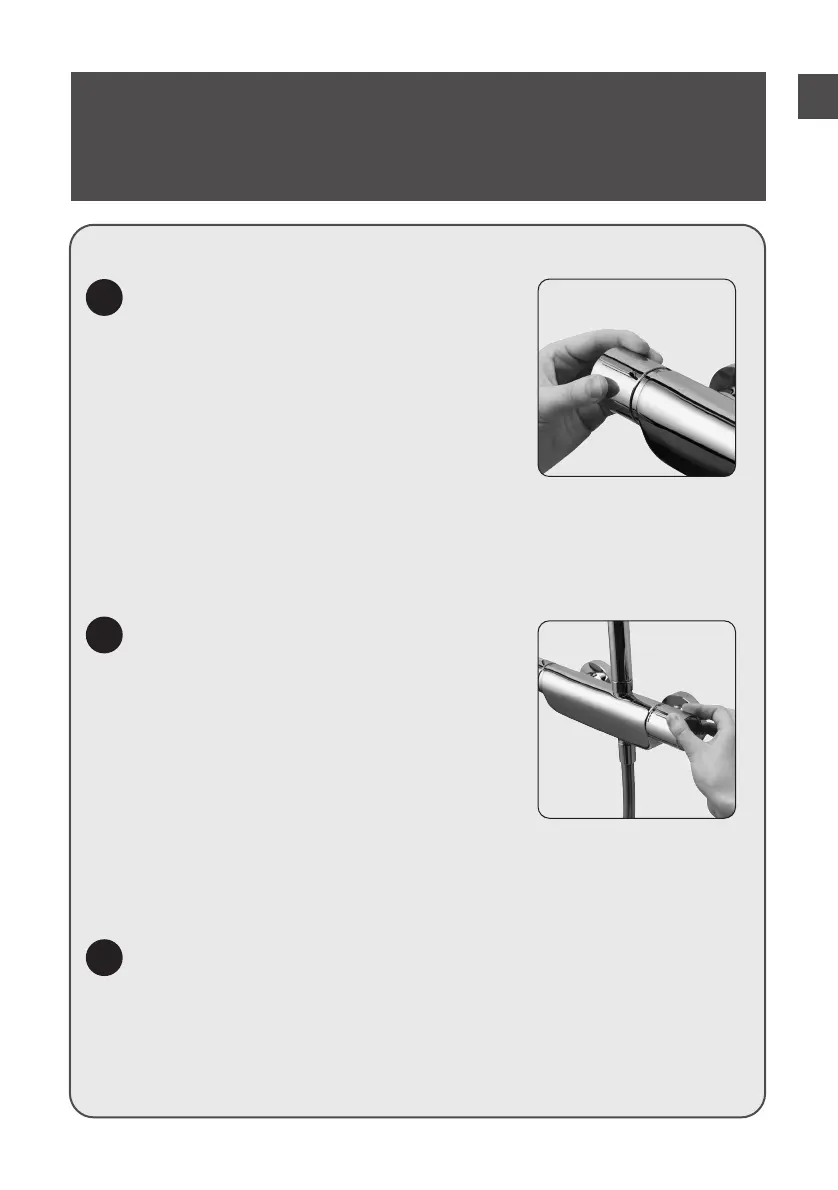

The valve is in the mid blend position when the temperature
override button is at the top. The shower’s outlet temperature
may vary to the indicator, depending on the temperature of the
incoming supplies. Using the temperature markings as a guide,
depress the temperature override button and slowly rotate the
knob towards the wall to increase the temperature and away
from the wall to decrease the temperature.
Temperature control
NOTE: SHOULD IT BE NECESSARY TO RESET THE MAXIMUM TEMPERATURE
POSITION, PLEASE REFER TO THE COMMISSIONING INSTRUCTIONS ON PAGE 32.
We recommend the MAXIMUM outlet temperature is set to 46ºC.
1
Turn the valve on by carefully rotating the flow control knob
away from the wall until the required volume of flow is reached.
Turn the valve o by rotating the flow control knob towards the
wall until a stop is reached.
NOTE: WITH ALL MIDAS VALVES FITTED TO
COMBINATION BOILER SYSTEMS, IT MAY BE
NECESSARY TO ADJUST THE FLOW CONTROL KNOB
AND REDUCE THE FLOW TO ACHIEVE A COMFORTABLE
SHOWERING AND BATHING TEMPERATURE.
Shower On/O/Flow control
2
Turn the valve on by rotating the control knob away from the wall to operate the fixed head/bath
filler, or towards the wall to operate the adjustable height head. Turn the valve o by rotating the
control knob to the centre until a stop is reached and the nodule is pointing upwards.
110 Shower Column & BSM On/O/Flow/divert
3
VALVE
Left side control knob as viewed from the front
Right side control knob as viewed from the front
Right side control knob as viewed from the front
To Next Page
