Aqualisa MIDAS 110 - Thread Depth and Elbow Connection; System Flushing and Pressure Testing

14
UK
When using the eccentric elbows provided we recommend leaving sucient threads from the
finished wall surface, after the cover plates have been fitted, to ensure adequate purchase for
the exposed valve. If using alternative fixings, please refer to the installation instructions
provided to ensure adequate threads are left to connect the exposed valve after the cover
plates have been fitted to the finished wall surface.
If required, apply jointing tape to the threads and fit the eccentric
elbow connectors suciently to achieve a water tight seal,
terminating at 150mm centres to suit the exposed valve inlets.
Ensuring adequate provision to allow the water to discharge safely to waste, turn on the supplies to
flush the system through. Attach pressure test equipment and pressure test the system in
accordance with Water Supply Regulations.
Ensure the ¾” supply connections are temporarily capped to prevent any dirt or dust ingress into
the pipe work during the making good process. Remove the caps prior to connecting the shower
valve.

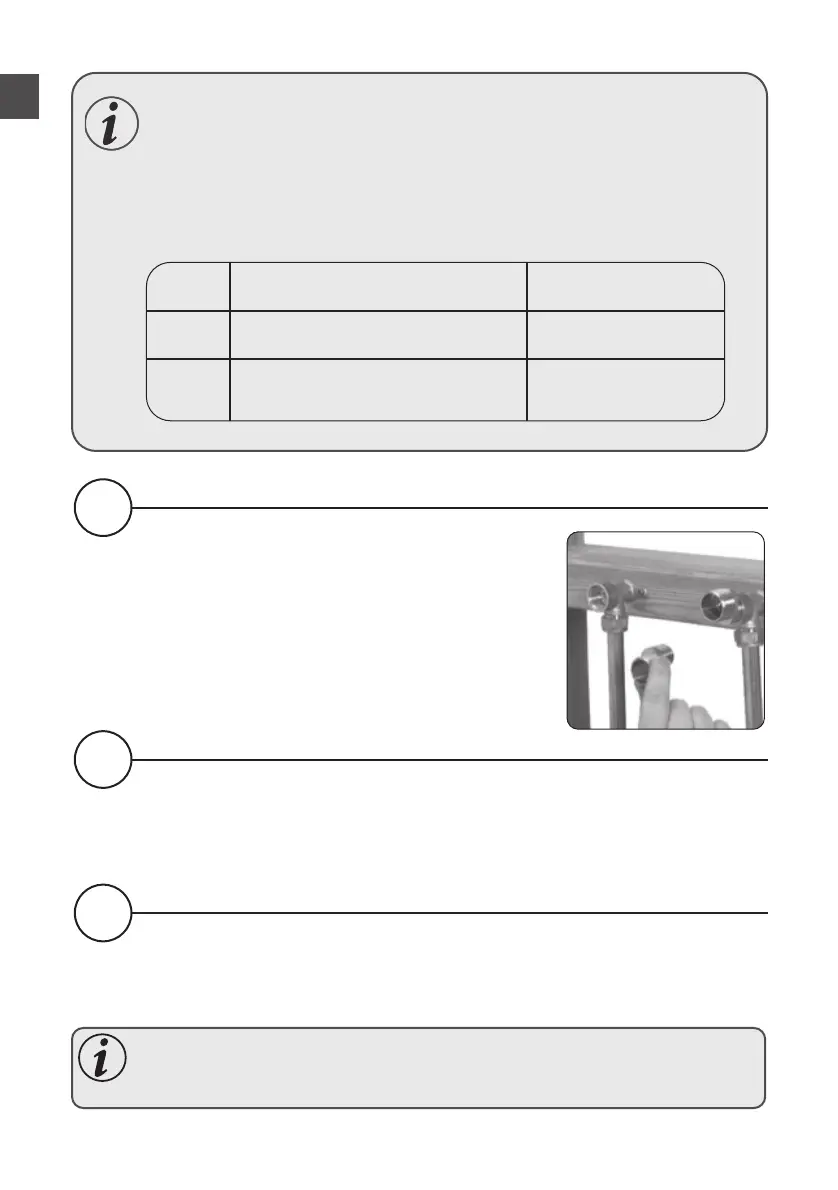

RECOMMENDED THREAD DEPTH CHART
MD110 Eccentric fittings from finished wall surface MIN 23mm - MAX 25mm
MD220 Eccentric fittings from finished wall surface MIN 30mm - MAX 32mm
EASY FIT
BRACKET
From finished wall surface MIN 20mm - MAX 25mm
2
3
4
IMPORTANT: We recommend to apply a suitable sealant around the connectors to
stop water entering the wall.
