Aqualisa MIDAS 110 - Fixing Accessories and Elbows; Elbow Connector Installation

20
UK

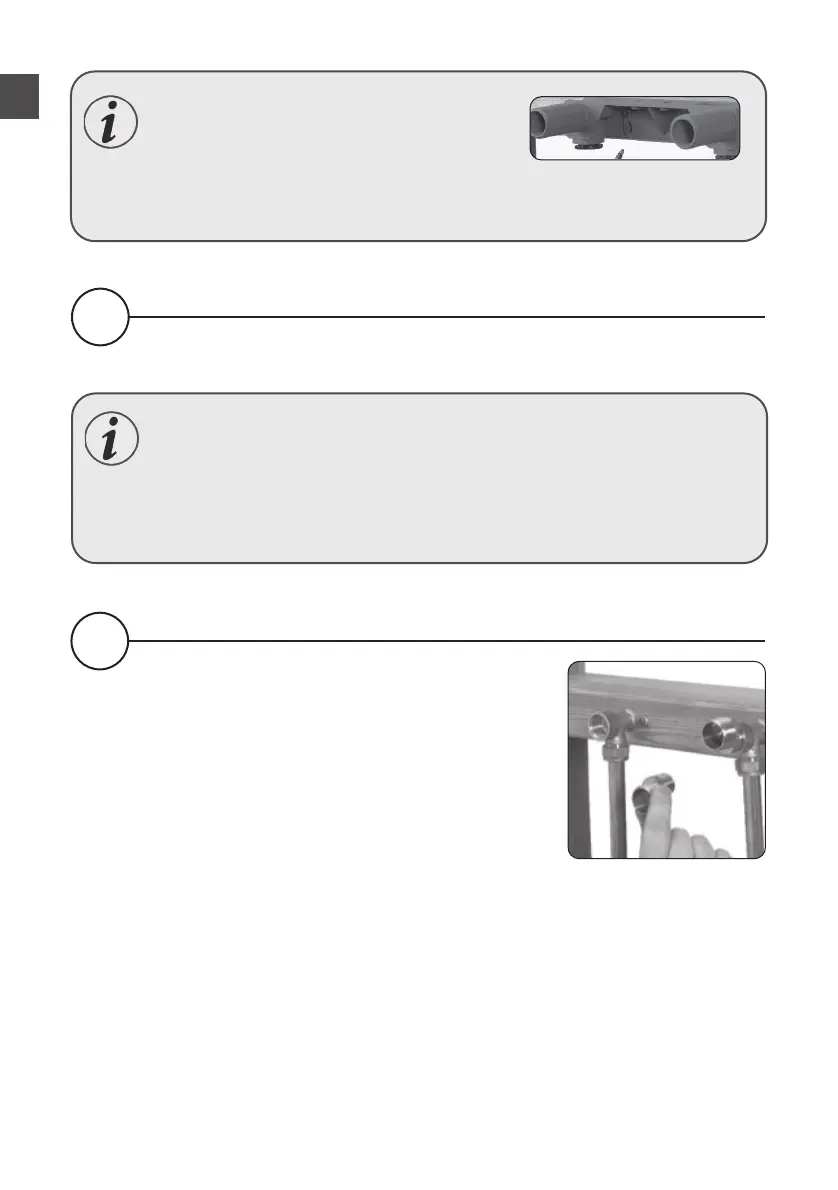

Eccentric elbows are provided to allow for inlet pipework adjustment between 130mm – 170mm
centres. Construct suitable connections terminating in ½” BSP female fittings.
When using the eccentric elbows provided we recommend leaving sucient threads from the
finished wall surface, after the cover plates have been fitted, to ensure adequate purchase
for the exposed valve. If using alternative fixings please refer to the installation instructions
provided to ensure adequate threads are left to connect the valve after the cover plates have
been fitted to the finished wall surface. Please refer to page 14 for recommended thread depths
information.
If required, apply jointing tape to the threads and fit the eccentric
elbow connectors suciently to achieve a water tight seal,
terminating at 150mm centres to suit the exposed valve inlets.
1
2
Bar valve fixing accessories are available separately. The
MD300EFB is a first fix fixing bracket. If using the
MD300EFB bracket, ensure sucient threads are left
from the finished wall surface, after the cover plates have been fitted, to ensure adequate
purchase for the valve. Please refer to page 14 for recommended thread depths information.
