ARAG IBX100 - Page 73

73

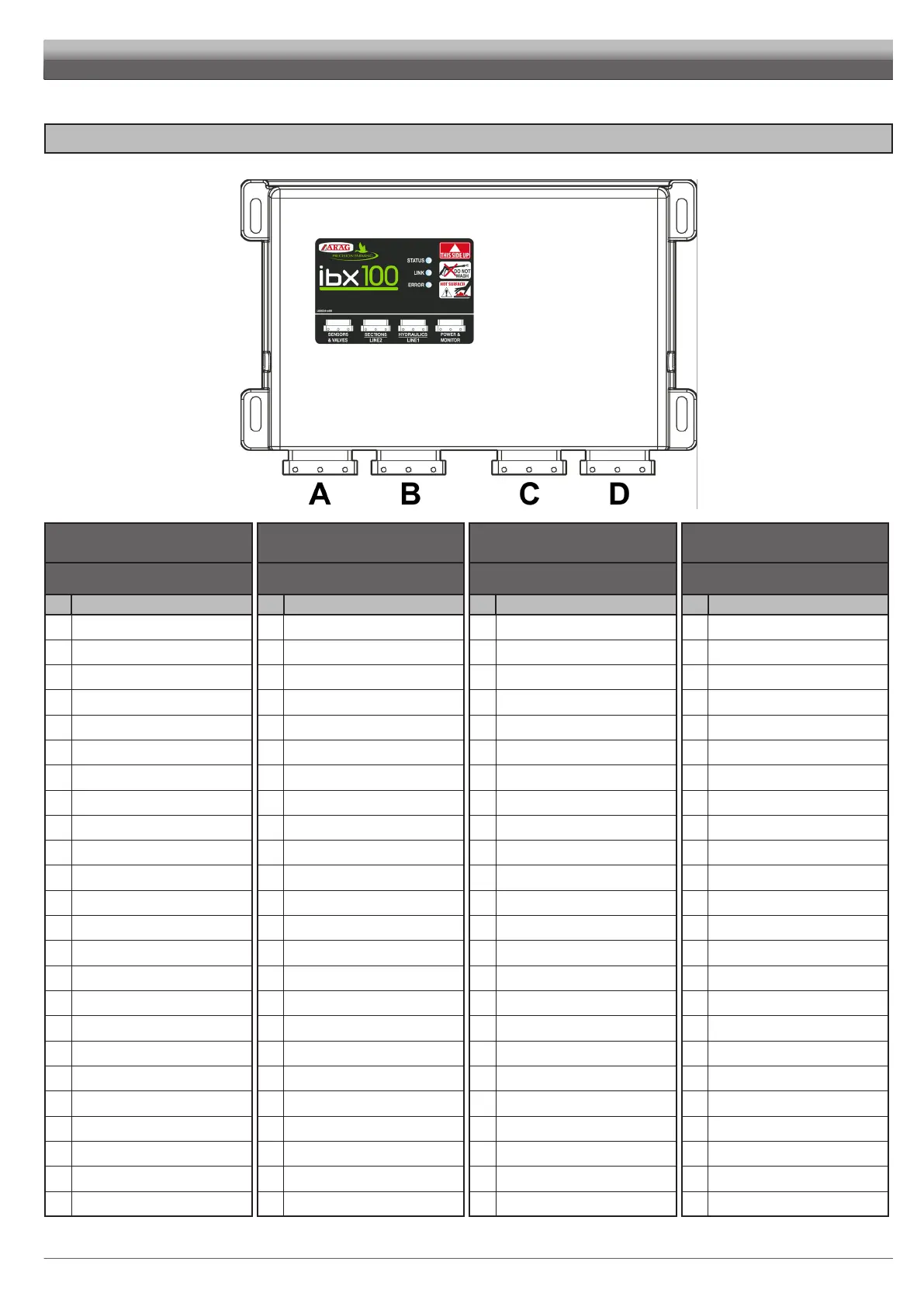

TECHNICAL DATA
SELETRON sprayer technology

A
SENSOR CABLE
PIN IBX100 signal
 
 Pressure sensor (M)
 Level sensor (L)
 -
 -
 -
 -
 GND sensor power supply
 Proportional valve
 Spraying activation / deactivation
 -
 -
 -
 -
 -
 
 Proportional valve
 Speed sensor (S)
 Flowmeter (F)
 Filling flowmeter (T)
 RPM sensor (X)
 Flashing light (Z)
 Boom lighting (Z)
 G GND valve power supply
B
SELETRON
Line 2
PIN IBX100 signal
 GND
 -
 -
 -
 -
 -
 -
 VBAS
 GND
 -
 CAN L
 CAN H
 -
 -
 -
 VBAS
 GND
 -
 -
 -
 -
 -
 -
 VBAS
C
SELETRON
Line 1
PIN IBX100 signal
 GND
 -
 -
 -
 -
 -
 -
 VBAS
 GND
 -
 CAN L
 CAN H
 -
 -
 -
 VBAS
 GND
 -
 -
 -
 -
 -
 -
 VBAS
D
ISOBUS CABLE
Tractor / Self-propelled
PIN IBX100 signal
 PWR
 -
 -
 -
 -
 -
 PWR
 PWR
 PWR GND
 -
 CAN L
 CAN H
 -
 -
 ECU-POWER
 PWR
 PWR GND
 PWR GND
 -
 -
 TBC-POWER
 TBC GND
 ECU-POWER GND
 PWR GND
