ARAG IBX100 - Control Unit Fixing

7
INSTALLATION
5.2 
Secure the control units on the back of the machine, close to the control unit and the hydraulic unit.
par. 5.3

 5.1.

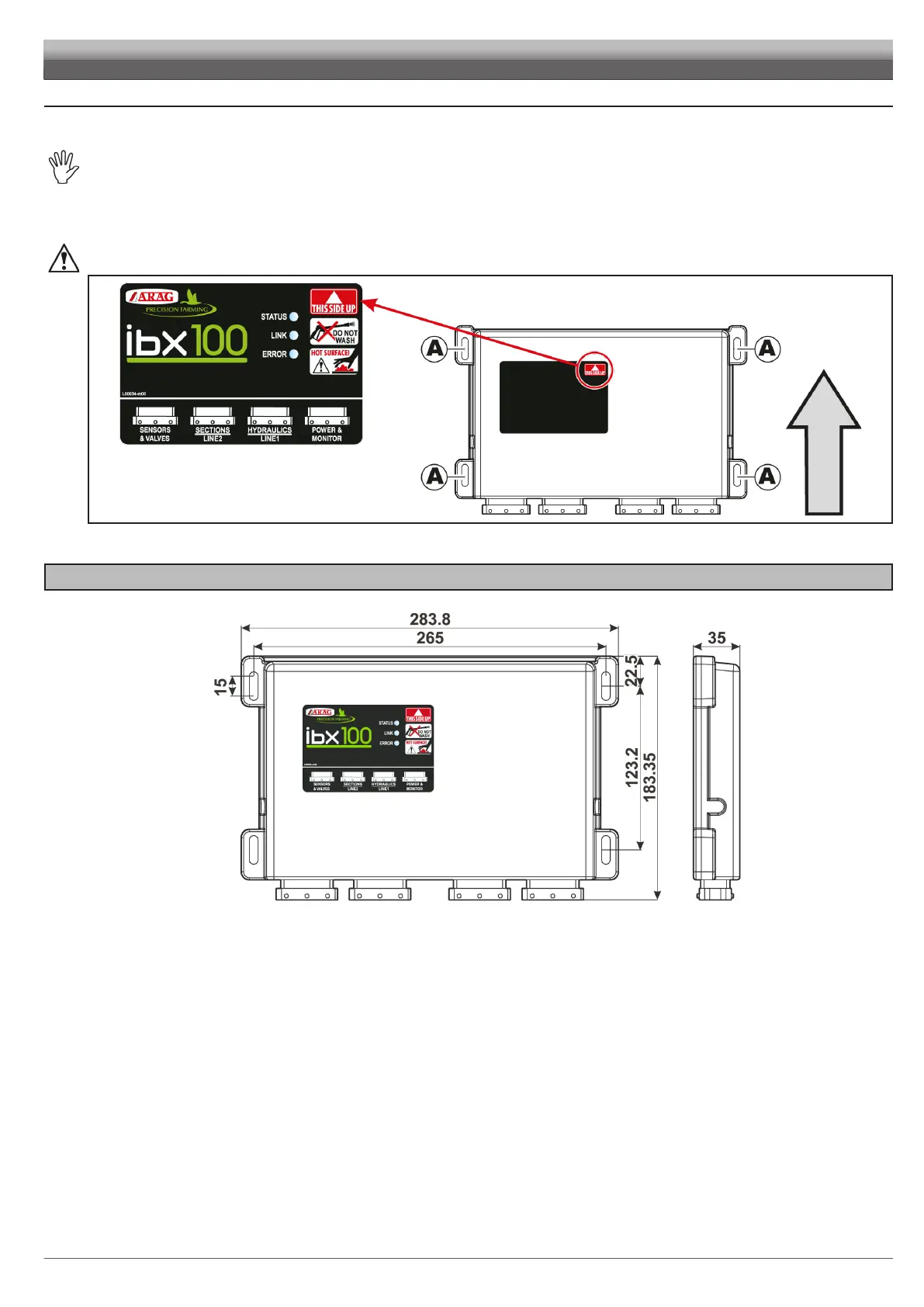

Respect the mounting direction of the control units, as specified in Fig. 4 (connectors shall be facing down).
Fix the ECU using the 4 bolts fitted into their slots (A, Fig. 4).


Unit of measurement: mm
OVERALL DIMENSIONS
