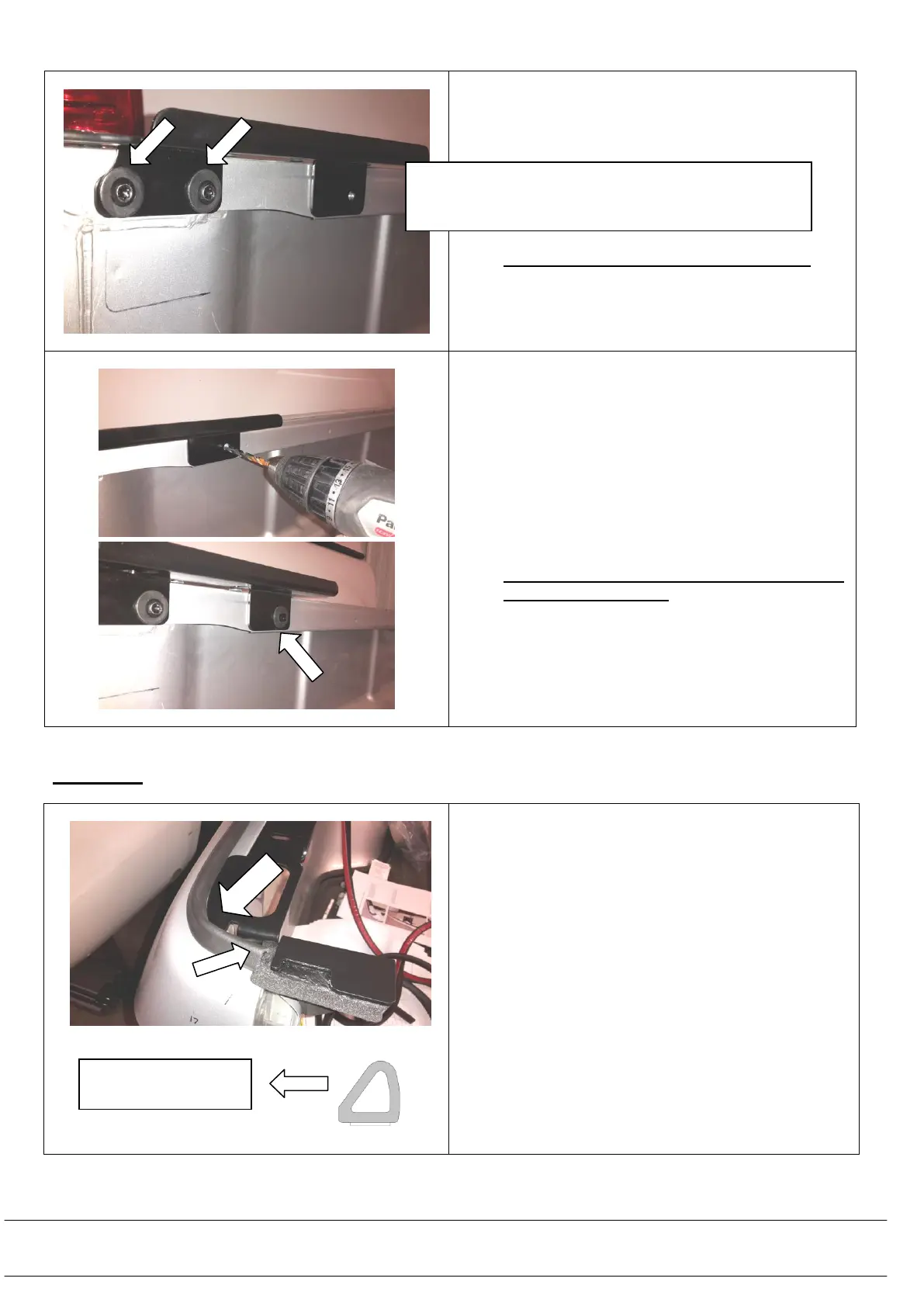

2.14) Remove the existing screws from the rear top
corners of the tub. Place LH rear tub mounting
bracket (3759969L) over the holes.
IF FITTING BED LINER GO TO SECTION 7
Repeat on the opposite side using the
opposite hand tub mounting bracket
2.15) Drill the hole in the front of the bracket using a
6.5mm drill bit to a depth of 15mm using a drill
stop. Apply rust inhibitor to the hole.
Insert into the hole an M6 x 20mm Hex Screw
(6151213) with M6 x 25mm (4584310) Flat
Washer under the head and M6 Flange Nut
(6151173) on the back, inside the tub lip flange.
Tighten to 9Nm
If fitting a Bed Liner, place 6250026 behind the
bracket prior to fitting.
Repeat on the opposite side using the
opposite hand tub mounting bracket.
SECTION 3: FITTING THE SEALS
3.0) From the seal kit (6171422), clean the top of the
vehicle’s side tub rails down using alcohol wipes.
Apply the seal (9009177) in the orientation as
shown,
Starting at the rear and against the foam pad.
Use from the kit M8 x 25 Torx head screw (6151625)
(use T40 bit) and M8 x 25.4mm flat washers (4581303)
in these 2 places and tighten to 22Nm.
This side to the
outside of the vehicle
