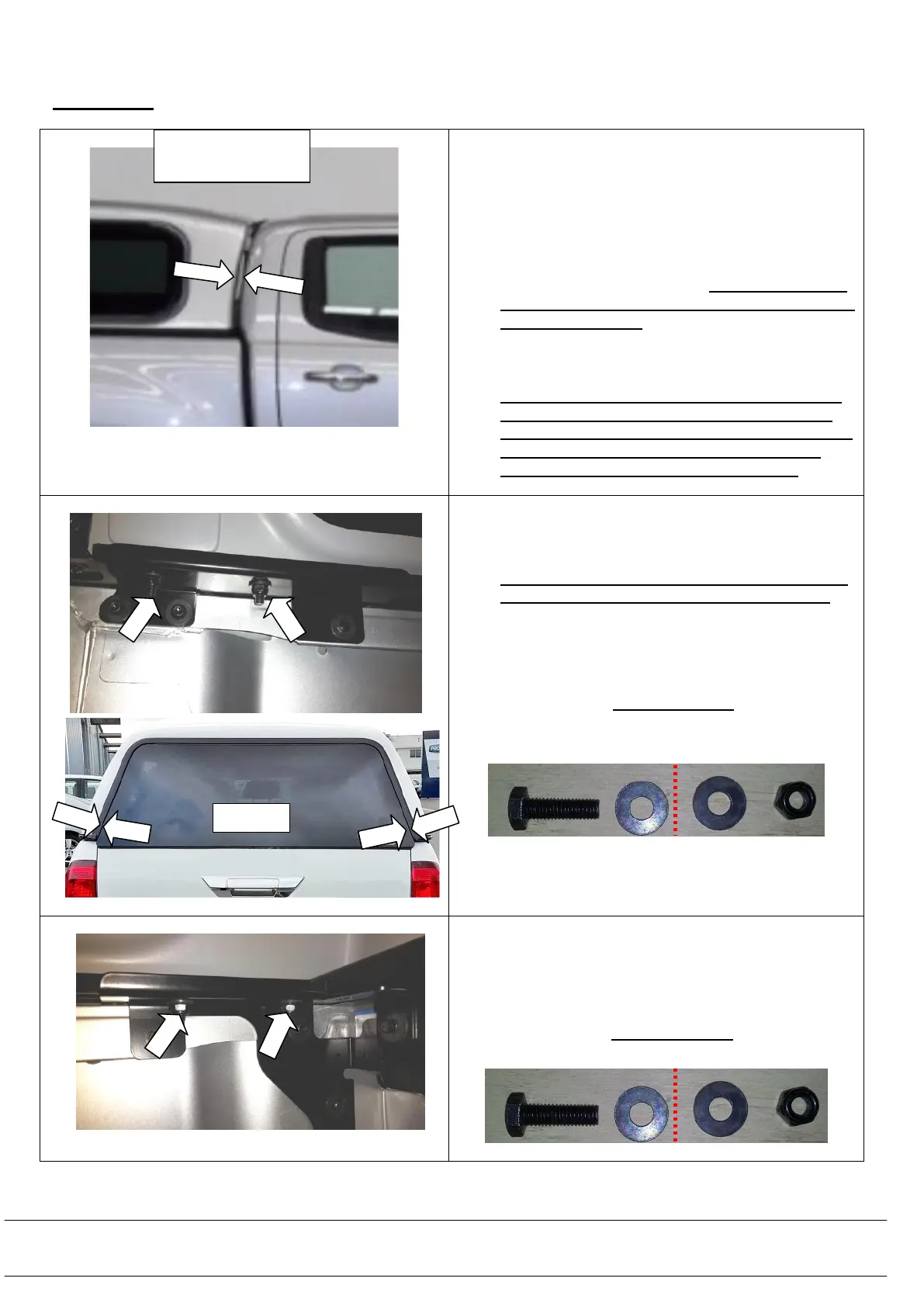

SECTION 4: FITTING THE CANOPY
4.0) Close the vehicle’s tailgate. Lift the canopy onto the
vehicle with 2 people. Avoid dragging the canopy
on the seals mounted on the tub as this could
dislodge them. Lift and place the canopy down
onto the vehicle’s tub. Open the door and tailgate.
The holes in the rear base rail corner inside,
should align to the centres of the slots on the
rear tub mounting brackets. Ensure the canopy
is evenly aligned on both sides to the tub and to
the vehicle’s cabin. Ensure pressure from the
door lower glass edge to the tailgate is not
excessive
There MUST BE 25mm or more clearance from
the canopy front pillars to the vehicle’s cabin
rear pillars. This is easily measured by inserting
a socket or round object with a 25mm outer
diameter between the canopy and cabin.
4.1) Align the holes in the base rail so the slots are
centred to the rear tub mounting brackets.
Ensure the gap between the door glass and the
door frame is even, and between 5 and 7mm.
Through the holes in the rear corner brackets fit
M8x25mm hex bolts (6151546) with M8x20mm
washers (4581307) down through the holes in the
top of the canopy’s base rail. Apply M8x20 washer
(4581307) and M8 nyloc nut (6151212) up from
underneath and tighten to 22Nm to the rear tub
mounting brackets.
4.2) Through the holes in the front corner brackets fit
M8x25mm hex bolts with M8x20mm washers down
through 6582445 Canopy Clamp making sure the
clamp is bearing down on the canopy base rails.
Apply M8x20 washer and nyloc nut up from
underneath and tighten to 22Nm.
25mm Minimum
Must not be less
