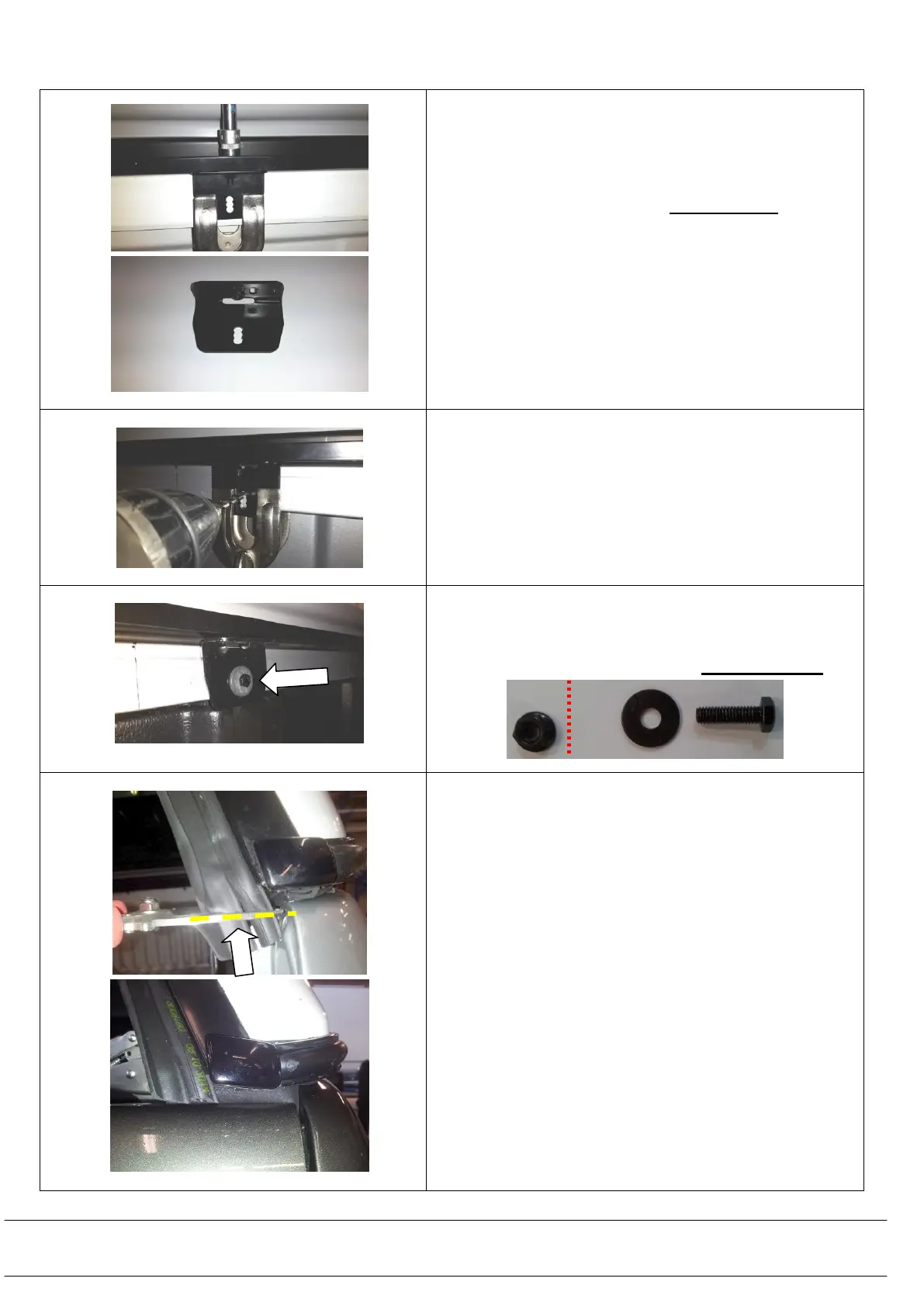

4.3) Locate the hole in the centre of the base rail on the
inside of the canopy. Clamp bracket (3759852) to the
tub lip aligning the top hole in the base rail of the
canopy. Apply an M6x20mm hex bolt (6151213) with
M6x20mm (4581082) washer down through the hole in
the top of the base rail. and tighten to 9Nm.
Do this on both sides of the vehicle.
4.4) Drill a 6.5mm through the uppermost hole location in
the (3759852) brackets with a 12mm deep drill stop
fitted. Remove any swarf.
4.5) Apply rust inhibitor to the holes. Fit M6 x 20 mm hex
bolt (6151213), M6 x 25mm flat washer (4584310)
through the bracket and on the inside secure with M6
wizzlock (6151773) flange nuts. Tighten to 9Nm.
4.6) Cut the lower door gutter seals in line with the top of the
tailgate on both sides of the door so they just
touch the top of the vehicle’s tailgate
