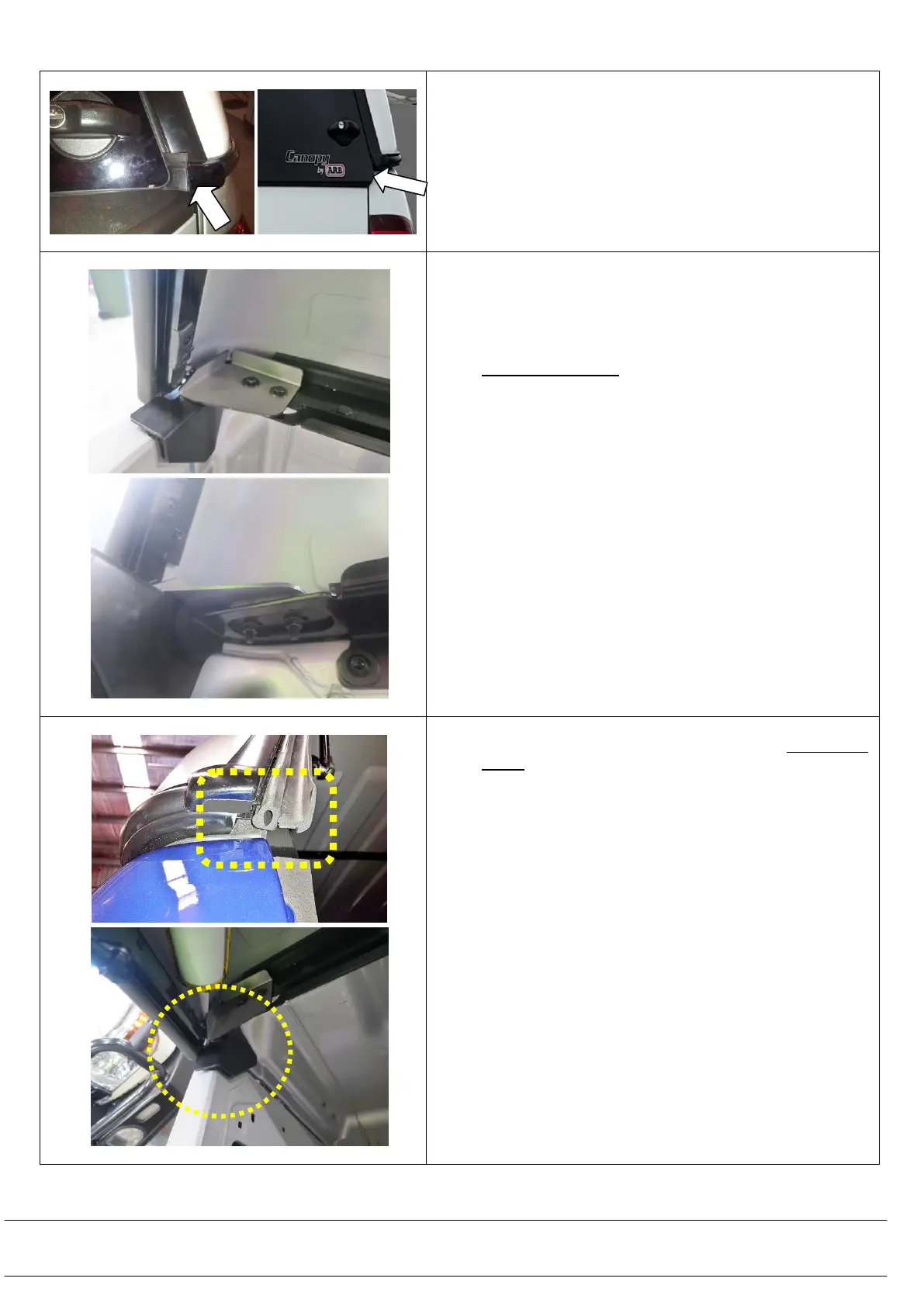

4.7) Cut the lower door sash seal attached to the glass on the
door at both ends to match the corners of the glass.
4.8) Fit both 3750205R&L rear corner brackets to bed rails
using M6 x 20 bolts, M6 x 20 washers and M6 flange
nuts.
Position in the corner close to but not touching the door
frame.
Do nuts up to 9Nm
4.9) With the tailgate down and door open, apply neutral cure
silicon up into the rear corner tailgate sealing
bracket areas, between the tub and the door frame and
canopy base rail and on the inside between the
bracket, door frame and shell to fully seal.
Clean up excess and smooth the silicon down on the
inside of the canopy.
