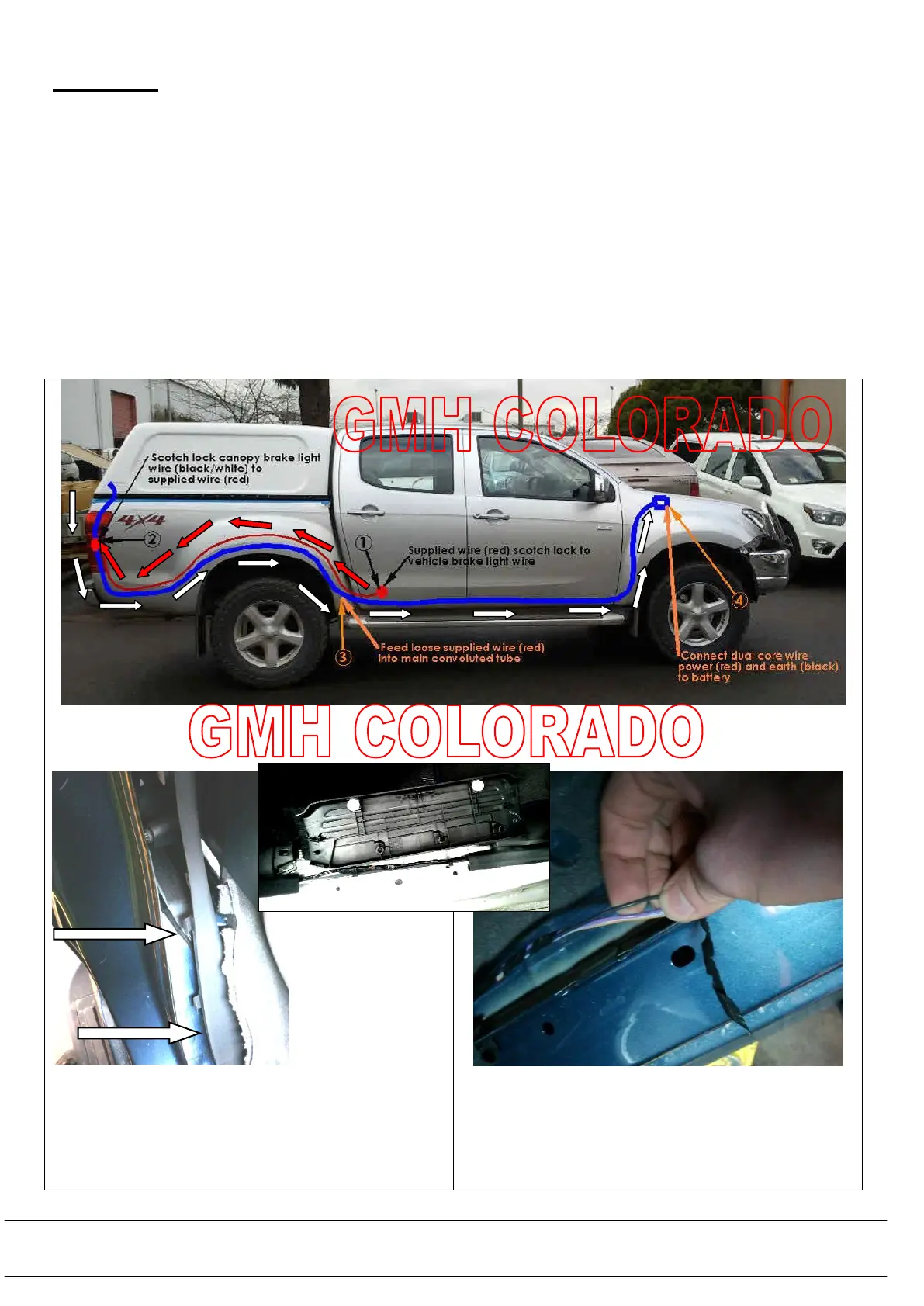

SECTION 5: WIRING THE CANOPY
IMPORTANT
WIRING INSTALLATION IS DIFFERENT FOR GMH COLORADO AND ISUZU DMAX
Splicing into the rear taillights of a Colorado will cause the canopy brake light to run when the vehicles clearance lights
are activated.
THE FOLLOWING INSTRUCTIONS ARE DIVIDED INTO TWO SECTIONS FOR
COLORADO / ISUZU DMAX
IF FITTING THE CANOPY TO THE ISUZU DMAX; Go to page 21
5.1) Go to the right-hand side rear door. Using panel
removal tools, carefully remove the bottom kick
panel and pinch weld seal. Using the removal tools
pry the rear corner cover piece away, exposing the
metal surfaces.
5.2) Locate the high mount stoplight power wire.
This should be PURPLE/WHITE. Double check all
wires, as to ensure the seat belt pre-tensioners or
interior light are not picked up.
