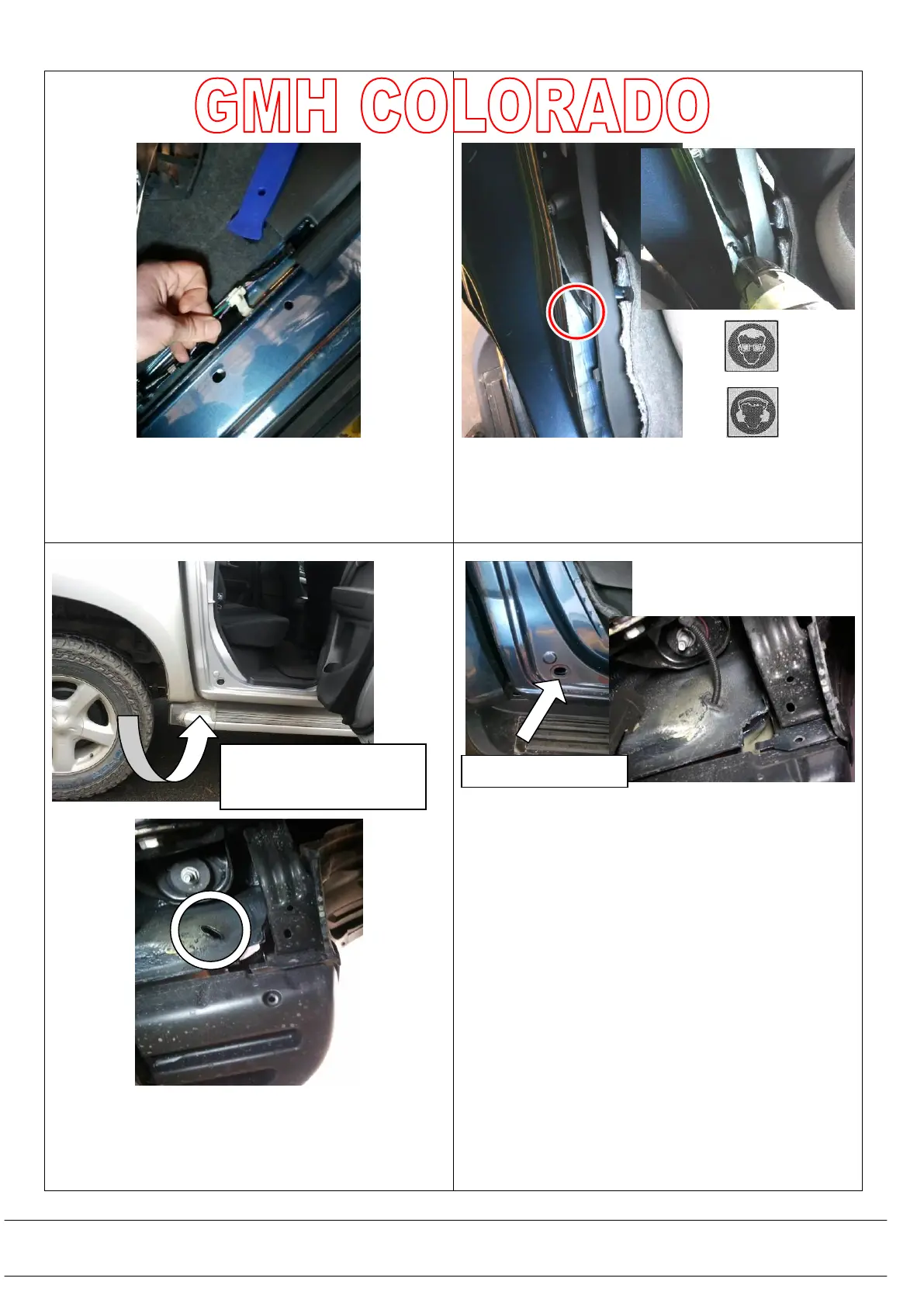

5.3) Scotch lock the loose 0.85mm red wire to the vehicle
brake wire. Cut the PURPLE/WHITE wire on the
brake side of the Scotch Lock to disconnect the high
mount stop light. Tape the scotch lock to avoid
rattles
5.4) Drill a 12 mm hole into the sheet metal into the
cavity in the lower rear corner as shown. Deburr the
hole, thoroughly clean away any swarf. Paint any
bare metal to prevent corrosion.
5.5) Using convoluted tube, and grommet. Feed the red
wire from the cabin into the rear corner cavity.
Feed the wire and tube out of the cavity through the
lower slot.
Cut the slot shaped grommet to fit over the
convoluted tube. Reinstall the slot shaped grommet
with convoluted tube.
Underneath the vehicle, locate and remove the slot
shaped grommet which leads into the rear corner cavity
where shown.
NOTE: A trace may aid installation through the
cavity. It is possible to “view” inside the cavity, by
removing the outer grommet shown in the picture
above.
EXISTING SLOT
UNDERNEATH VEHICLE
IN THIS SECTION
