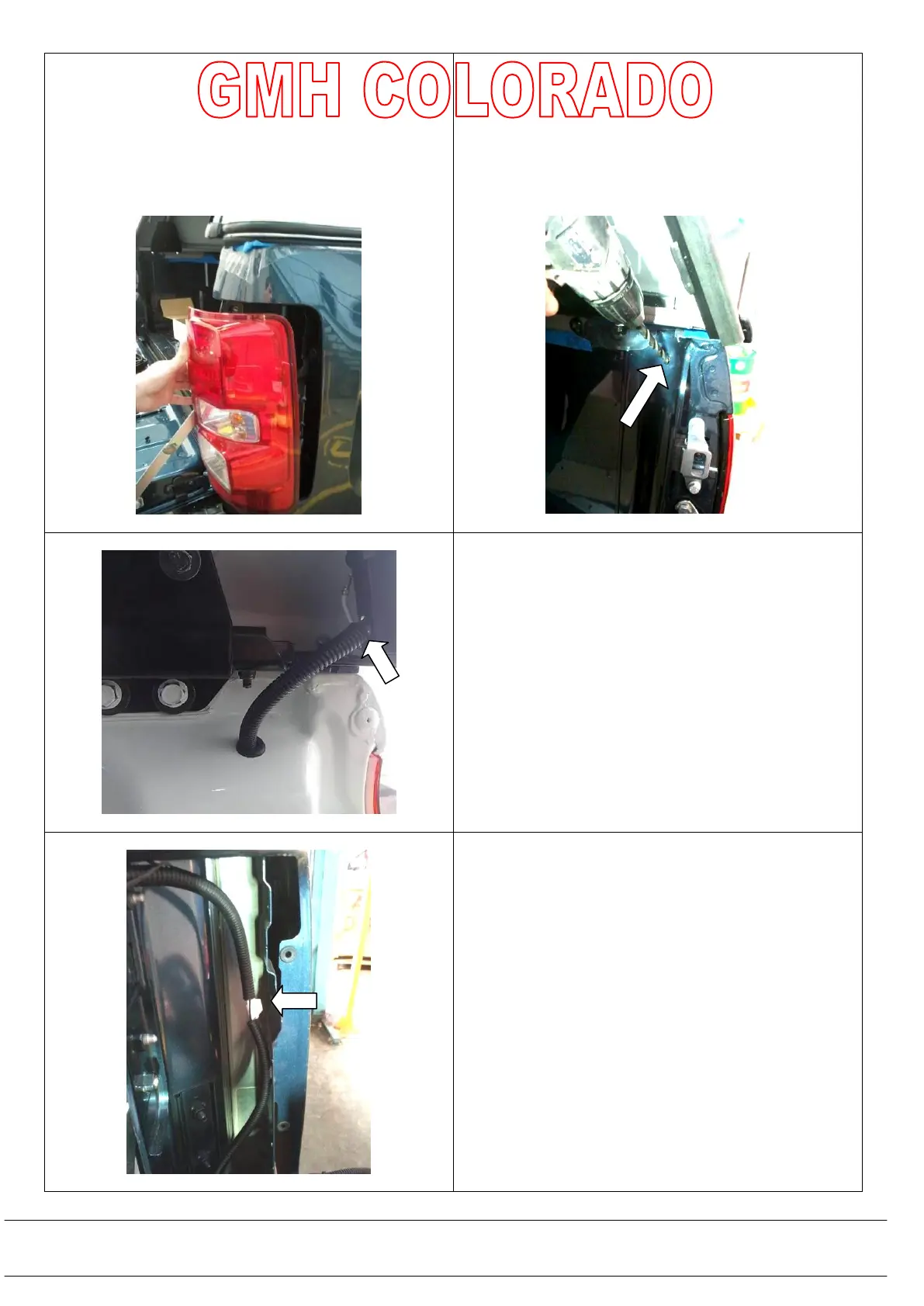

5.6) Remove tail light assembly right hand side. Do this
by first undoing the 2 screws in the tailgate opening.
Then push the light backward
5.7) Drill 12mm hole through ute body / liner as shown.
Deburr and paint any bare metal, clean away any
swarf.
5.8) Run 2 Core Sheathed Wire (RED Positive BLACK
Negative) and Stop Light (BLACK WHITE Positive)
from the door frame through 250mm length of
conduit in behind rear taillight.
Fit grommet to hole in body.
Fit the conduit to the doorframe and through the ute
body / liner.
5.9) Continue feeding convoluted tube with dual core wire
down the chassis rail to the red wire exiting the
cabin, avoiding any sharp hot or moving objects.DO
NOT CABLE TIE THE CONVOLUTED TUBE YET.
Feed the loose red wire through the convoluted tube
back up into the tail light cavity. Scotch lock the
LOOSE RED wire to the canopy brake light wire
(BLACK/WHITE).
Test the brake light to ensure it works.
