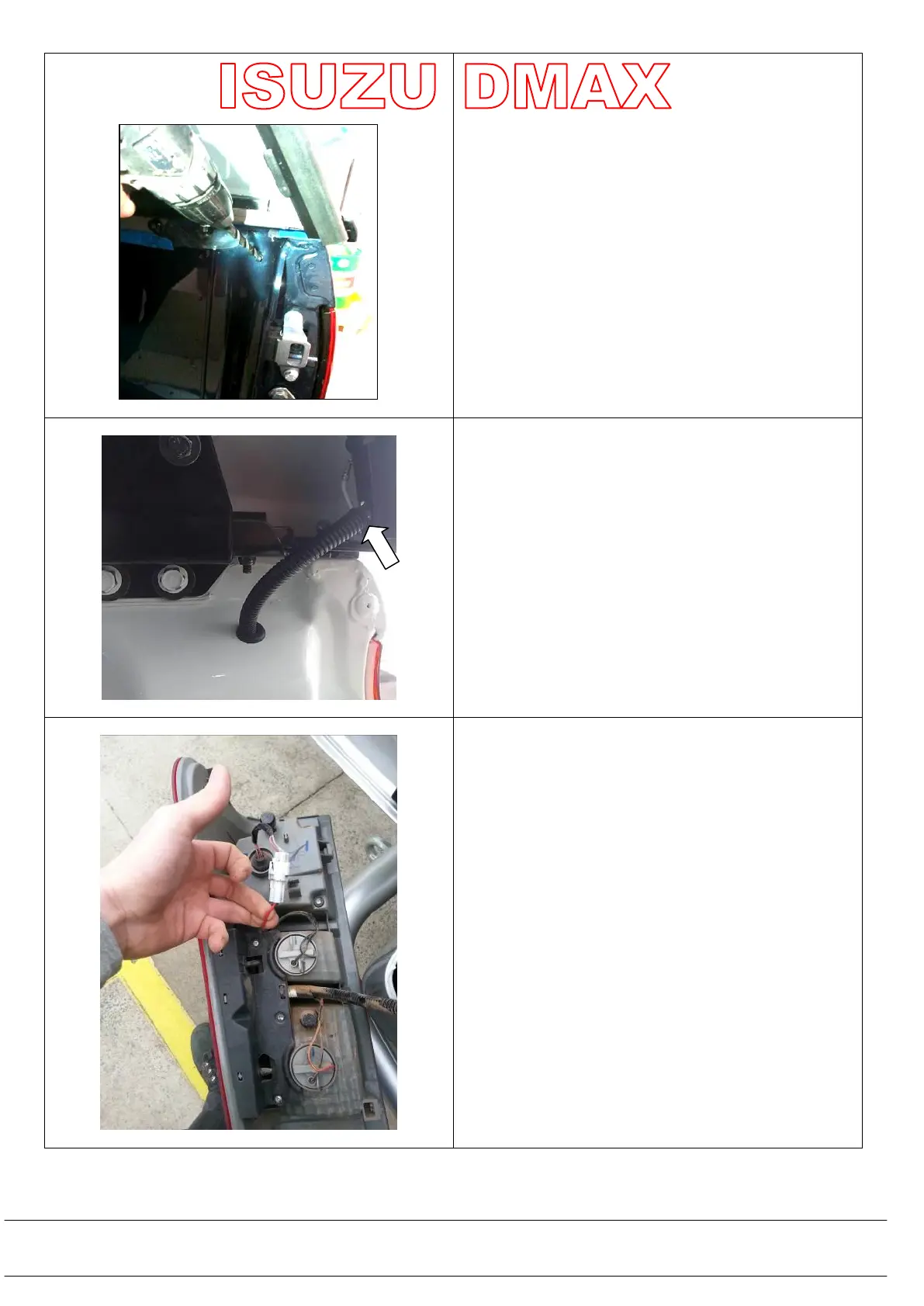

5.13) Drill 12mm hole through Ute body / liner as shown.
Deburr hole and apply rust inhibitor to bare metal,
clean away any swarf.
5.14) Run 2 Core Sheathed Wire (RED Positive BLACK
Negative) and Stop Light (BLACK WHITE Positive)
from the door frame through 250mm length of
conduit in behind rear taillight.
Fit grommet to hole in body.
Fit the conduit to the doorframe and through the
ute body / liner.
5.15) Locate the RED wire running to the top black plug
of the tail light.
Fit the CANOPY BLACK/WHITE wire to the
VEHICLE RED wire using the scotch lock.
