ARB SPORT GUARD (P/N: 10051584) – FRONT BRACKETS ONLY TO BE FITTED PRIOR TO LINER
6.10) Complete all sections up to 2.1 first. Fit Front
canopy mounting brackets top 2 bolts only as
the lower 2 bolts must pass through the bed
liner using spacer washers to support tie the
standard down brackets.

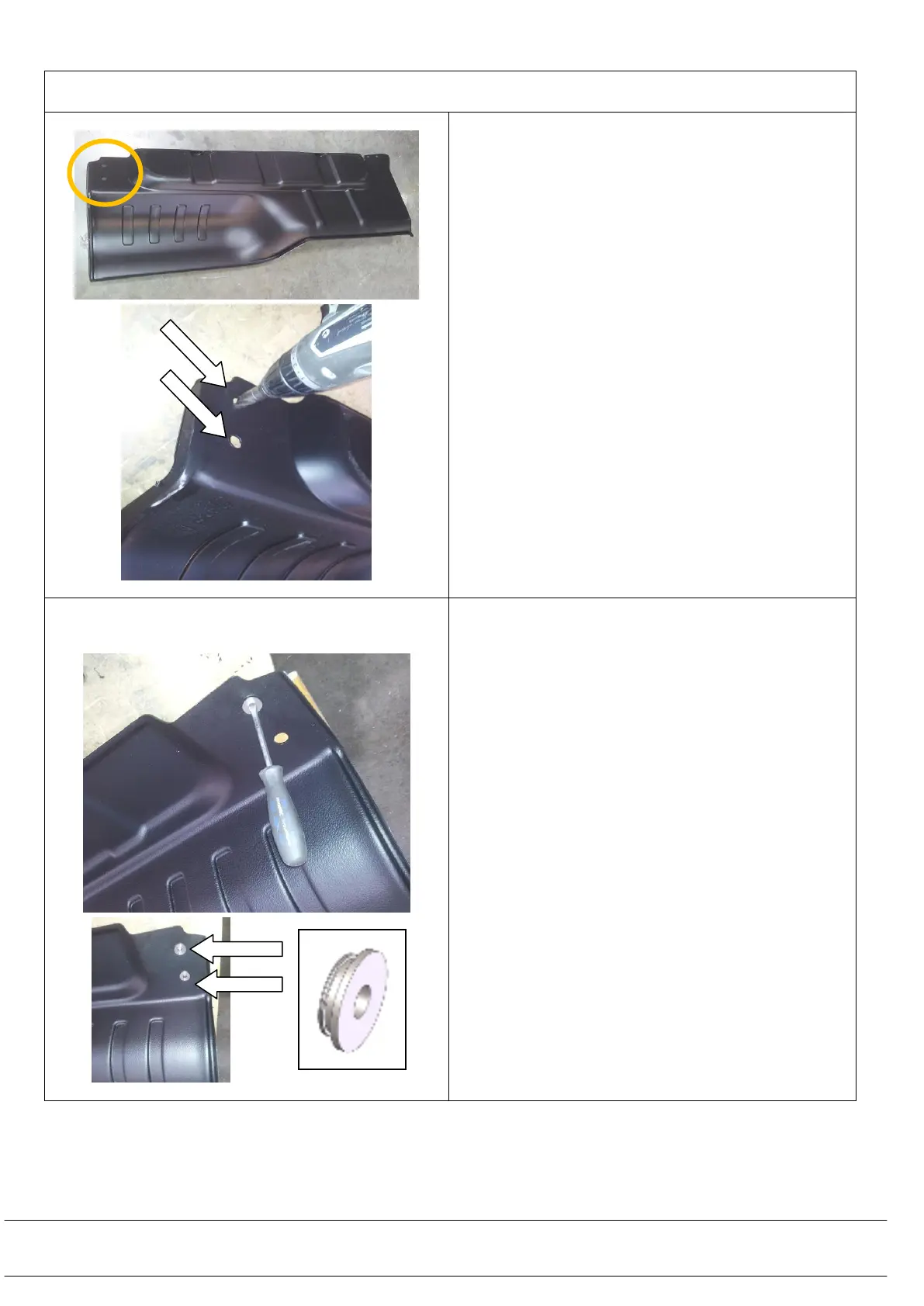

For the side panels of the Sport Guard (LH side
shown), drill out the front two top holes to 20mm
diameter. Deburr holes.
Repeat for the RH side panel.
6.11) Snap in the large spacers from the Sport Guard
hardware kit on the visual face side of the side
panels. A screw driver will help to lever them to
snap them in.
Repeat for the RH side panel.
