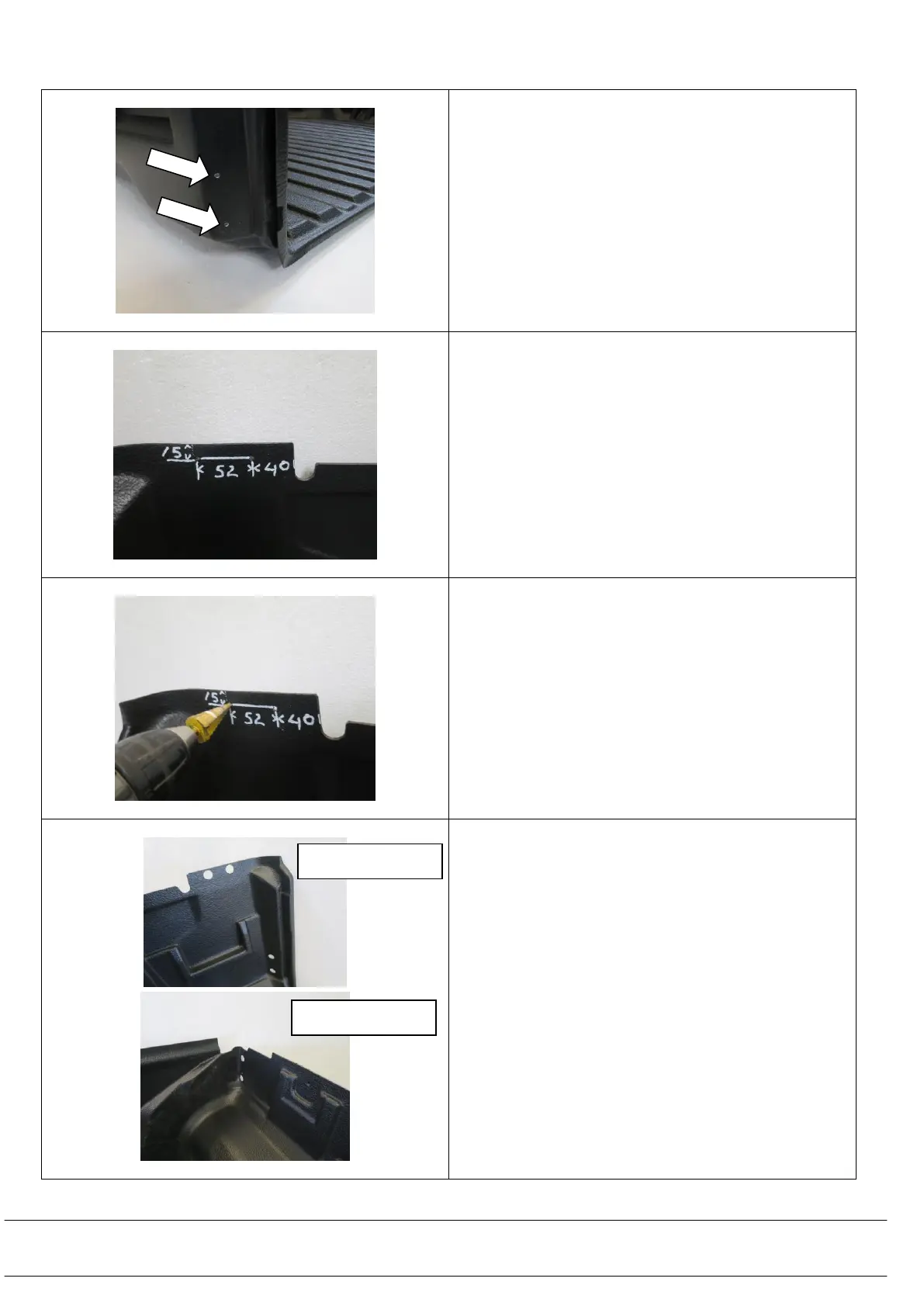

6.23) Mark REAR Lower tie down holes on both Left
and Right hand sides of the liner. These are
marked on part by dimples
6.24) These require spacers. Drill 5mm pilot holes
6.25) Mark REAR Mount Bracket holes on both Left and
Right hand sides of liner.
6.26) These require spacers to be fitted later. Drill 5mm
pilot holes.
6.27) Use step drill and drill to 20mm diameter for all
mount points which require spacers.
6.28) The completed trim should look like that in the
pictures opposite
