ARCCAPTAIN 55 Pro - Installation and Connection; Installation of the Cutting Torch

8

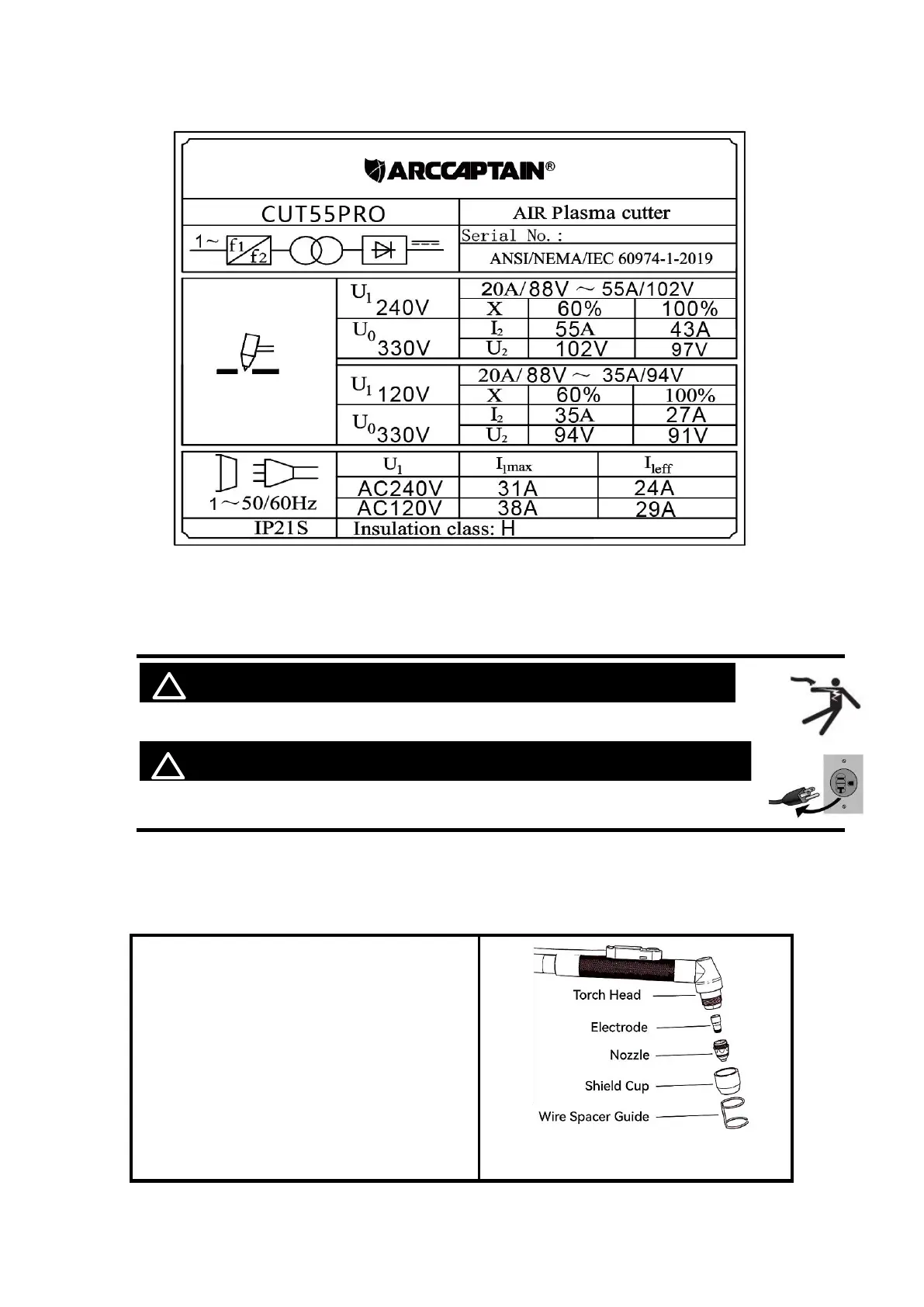

Figure 6: Nameplate
4.INSTALLATION AND CONNECTION
! WARINING BEWARE OF ELECTRIC SHOCK!
Check and follow the instructions listed in the “Safety” section of this manual.
! WARINING DO NOT set up without SWITCH OFF !
4.1 Installation of the cutting torch
Check the torch for proper assembly. Install proper torch parts for the desired application
(Refer to the following Torch head figure).
NOTE: The power supply will NOT operate unless the torch shield cup is fully seated
against the Parts in Place pins in the torch head.
1. Connect the Electrode into the Torch
Head.
2. Connect the Nozzle into the Torch
Head.
3. Connect the Shield Cup into the Torch
Head.
4. Connect the Wire Spacer Guide onto
the Shield Cup
Figure 7 cutting torch head
