NOTES
1- Please read the service handbook before making assemble and
disassemble of refrigerator parts
2- Screw, nut and some connecting elements are not served
service number additionally.
Stock numbers of screws which are needed be used must be
checked from spare part list.

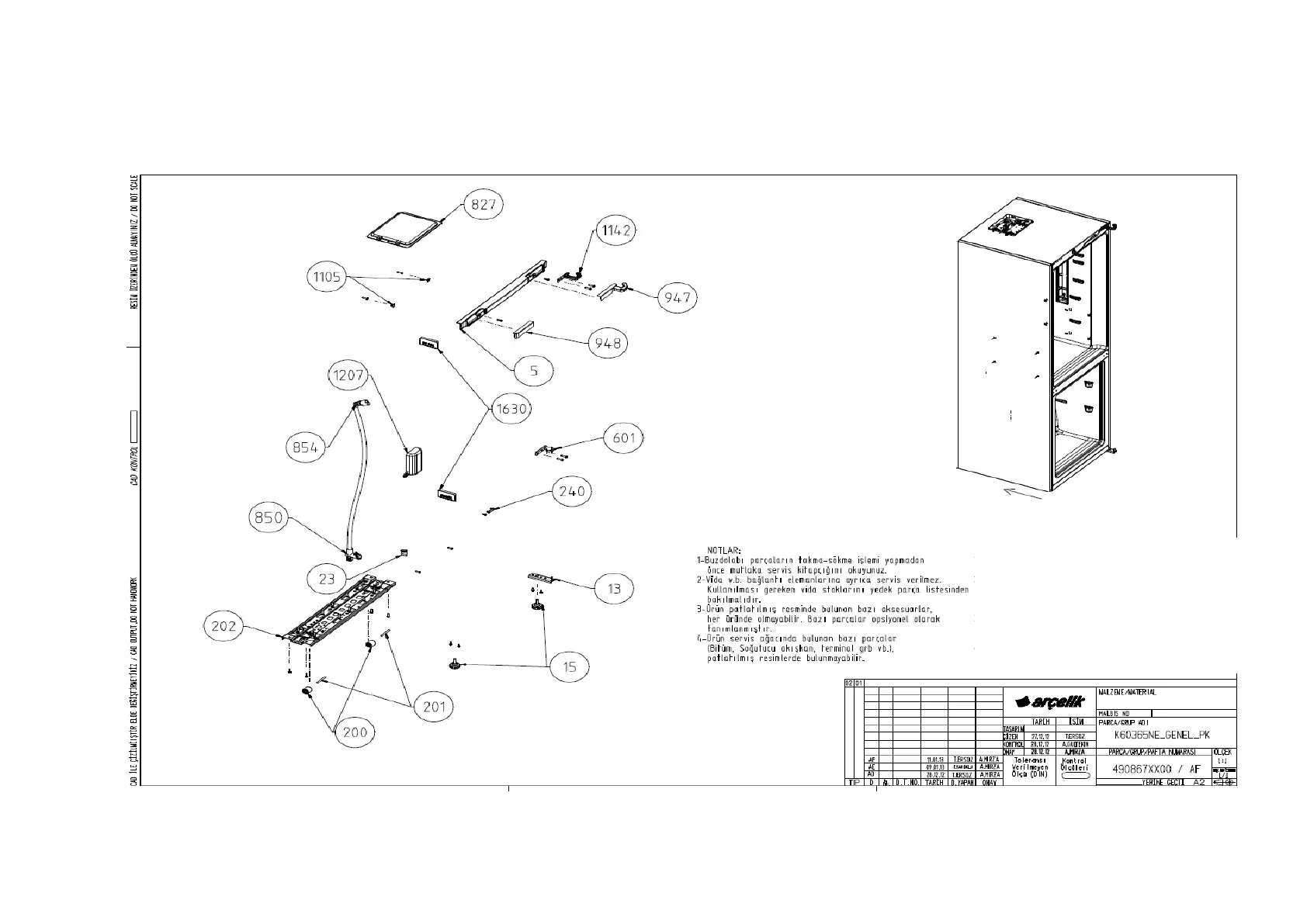

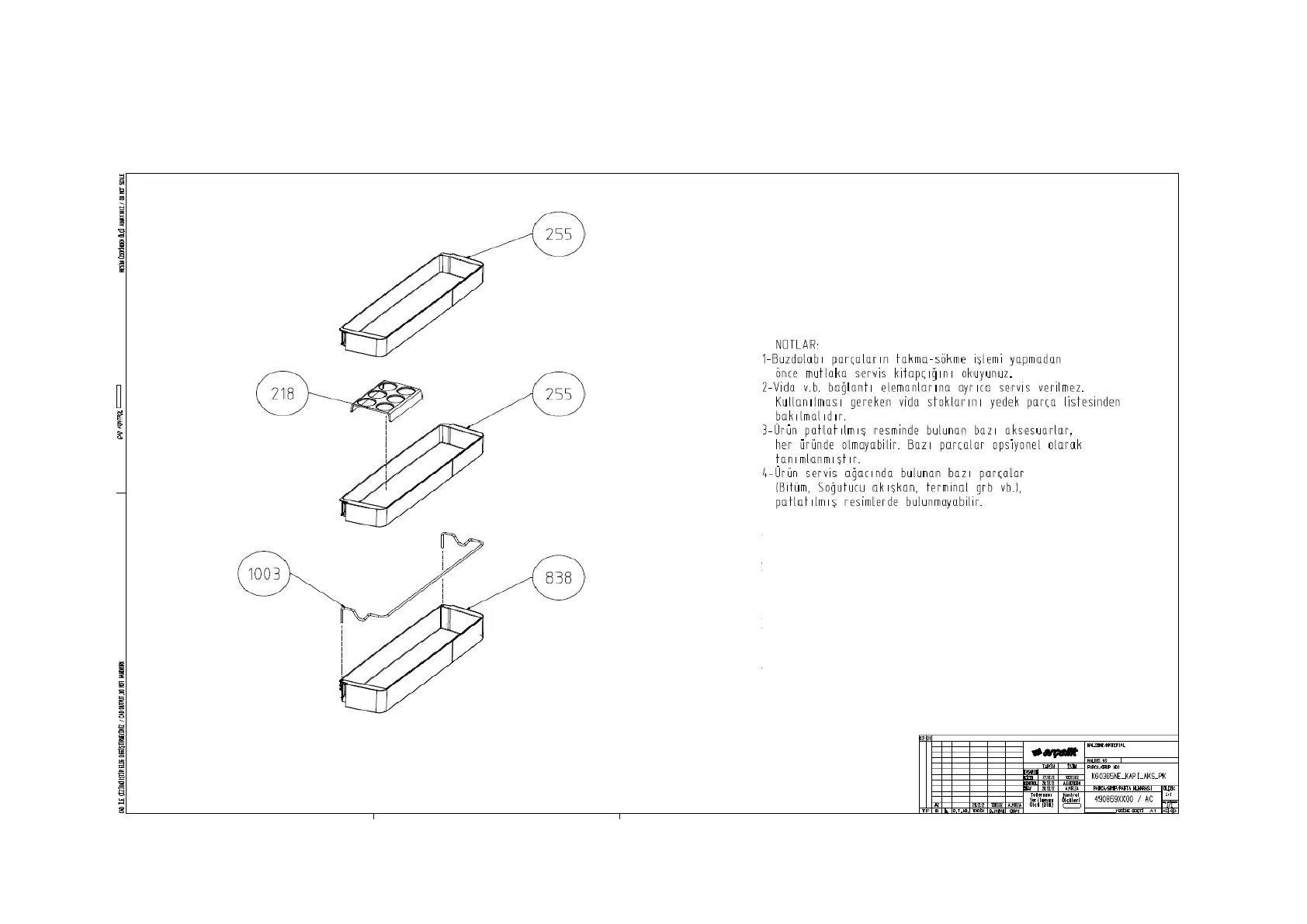

3- Some of the accessories which are in the exploded view may
not exist in same models.
Some of the parts have described optionally.
4- Some of the parts in the product service tree (Bitumen, cooling
gas, some electrical components etc.) may not be available in
exploded views.
