NOTES
1- Please read the service handbook before making assemble
and disassemble of refrigerator parts
2- Screw, nut and some connecting elements are not served
service number additionally.
Stock numbers of screws which are needed be used must be
checked from spare part list.

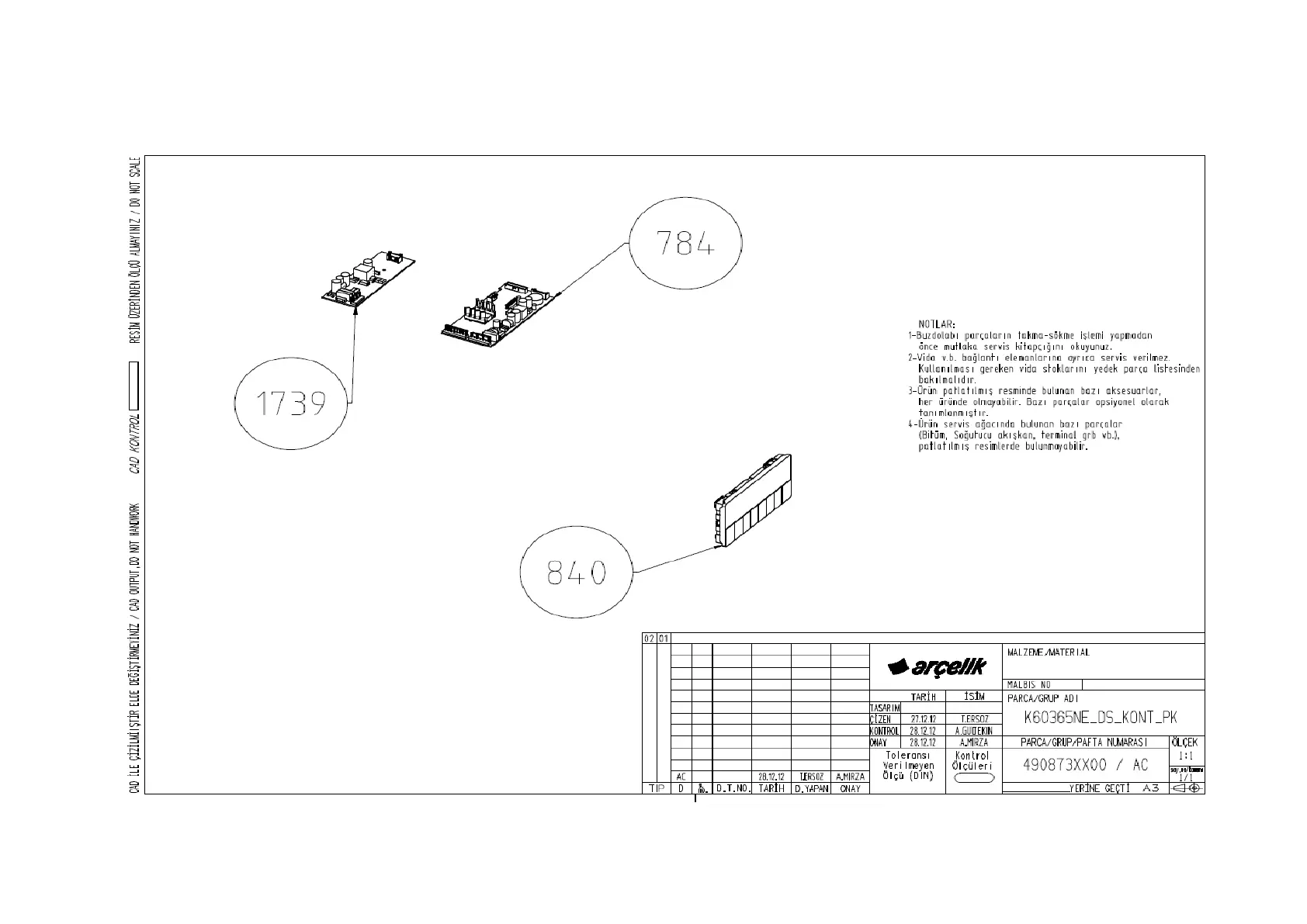

3- Some of the accessories which are in the exploded view
may not exist in same models.
Some of the parts have described optionally.
4- Some of the parts in the product service tree (Bitumen,
cooling gas, some electrical components etc.) may not be
available in exploded views.
