34
ATV2170A
SP242

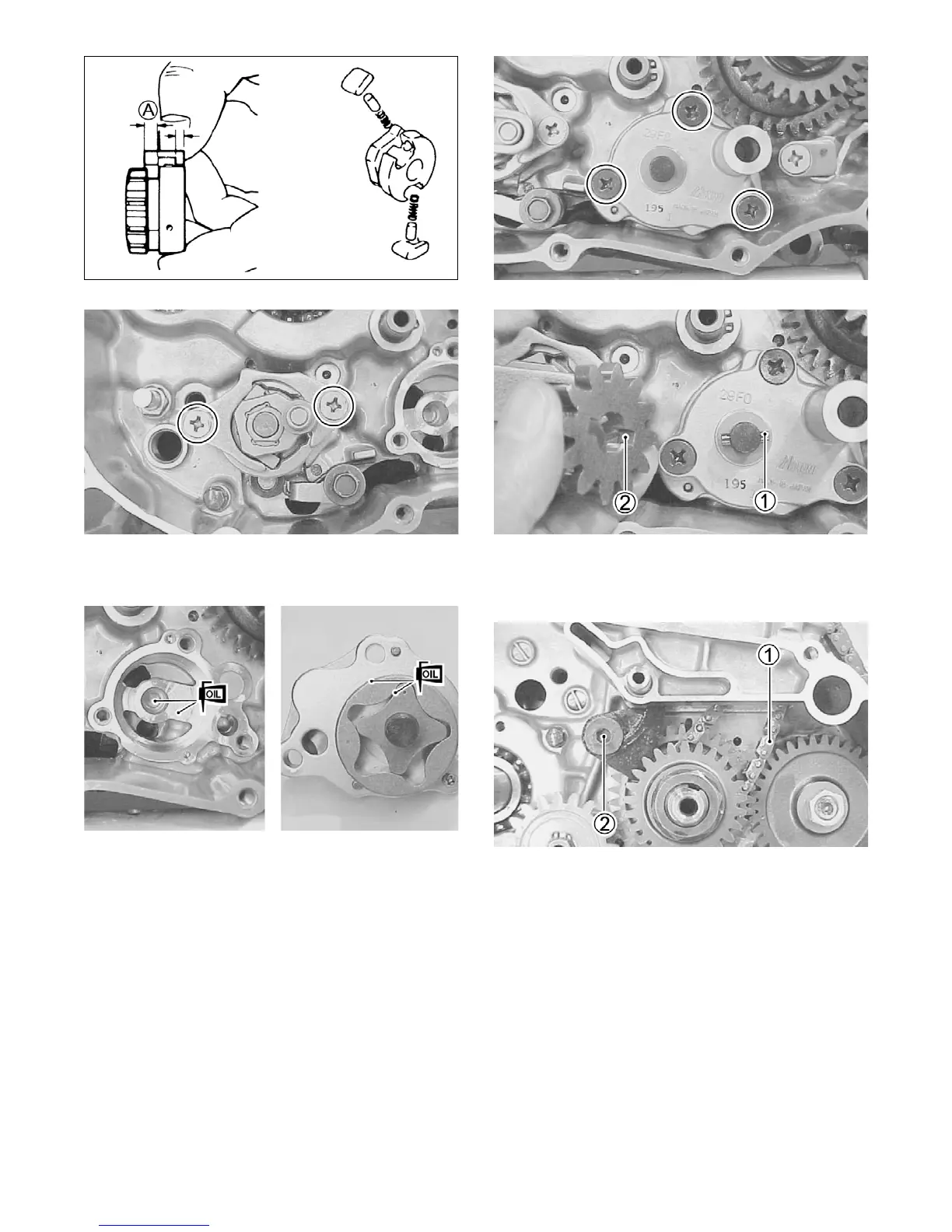

8. Apply engine oil to the moving parts of the oil pump
and all mating surfaces.
SP238A
9. Apply red Loctite #271 to the oil pump mounting
screws and tighten securely; then install the oil pump
driven gear aligning the pin (1) with the groove (2)
and install the circlip.
SP240
SP241
10. Install the cam chain (1) onto the sprocket; then
install the cam chain tensioner and tighten the
mounting bolt (2) to specifications.
SP251
F. Oil Pipe
G. Clutch
NOTE: Steps 1-10 of the preceding sub-section
must precede this procedure.
11. Apply engine oil to the O-rings on the oil pipe; then
install and tighten the hold-down bolt securely.
