198
FZ103A

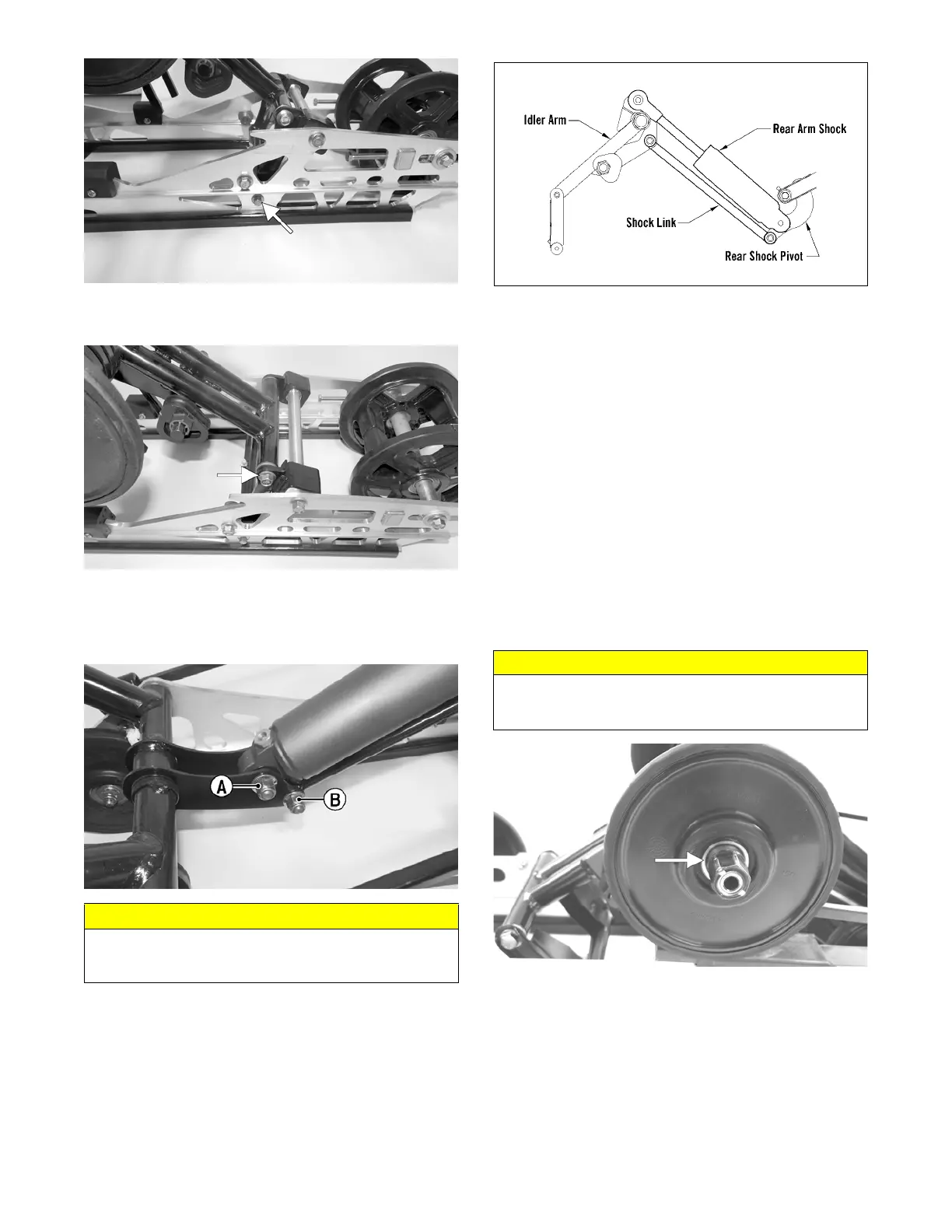

2. Install the rear arm onto the idler arm with an alumi-
num axle and two cap screws. Tighten to 40 ft-lb.
FZ101A
3. With the sleeves installed, install the shock absorber
link to the lower mounting hole of the rear shock
pivot; then install the shock absorber with cap screws
(A) and (B) and lock nuts. Tighten securely.
FZ102A
0742-877
4. With the sleeves installed, install the shock absorber
link to the lower mounting hole of the idler arm
along with the cap screw and lock nut; then secure
the shock absorber to the idler arm with cap screws
and lock nuts. Tighten securely.
NOTE: Do not over-tighten the shock absorber cap
screw as the shock eyelet must be free to pivot.
NOTE: Install the rear arm springs onto the
adjuster blocks after the skid frame has been
installed.
5. Slide the sleeve and spring onto the idler arm.
6. Place the spring slide and slide block (with spring in
slide block) into position on the slide rail. Secure
with a cap screw and washer. Tighten to 20 ft-lb.
7. With wheel insertion tool, install the rear upper idler
wheel on the idler arm.
MS072A
8. Install the idler spacer collar onto the idler arm.
CAUTION
When installing the shock absorber link, note that the
offset of the link eyelets are directed away from the rear
arm shock absorber for proper clearance.
CAUTION
When driving the idler wheel onto the idler arm, use a
tool to contact the inside race of the bearing or damage
to the wheel or bearing may occur.
