1.9.3 onSpa Interface Through LAN Cable
The following diagram reects onSpa interface through a LAN Cable connected to the Spas Processor Card and
home Router.
onSpa and Web Connect User Guide
onSpa and Web Connect User Guide Version 1 Revision Draft 1
Page 8 of 24 Issued Mar 2016
1.9.3 onSpa Interface Through LAN Cable
The following diagram reflects onSpa interface through a LAN Cable connected to the
Spas Processor Card and home Router.
onSpaInterfaceThroughLANCable
Internet
2011GlobalEcoPAK
HomeRouter
LANCable
Connectedto
ProcessorCard
and
HomeRouter
WebEnabled
Devicewith
AppInstalled
Topside
Controller
1.9.4 Web Connect Interface Through EoP
The following diagram reflects onSpa interface with Web Connect through EoP.
WebConnectThroughEoP
2011GlobalEcoPAK
EopModule
INPower
Point
HomeRouter
Electrical
PowerLine
Delivering
networkdata
EopModulein
Pak
connectedto
motherboard
WebEnabled
Devicewith
AppInstalled
Topside
Controller
MyArctic
SpaServer
Internet
Computer
1.9.2 onSpa Interface Through WIFI Extender
The following diagram reects onSpa interface through a WIFI Extender
onSpa and Web Connect User Guide
Version 1 Revision Draft 1 onSpa and Web Connect User Guide
Issued Mar 2016
Page 7 of 24
1.9.1 onSpa Interface Through EoP
The following diagram reflects onSpa interface through a EoP.
onSpaInterfaceThroughEoP
Internet
2011GlobalEcoPAK
EopModule
INPower
Point
HomeRouter
Electrical
PowerLine
Delivering
networkdata
EopModulein
Pak
connectedto
motherboard
WebEnabled
Devicewith
AppInstalled
Topside
Controller

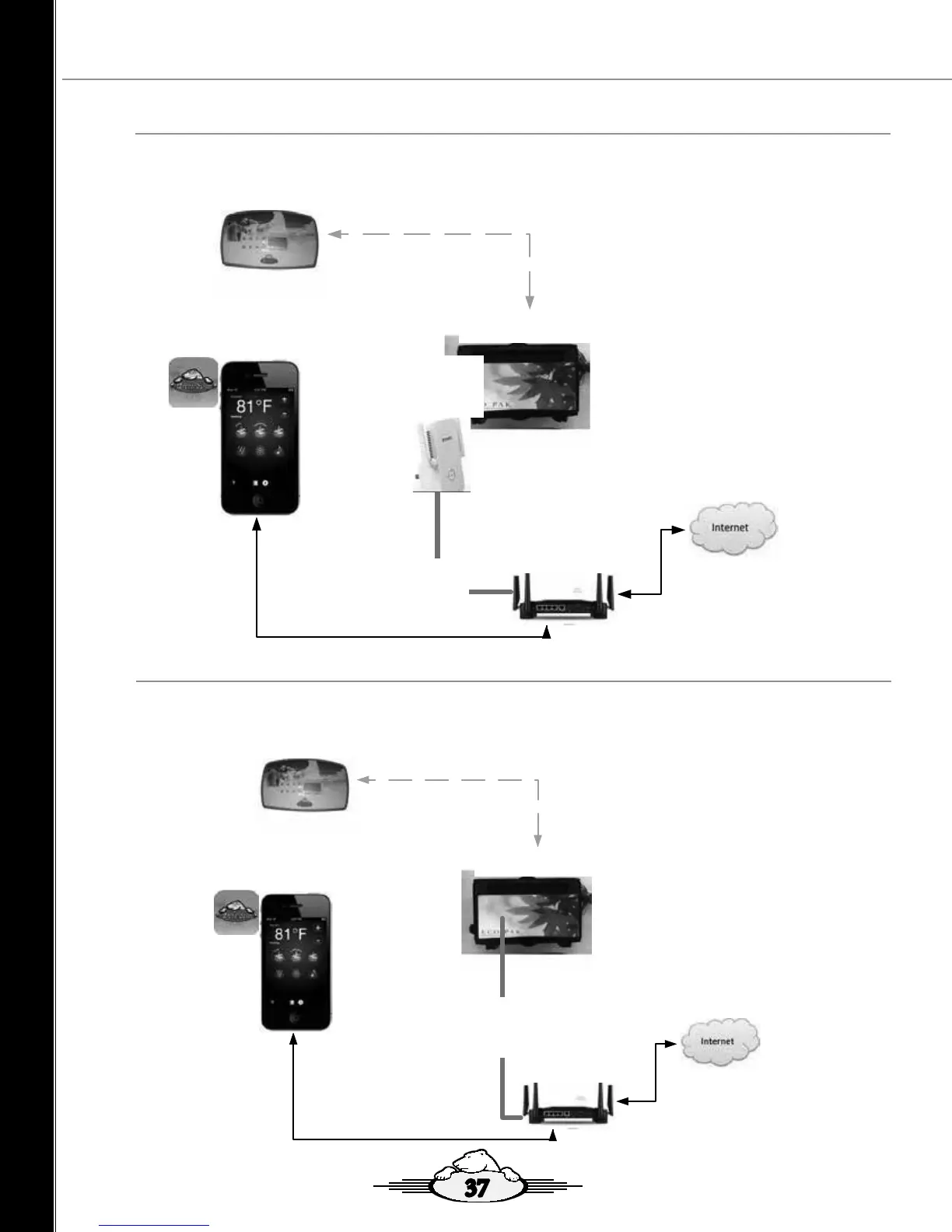

1.9.2 onSpa Interface Through WIFI Extender
The following diagram reflects onSpa interface through a WIFI Extender
onSpaInterfaceThroughWIFIExtender
Internet
2011GlobalEcoPAK
HomeRouter
WIFI
Delivering
networkdata
WebEnabled
Devicewith
AppInstalled
WIFIExtender
inPak
connectedto
motherboard
Topside
Controller
Topside
Controller
Topside
Controller
