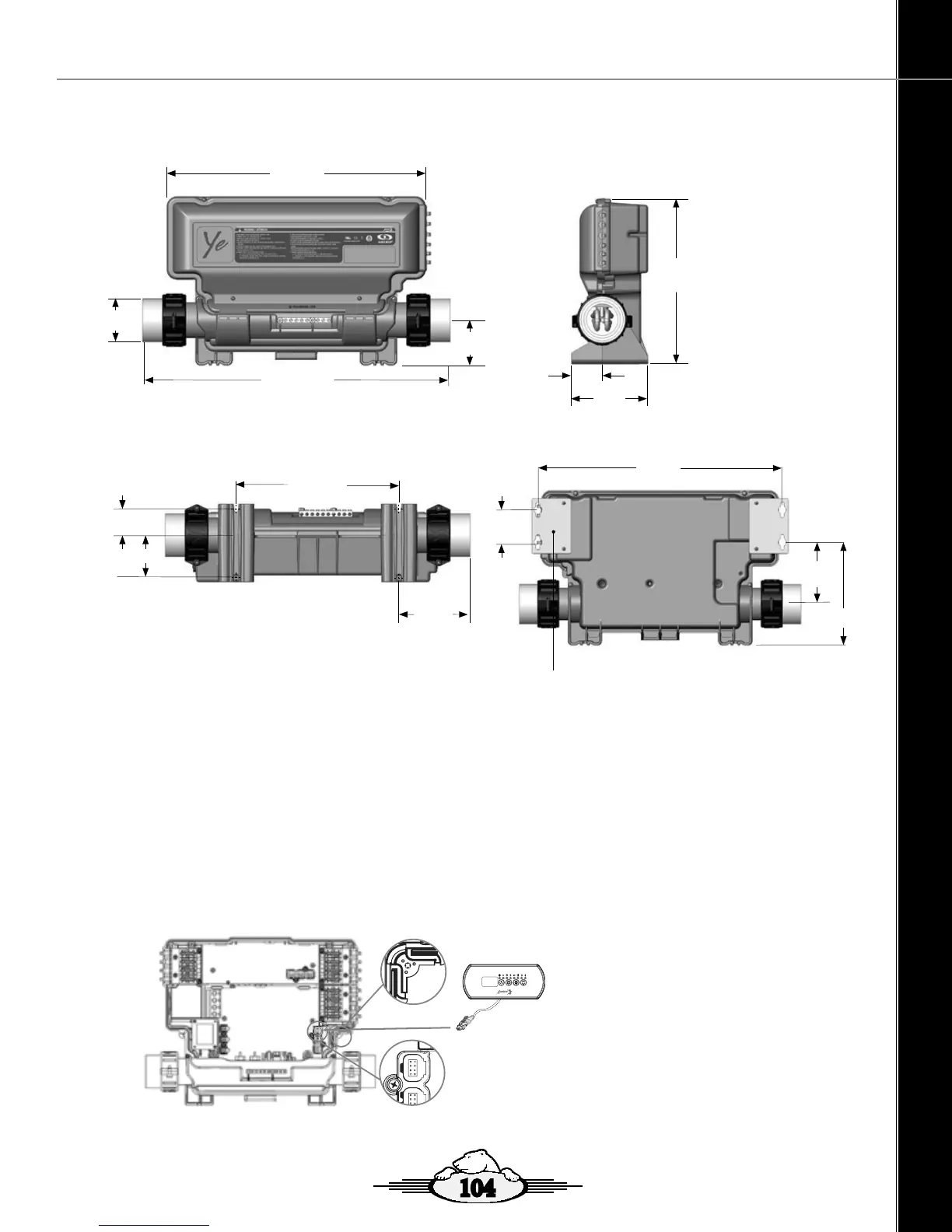

in.ye dimensions
in.ye overview
Ground input
connection
(European
version shown)
heat.wav heater
with in.flo
technology
Watertight strain
relief system
Access to heater
connections
Mounting feet
Industry-standard AMP
connectors for outputs
Enough outputs for all
your spa needs
Light outputs
(1 direct, 1 switched)
Main keypad connector
Communications link
Accessible
bonding lugs
Front view
Side view
4.98"
(126 mm)
2"
(51 mm)
10.75"
(273 mm)
16.55"
(420 mm)
19.60"
(498 mm)
2.88 "
(73 mm)
10.47"
(266 mm)
1.63"
(41 mm)
2.61"
(66 mm)
Bottom view
4.56"
(115 mm)
2.25"
(57 mm)
4.29"
(108 mm)
7. 16"
(182 mm)
Rear view
17"
(431 mm)
Note: Shown with optional wall mouting brackets (see Installation).
Main power
entry connection
2.38 "
(60.3 mm)
3EEõTHEõTECHBOOKõFORõYOURõSPECIlCõKEYPADõMODELõFORõINSTALLATIONõDETAILSõANDõDRILLINGõTEMPLATE
#ONNECTINGõTHEõMAINõKEYPADõTOõTHEõSPAõPACK
4OõCONNECTõTHEõKEYPADõREMOVEõTHEõCOVERõTHENõINSERTõTHEõINLINKõCONNECTORõINTOõTHEõAPPROPRIATEõKEYPADõCONNECTORõ
ASõILLUSTRATEDõ2OUTEõTHEõCABLEõTHROUGHõONEõOFõTHEõMOLDEDõSTRAINõRELIEFõCHANNELSõONõTHEõBOTTOMõRIGHTõSIDEõOFõTHEõSPAõ
PACKõASõILLUSTRATEDõ&ILLõTHEõREMAININGõSPACEõWITHõTHEõFOAMõGASKETSõSUPPLIEDõ$ONTõFORGETõTOõREPLACEõTHEõCOVERõANDõALLõ
SCREWSõTORQUEõTOõõINLBõMAXõ;õ.M=
Note: always shut power down before connecting an accessory to the in.ye or in.yt.
+EYPADõINSTALLATION
KEYPAD
#ONNECTõTHEõ
MAINõKEYPADõASõ
INDICATEDõHEREõ
5
in.ye dimensions
in.ye overview
Ground input
connection
(European
version shown)
heat.wav heater
with in.flo
technology
Watertight strain
relief system
Access to heater
connections
Mounting feet
Industry-standard AMP
connectors for outputs
Enough outputs for all
your spa needs
Light outputs
(1 direct, 1 switched)
Main keypad connector
Communications link
Accessible
bonding lugs
Front view
Side view
4.98"
(126 mm)
2"
(51 mm)
10.75"
(273 mm)
16.55"
(420 mm)
19.60"
(498 mm)
2.88 "
(73 mm)
10.47"
(266 mm)
1.63"
(41 mm)
2.61"
(66 mm)
4.56"
(115 mm)
2.25"
(57 mm)
4.29"
(108 mm)
7. 16"
(182 mm)
17"
(431 mm)
Note: Shown with optional wall mouting brackets (see Installation).
Main power
entry connection
2.38 "
(60.3 mm)
Overview
Owners Manual - Bear Essential Class
104
To Next Page
